Mercedes A1298000483 - ПРОВОД

500 SL USA TO 06/98 129.066

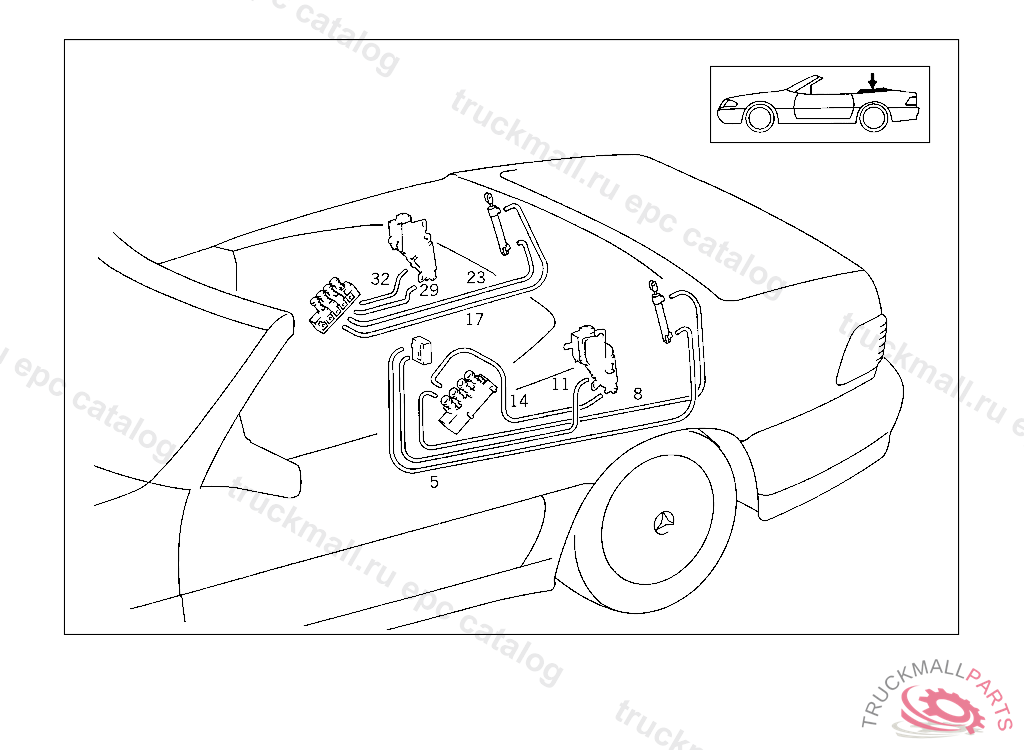

80 HYDRAULIC AND VACUUM SYSTEM - 240 HYDRAULIC LINES USED FOR FOLDING TOP CASE COVER IL. 1

Поз.
Артикул
Описание
5
A1298000883
LINE FROM CONNECTOR ON PARTITION PANEL TO FOLDING TOP CASE CYLINDER,LEFT NO.54
8
A1298000683
LINE FROM LEFT VALVE BLOCK TO FOLDING TOP CASE CYLINDER,LEFT NO.37
11
A1298000483
LINE FROM CONNECTOR ON PARTITION PANEL TO LEFT REAR LOCK NO.24
14
A1298000383
LINE FROM LEFT VALVE BLOCK TO LEFT REAR LOCK NO.23
17
A1298000583
LINE FROM RIGHT VALVE BLOCK TO FOLDING TOP CASE CYLINDER,RIGHT NO.35,F 097251
23
A1298000783
LINE FROM RIGHT VALVE BLOCK TO FOLDING TOP CASE CYLINDER,RIGHT NO.50,F 097251
29
A1298000283
LINE FROM RIGHT VALVE BLOCK TO RIGHT REAR LOCK NO.21
32
A1298000183
LINE FROM RIGHT VALVE BLOCK TO RIGHT REAR LOCK NO.20,F 097251
