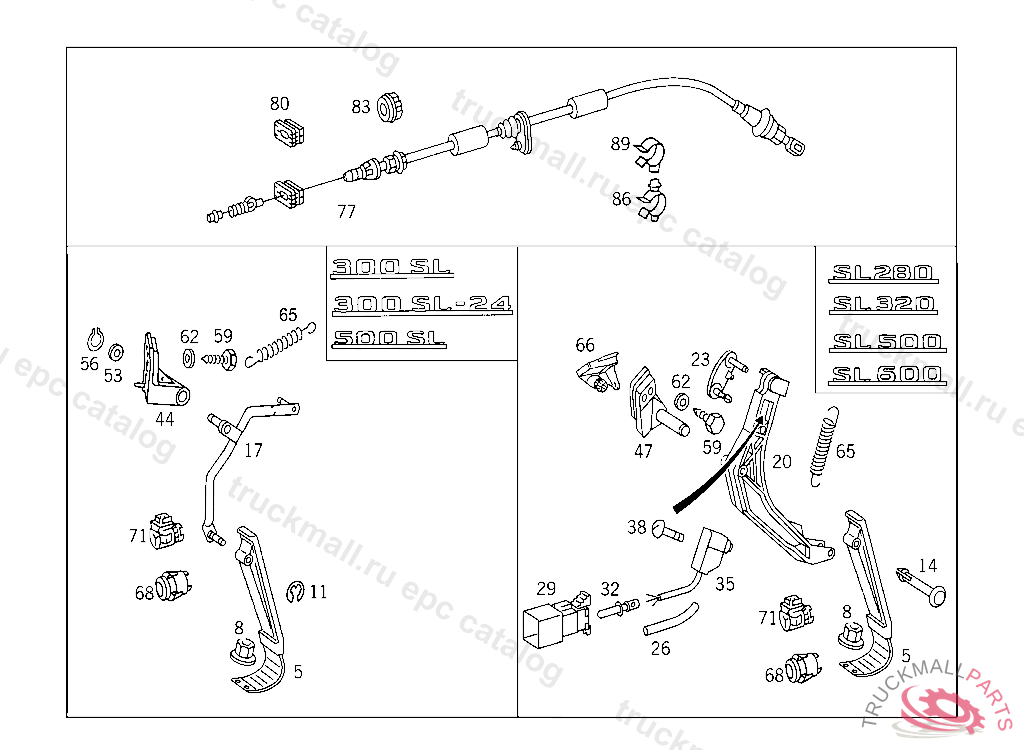

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
5
ACCELERATOR PEDAL , Replaced By: A2203000204
8
NUT , Replaced By: A0039905351
8
NUT , Replaced By: A0039900851
8
NUT MOUNTING FRAME TO SUPPORT M6
8
NUT TRANSMITTER-RECEIVER AEG
14
PIN ACCELERATOR PEDAL TO LEVER
20
LEVER ACCELERATOR PEDAL
20
LEVER , Replaced By: A1293010920, +001A1293010118
20
LEVER ACCELERATOR PEDAL
23
LEVER ,B 838715,J 003393 TO BE ADAPTED DURING ASSEMBLY
26
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
29
PLUG INTERMEDIATE CONNECTOR,STARTING LOCK
32
PLUG PIN0.5-2.0 MM2
35
SWITCH ONLY USED W/ACCELERATION SKID CONTROL (ASR)
38
SCREW ONLY USED W/ACCELERATION SKID CONTROL (ASR)
38
SCREW , Replaced By: A0049906112
47
BEARING ACCELERATOR PEDAL BEARING,B 838715,J 003393
59
SHEET METAL SCREW HEATING PIPE
62
WASHER COMPRESSED AIR LINE TO BRACKET
62
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
65
SPRING ACCELERATOR PEDAL
65
SPRING ACCELERATOR PEDAL,PAG 1631/95N01 , B 50860 , B50861
65
SPRING ACCELERATOR PEDAL TO 124 300 21 25
66
BEARING
71
SWITCH (KICK-DOWN SWITCH)
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
77
WIRE CABLE ,09/95
80
GUIDE
83
RUBBER BUFFER WIRE CABLE TO FIRE WALL, FROM IDENT NO. 941506, P 000001 ALSO INSTALLED ON 899081-941503 ONLY WITH OM601/OM602 ENGINE
999
CLIP CABLE TO BRACKET,5 318121
