Mercedes N304017006016 - Винт M 6 X 16 8.8

SL 500 JAPAN TO 06/98 129.067

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 085 CORRESPONDING CABLE HARNESS, IN APPARATUS CASE

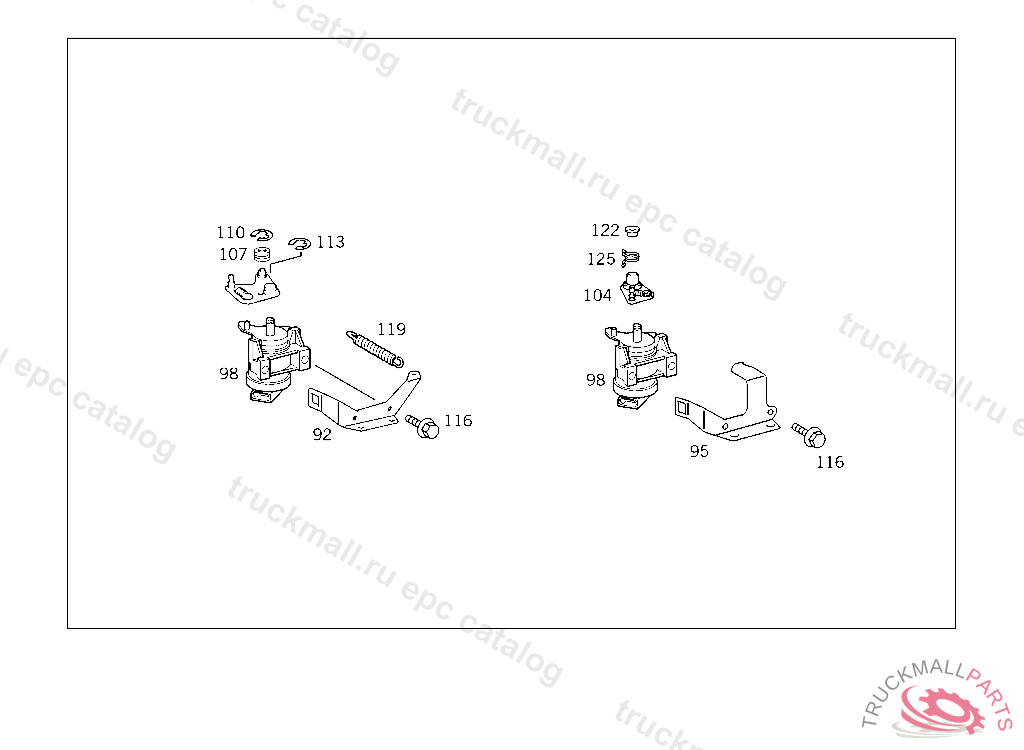

Поз.
Артикул
Описание
92
A1403010240
BRACKET ,A 346275 FROM MODEL YEAR '97
95
A1403010340
BRACKET ,A 346276 ORDER ADDITIONALLY: A 140 300 05 28
98
A0115428717
SENDER UNIT , Replaced By: A0125423317
104
A1403000128
REVERSING LEVER , Replaced By: A1403000528, +001A1403010340
104
A1403000528
REVERSING LEVER , A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
107
A2103010011
ROLLER , NOT USED
110
N006799005009
LOCK PLATE , 656999
113
N006799007007
LOCK PLATE RELEASE LEVER TO SHAFT
116
N304017006016
SCREW PUMP TO BRACKET
119
A6019930810
SPRING INJECTION PUMP CONTROL LEVER
122
A1403010043
CLAMPING PIECE AT REVERSING LEVER,A 346276
125
A1409930620
SPRING AT REVERSING LEVER,A 346276
999
N912007006001
CLIP CABLE TO BRACKET,5 318121
