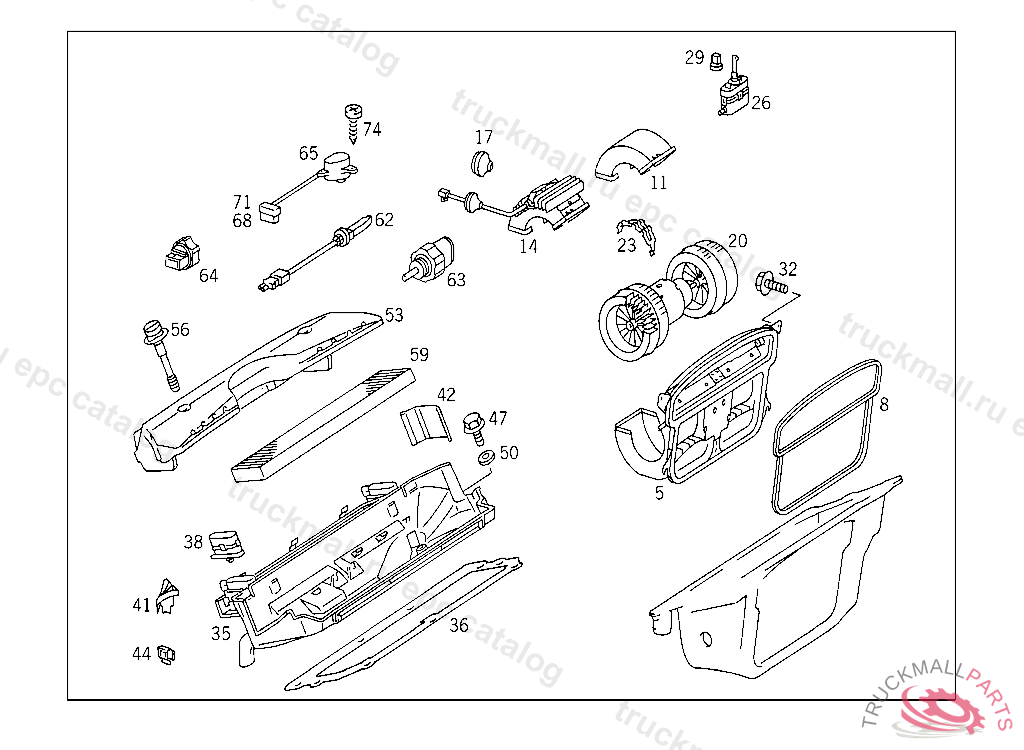

Поз.
Артикул
Описание
5
HOUSING BLOWER
8
SEAL EVAPORATOR CASE TO FIRE WALL
11
COVERING RIGHT
14
SWITCH (BLOWER REGULATOR)
14
SWITCH , Replaced By: A1298209410
14
SWITCH , F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806, Replaced By: A1298213351
17
GROMMETD4/34
20
ELECTRIC MOTOR BLOWER
20
ELECTRIC MOTOR , F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806, Replaced By: A1298209042
23
SPRING
26
ELEMENT CIRCULATING AIR FLAP
29
CLIP , A 183682
32
SCREW
35
WATER BAFFLE , F 148144 ALSO INSTALLED ON VEHICLES WITH CODE 057
35
WATER BAFFLE , F 148144 ALSO INSTALLED ON VEHICLES WITH CODE 057
35
WATER BAFFLE , Replaced By: A1298300628
36
SEAL
38
ELEMENT , ONLY USED WITH AUTOMATIC HEATING
38
ELEMENT , F 125157 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM F 125158 WITH CODE 805
41
CONNECTOR ON WATER BAFFLE
41
CONNECTOR ON WATER BAFFLE
42
COVER ON WATER BAFFLE, F 148144 ALSO INSTALLED ON VEHICLES WITH CODE 057
44
CLIP ELECTRIC CABLE TO SUSPENSION EYE
47
SCREW
50
WASHER
53
AIR INTAKE PIPE
56
SCREW
59
DUST FILTER
62
TEMPERATURE SENSOR OUTBOARD TEMPERATURE FEELER, F 140421 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM F 140422 WITH CODE 806
63
TEMPERATURE SENSOR AT LIQUID TANK, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
64
SENSOR AT LIQUID TANK
65
BLOWER INBOARD TEMPERATURE SENSOR VENTILATION
68
CASE 4-POLE
71
ROUND PIN BUSHING2.5 MM2
74
SCREW BRACKET MOUNTING
