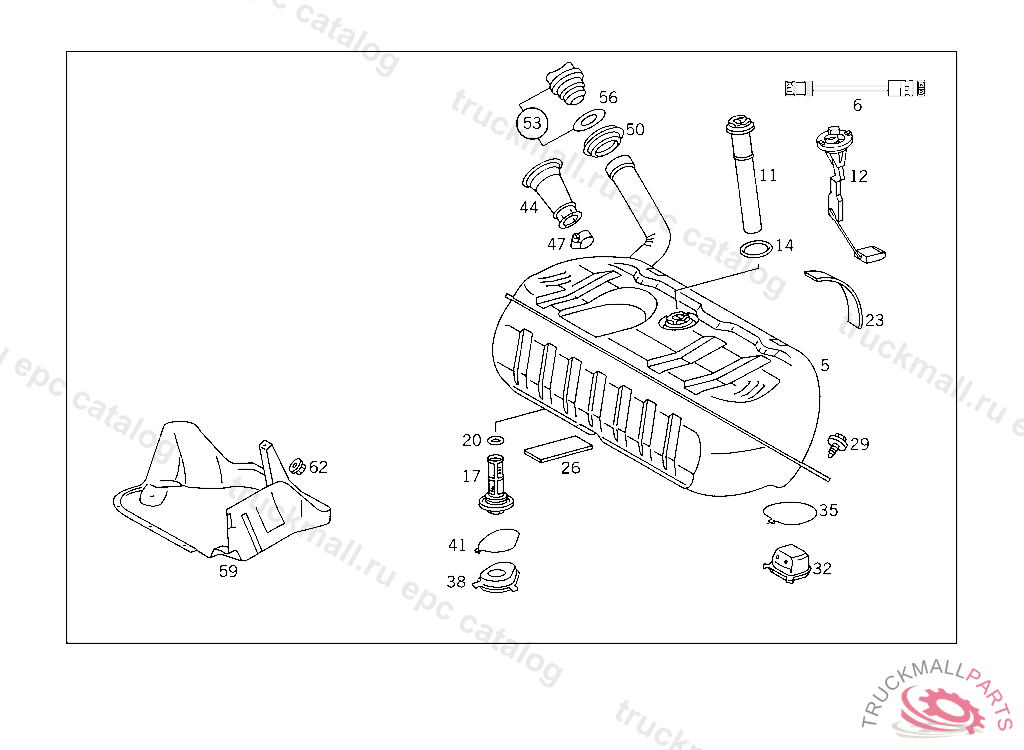

Поз.
Артикул
Описание
5
FUEL TANK ,F 146279
5
FUEL TANK ,F 146278, Replaced By: A1294700701, +001A2104710079, +001A1295408035, +001A1295420717
6
ELECTRIC CABLE ,F 146278
11
GAUGE SENDER UNIT ,F 146278
12
SENDER UNIT ,F 146279
12
SENDER UNIT ,F 146279, Replaced By: A1295420717
12
SENDER UNIT , THE OLD PART MUST NO LONGER BE INSTALLEDF 146279, Replaced By: A1295420817
12
SENDER UNIT ,F 146279, Replaced By: A1295421017
14
SEAL RING , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
14
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
17
FUEL STRAINER PARTS KIT
20
SEAL RING
23
SHIM FUEL TANK FRONT SIDE,LEFT AND RIGHT
26
SHIM FUEL TANK FRONT SIDE,LEFT AND RIGHT
29
SCREW PLUG FUEL TANK TO BODY
32
BOOT LEFT
35
SPRING LEFT
38
BOOT RIGHT
41
SPRING RIGHT
44
COVERING
44
COVERING , Replaced By: A1294710287
47
CLAMP HOSE FASTENING 50-70X13 MM
50
GROMMET FILLER NECK
53
FILLER CAP CENTRAL LOCKING MECHANISM TO 124 470 08 04 / 09 04
56
SEAL RING
59
PROTECTIVE COVER ONLY USED WITH SELF-LEVELLING DEVICE
59
PROTECTIVE COVER NOT USED WITH SELF-LEVELLING DEVICE
62
NUT COVERING TO CAB FIRE WALL
