Поз.
Артикул
Описание

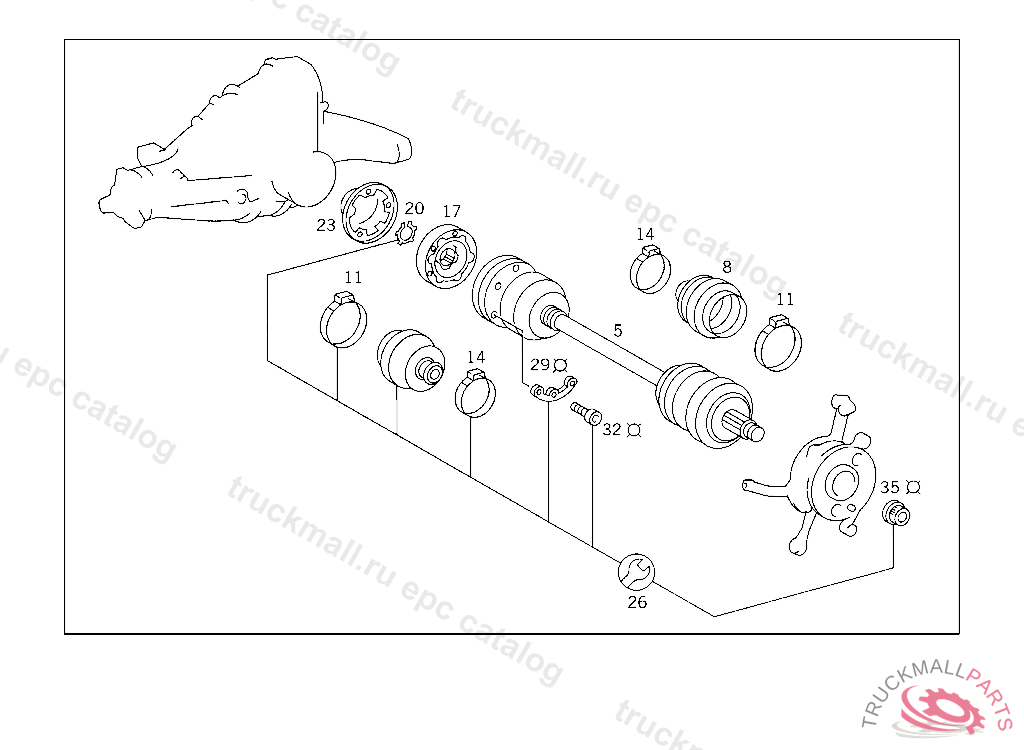

5
AXLE SHAFT ONLY USED WITH ASD OR ASR, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
5
AXLE SHAFT , FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867 UP TO END OF MODEL YEAR'96
5
AXLE SHAFT ONLY USED WITH ASD OR ASR, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
5
AXLE SHAFT , Replaced By: A2203501210
5
AXLE SHAFT , Replaced By: A2203501210
5
AXLE SHAFT USED WITHOUT ASD & ASR, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
5
AXLE SHAFT USED WITHOUT ASD, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
8
BOOT AXLE SHAFT,OUTSIDE BOOT, F 318831 FROM IDENT. NO. F 318830 TO F 322986 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO F 318830 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. F 318831
8
BOOT , Replaced By: A1243570191
8
BOOT , Replaced By: A2023570191
8
BOOT , Replaced By: A2103570191
8
BOOT AXLE SHAFT,OUTSIDE BOOT
8
BOOT AXLE SHAFT,OUTSIDE BOOT,C 241287 FROM IDENT. NO. C 241286 TO C 258983 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO C 241286 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. C 241287
8
BOOT AXLE SHAFT WITH ANNULAR JOINT, OUTSIDE BOOT
11
LOOM TIE MAJOR,C 241287 FROM IDENT. NO. C 241286 TO C 258983 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO C 241286 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. C 241287
11
LOOM TIE
14
LOOM TIE MINOR,C 241287 FROM IDENT. NO. C 241286 TO C 258983 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO C 241286 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. C 241287
14
LOOM TIE MINOR, C 241287,J 085621 FROM IDENT. NO. C 241286,J 085620 TO C 258983,J 092471 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A A WIDTH OF 9 MM USE RANGE OF PARTS FROM IDENT NO. C 241286,J 085620 WITH A A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. C 241287,J 085621
14
LOOM TIE
14
LOOM TIE MINOR
17
JOINT ANNULAR JOINT,INSIDE
20
LOCK RING ANNULAR JOINT ON AXLE SHAFT
23
LOCKING CAP ,B 503880
23
LOCKING CAP , Replaced By: A1243570289
26
REPAIR KIT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296 IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES, Replaced By: A1403500937
26
REPAIR KIT , Replaced By: A1403501137
26
REPAIR KIT , Replaced By: A2103500537
26
REPAIR KIT AXLE SHAFT,INSIDE BOOT, A 256645 FROM IDENT. NO. A 256645 TO A 266015 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO A 256645 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. A 256646
26
REPAIR KIT AXLE SHAFT,INSIDE BOOT, FROM MODEL YEAR'97
26
REPAIR KIT AXLE SHAFT,INSIDE BOOT, F 318831 FROM IDENT. NO. F 318830 TO F 322986 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO F 318830 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. F 318831
26
REPAIR KIT AXLE SHAFT,INSIDE BOOT, A 256645 FROM IDENT. NO. A 256645 TO A 266015 MEASURE THE WIDTH OF THE HOSE CLAMP. WITH A WIDTH OF 9 MM USE RANGE OF PARTS UP TO IDENT NO A 256645 WITH A WIDTH OF 7 MM USE RANGE OF PARTS FROM IDENT NO. A 256646
29
WASHER AXLE SHAFT TO INTERIOR FLANGE
32
SCREW AXLE SHAFT TO INTERIOR FLANGE
32
SCREW , Replaced By: A0019907112
35
NUT , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296 IMPORTANT: OBSERVE CHANGED TIGHTENING TORQUES, Replaced By: A1403570572
35
NUT AXLE SHAFT TO REAR AXLE SHAFT FLANGE
