300 SE 3.2 / S 320 STANDARD
140.032
47 FUEL SYSTEM
001 FUEL SYSTEM USED WITH AIR POLLUTION CONTROL (FOR TYPES 129, 140 SEE STANDARD VER

Mercedes N007985005175 - Болт

300 SE 3.2 / S 320 STANDARD 140.032

47 FUEL SYSTEM - 001 FUEL SYSTEM USED WITH AIR POLLUTION CONTROL (FOR TYPES 129, 140 SEE STANDARD VER

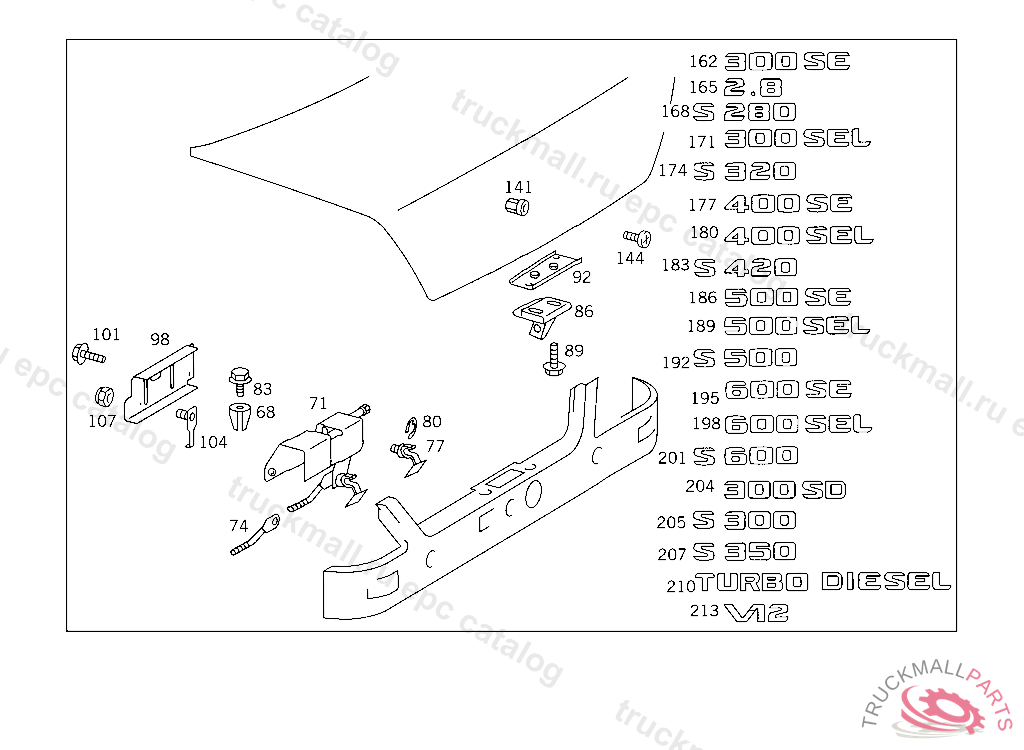

Поз.
Артикул
Описание
68
A1409900392
RIVET PLATE WITH THREADED HOLES
71
A1407500284
FASTENER
74
A1407580223
ROD
77
A1407580333
FOLLOWER
80
N006799005002
LOCK PLATE PIN TO CLUTCH SLAVE CYLINDER BOOT, Replaced By: N006799005004
80
N006799005004
CIRCLIP PIN TO CLUTCH SLAVE CYLINDER BOOT
83
A2029840729
SCREW LOCKING CLAMP TO REAR LID
86
A1407500132
BRACKET
89
A2029840729
SCREW LOCKING CLAMP TO REAR LID
92
A1407500211
PLATE
98
A1407500225
COVERING USED WITH INFRA-RED CLOSING SYSTEM
98
A1407500125
COVERING USED WITHOUT INFRA-RED CLOSING SYSTEM
101
N914126005001
SCREW OIL LINE TO TRANSFER CASE
104
A1407580214
BRACKET COVERING TO REAR BODY PANEL
107
N913011005000
NUT VOLTAGE TRANSFORMER TO MOUNTING PLATE
141
A1249900258
NUT REAR LICENSE PLATE
144
N007985005175
SCREW HOOK TO BRACKET
162
A1408170615
TYPE DESIGNATION ON REAR LID,ADHESIVE 300SE,A 151344
174
A1408173215
TYPE DESIGNATION ON REAR LID,ADHESIVE "S320",A 151345
