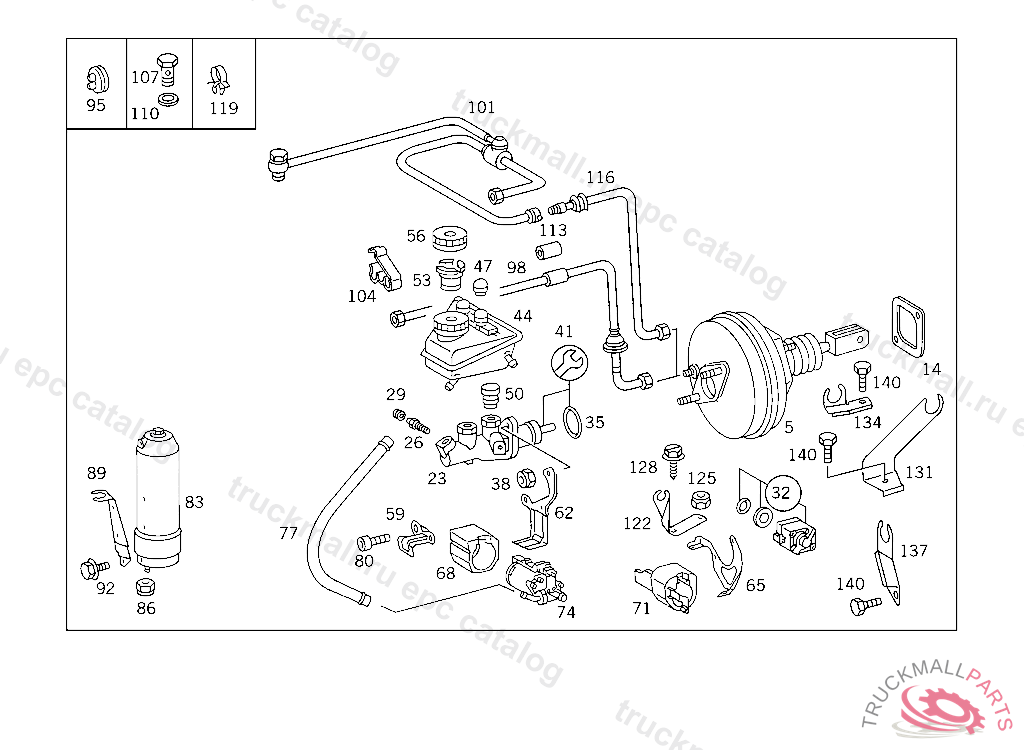

Поз.
Артикул
Описание
5
BRAKE BOOSTER ASSEMBLY
5
BRAKE BOOSTER ASSEMBLY , Replaced By: A0044306530
14
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
23
BRAKE MASTER CYLINDER , FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867 A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
23
BRAKE MASTER CYLINDER , DELIVER ADDITIONALLY: SCREW PLUG 126 997 02 32
23
BRAKE MASTER CYLINDER , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057
35
SEAL RING
35
SEAL RING
38
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
38
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
41
REPAIR KIT BRAKE MASTER CYLINDER
44
RESERVOIR
44
RESERVOIR BRAKE MASTER CYLINDER
44
RESERVOIR , FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867 UP TO MODEL YEAR '97
44
RESERVOIR , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057 ORDER WHEN USING CASE OR STRAINER
44
RESERVOIR , FROM MODEL YEAR '98 ORDER WHEN USING CASE OR STRAINER
47
PROTECTIVE CAPGIRLING
50
BUSHING
50
BUSHING , Replaced By: A0004311550
53
STRAINER
56
COVER , Replaced By: A0004307514
56
COVER , Replaced By: A2024300014
56
COVER
59
BRACKET TOP
62
BRACKET
65
BRACKET BOTTOM, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
68
RUBBER BUFFER BRAKE MASTER CYLINDER
71
RUBBER BUFFER , UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
74
PUMP
77
HOSE , Replaced By: A0099973882
77
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
77
HOSE , UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
80
SCREW DOOR HANDLE TO DOOR
83
ACCUMULATOR
83
ACCUMULATOR , Replaced By: A0004300594
83
ACCUMULATOR , Replaced By: A0004301094
86
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
89
BRACKET
92
SCREW
95
GROMMET
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY, A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY, FROM MODEL YEAR '98
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY,A 236526 A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
98
LINE FROM INTAKE MANIFOLD TO BRAKE BOOSTER ASSEMBLY
98
LINE , Replaced By: A1404301129
113
RUBBER RING PROTECTION AGAINST SCORING FOR PIPE LINE
113
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
122
BRACKET VACUUM LINE TO WHEEL ARCH
125
NUT , Replaced By: N913023005002
125
NUT RELAY TO BRACKET M5
128
SHEET METAL SCREW SEAT HEATER CONTROL TO CROSS MEMBER AND TO FRONT SEAT
131
BRACKET
134
BRACKET
134
BRACKET ,A 236526
137
BRACKET
140
SCREW COVER PLATE TO COVER PLATE M 6 X 10
140
SCREW , Replaced By: N304017006034
