Поз.
Артикул
Описание

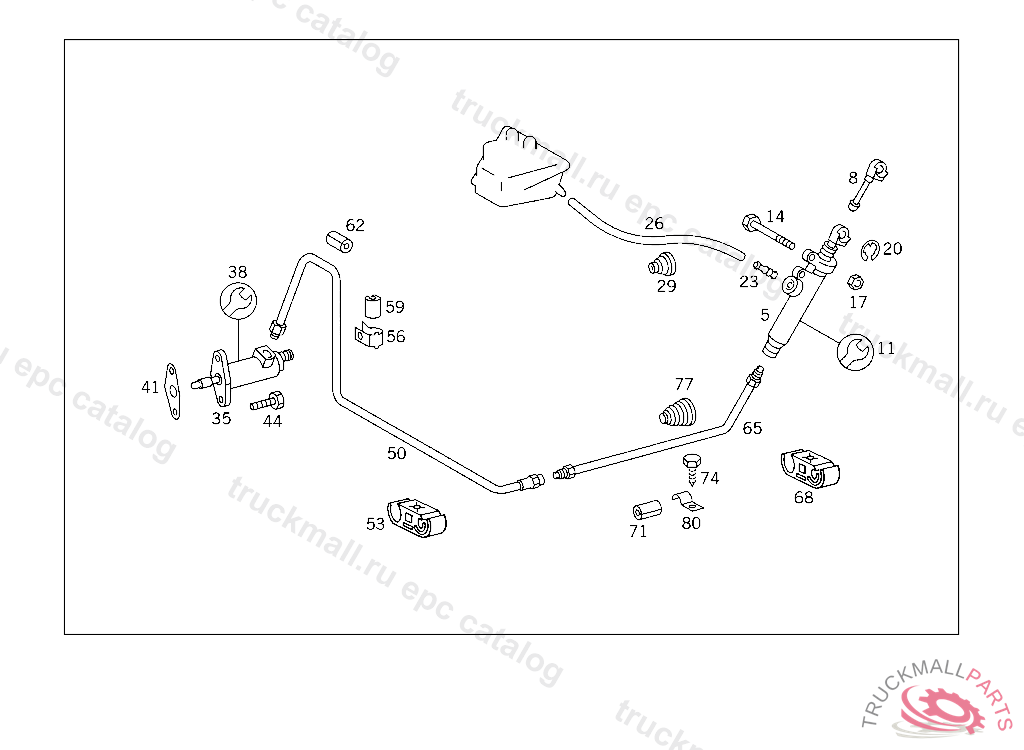

5
MASTER CYLINDER. CYLINDER
5
MASTER CYLINDER , Replaced By: A2022900112
8
RODTO 001 295 31 06, A 050827 F 003714
11
REPAIR KIT MASTER CYLINDER TO 001 295 31 06,68 06, A 050827 F 003714
14
SCREW , Replaced By: N304017006026
17
NUT BATTERY MOUNTING
17
NUT CYLINDER TO BRACKET TO0002902112
20
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
23
INTERMEDIATE PIECE REFILLING LINE TO MASTER CYLINDER
26
HOSE FROM RESERVOIR TO MASTER CYLINDER 270MM
29
BOOT
35
SLAVE CYLINDER , USED WITH TRANSMISSION: GL 76/27, 717.445
35
SLAVE CYLINDER , Replaced By: A2022900011
38
REPAIR KIT SLAVE CYLINDER TO 2012900311,0002958207
41
SHIM , Replaced By: A1242950087
41
SHIM SLAVE CYLINDER TO TRANSMISSION CASE
44
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
44
SCREW , Replaced By: N304017008027
50
PIPE CLUTCH LINE, 103.942 0 019878 602.961 0 005939
53
CLAMP CLUTCH LINE IN LEGROOM
56
BRACKET PIPE LINE TO BELL HOUSING
59
BUSHING PIPE LINE TO BELL HOUSING
62
HOSE30 MM, ORDER BY THE METER
65
LINE FROM CLUTCH MASTER CYLINDER TO CLUTCH SLAVE CYLINDER, TO BE ADAPTED DURING ASSEMBLY
65
LINE , Replaced By: A1003204153
68
CLAMP CLUTCH LINE IN LEGROOM
71
HOSE30 MM, ORDER BY THE METER
74
SCREW
77
BOOT FLEXIBLE SHAFT THRU FIRE WALL
80
CLAMP
