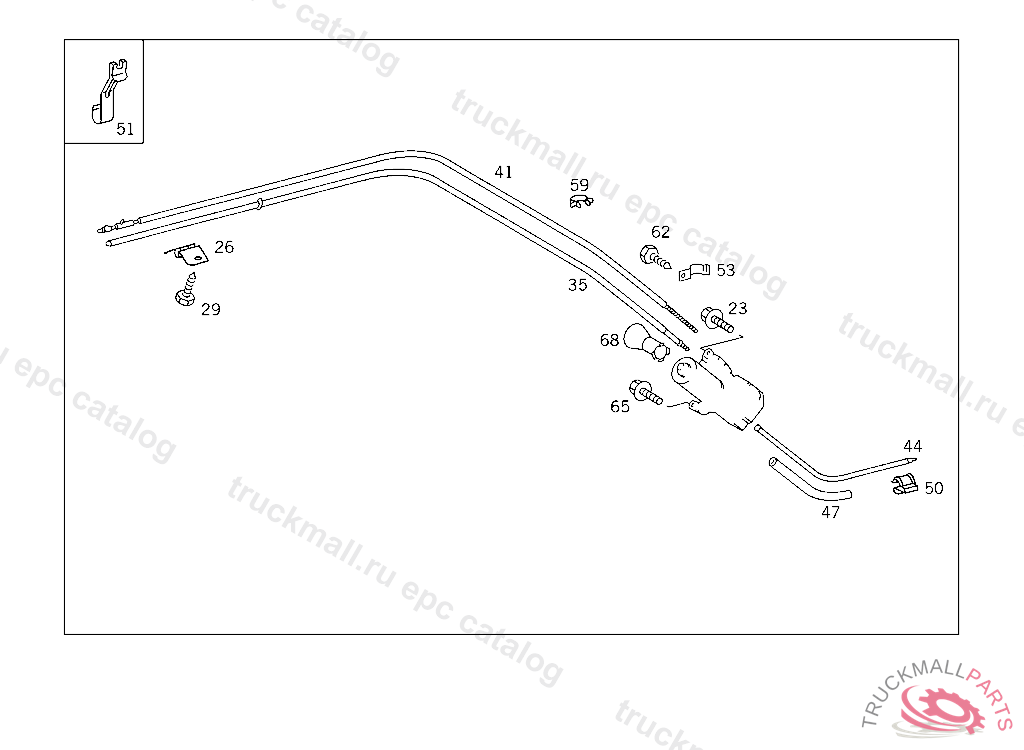

Поз.
Артикул
Описание
23
SCREW , 183 003776 190 004444
26
SHACKLE AT TRANSPORT BRIDGE
29
SCREW
35
TUBE FROM MOTOR TO SLIDING ROOF PLATE
41
CABLE FROM MOTOR TO SLIDING ROOF PLATE
41
CABLE MOTOR TO COVER, WITH GLASS SLIDING ROOF ANTI-MAGNETIC
44
TUBE AT MOTOR
47
INSULATION150 MM, TO BE ADAPTED DURING ASSEMBLY
50
CLIP CABLE HARNESS TO ROOF RAIL
51
CLIPWASSERABLAUFSCHLAUCH AN A-SAEULE
53
CLAMP TUBE TO REAR PILLAR
59
CLAMP
59
CLAMP , Replaced By: A0009955244
62
SHEET METAL SCREW BRACKET TO CAB FLOOR
65
SCREW , 183 003776 190 004444
68
GUIDE EMERGENCY CONTROL
