Поз.
Артикул
Описание
5
STEER. COLUMN JACKET TUBE OUTSIDE
5
STEER. COLUMN JACKET TUBE OUTSIDE,A 235276
8
BRACKET BRACKET TO STEERING COLUMN JACKET TUBE
8
BRACKET , Replaced By: A1294600835
11
BUSHING BRACKET TO STEERING COLUMN JACKET TUBE
14
PIN , Replaced By: A1294620574
14
PIN , Replaced By: A2104620374
14
PIN BRACKET TO STEERING COLUMN JACKET TUBE
17
NUT COVERING TO RAIL
20
SCREW STEERING COLUMN JACKET TUBE TO CROSS MEMBER
23
STEER. COLUMN JACKET TUBE INSIDE,A 123447
23
STEER. COLUMN JACKET TUBE , Replaced By: A2104600516
23
STEER. COLUMN JACKET TUBE , Replaced By: A2104604216
23
STEER. COLUMN JACKET TUBE INSIDE MIT LENKSPINDEL OBEN,A 123446
26
BALL BEARING
29
DISC SPRING
30
SNAP RING , F264121
32
RING , C 014018 J 016700
32
RING
35
LOCK
38
NUT
41
RING
44
SNAP RING
47
NUT LOWER STEERING SHAFT TO UPPER STEERING SHAFT,A 080134
47
NUT ,A 080133, Replaced By: A1404620372, +001A1404620473
50
LOCK ,A 080133, Replaced By: A1404620473, +001A1404620372
50
LOCK , Replaced By: A2104620073
50
LOCK LOWER STEERING SHAFT TO UPPER STEERING SHAFT,A 080134
53
STEERING SHAFT BOTTOM,A 166260
53
STEERING SHAFT BOTTOM,A 166259
56
BOOT
59
SEAL RING ,A 166259
59
SEAL RING ,A 166260
62
BEARING RING
65
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
68
SCREW
71
THRUST WASHER , Replaced By: A1244600422
71
DISC SPRING , Replaced By: A1244600422
71
CLAMPING PIECE INSIDE STEERING COLUMN JACKET TUBE IN OUTSIDE STEERING COLUMN JACKET TUBE
80
LOCK RING21 MM
83
ELECTRIC MOTOR HEIGHT ADJUSTMENT
86
SCREW
89
SENDER UNIT
92
COVER
92
COVER
95
SPRING
101
ELECTRIC MOTOR FORE AND AFT ADJUSTMENT
101
ELECTRIC MOTOR FORE AND AFT ADJUSTMENT
101
GEARING , Replaced By: A1295400488
101
GEARING , Replaced By: A1295400788
104
PIN
107
LOCK HOSE FASTENING
110
WASHER , Replaced By: N000125008443
110
SPACER WASHER , Replaced By: N000125008418
113
SCREW GRIP RAIL MOUNTING M 8 X 25
116
SPACER TUBE
119
COMBINATION BOLT
122
LOCK WASHER PARKING BRAKE VALVE TO WINDOW SILL
125
SCREW STEERING COUPLING TO STEERING SHAFT, LESS PARAMETRIC STEERING 1 A 033659 2 A 031993 WITH PARAMETRIC STEERING A 033950A 166259
125
SCREW STEERING SHAFT BEARING TO CAB M 8X30,5 191030
126
SCREW , Replaced By: A2109900604
126
SCREW STEERING COUPLING TO STEERING GEAR,A 166260
127
NUT STEERING COUPLING TO STEERING GEAR,A 166260
131
BRACKET , ONLY APPLICABLE TO ELECTRICALLY ADJUSTABLE STEERING COLUMN C 014018 J 016700
134
SCREW OIL TANK TO BRACKET
137
WASHER BRACKET TO HEAT SHIELD
140
COVERING ,A 122640
140
COVERING ,A 122641
143
COVERING PANELLING TO STEERING COLUMN JACKET TUBE, NO.9045 INO.5070 INO.8310 INO.8310 INO.8F94 I....... INO.3111 INO.7C23 I....... I I A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806
146
COVER , NO.9051 INO.5076 I....... INO.8316 INO.8F88 I....... I....... INO.7102 I....... I
146
COVER , A 192209 ALSO INSTALLED ON A 159651 - A 192207 WITH CODE 856 A 328810 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE FROM A 328811 WITH CODE 806 NO.9051 INO.5076 INO.8316 INO.8316 INO.8F95 I....... INO.3112 INO.7102 I....... I
999

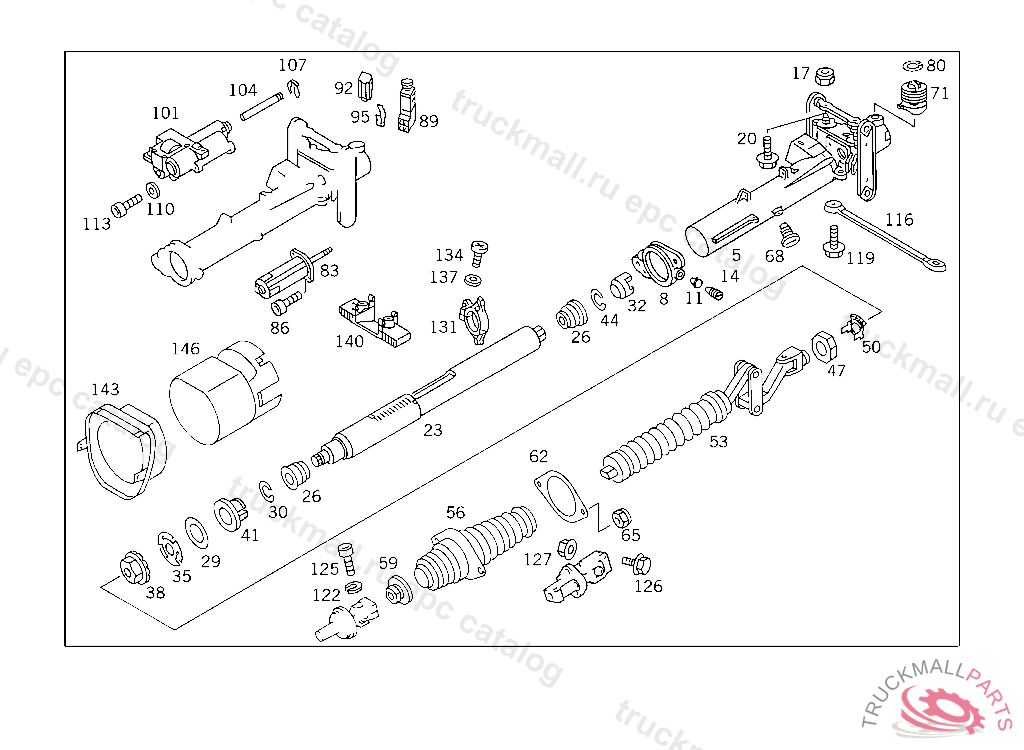

STEER.COLUMN JACKET TUBE
