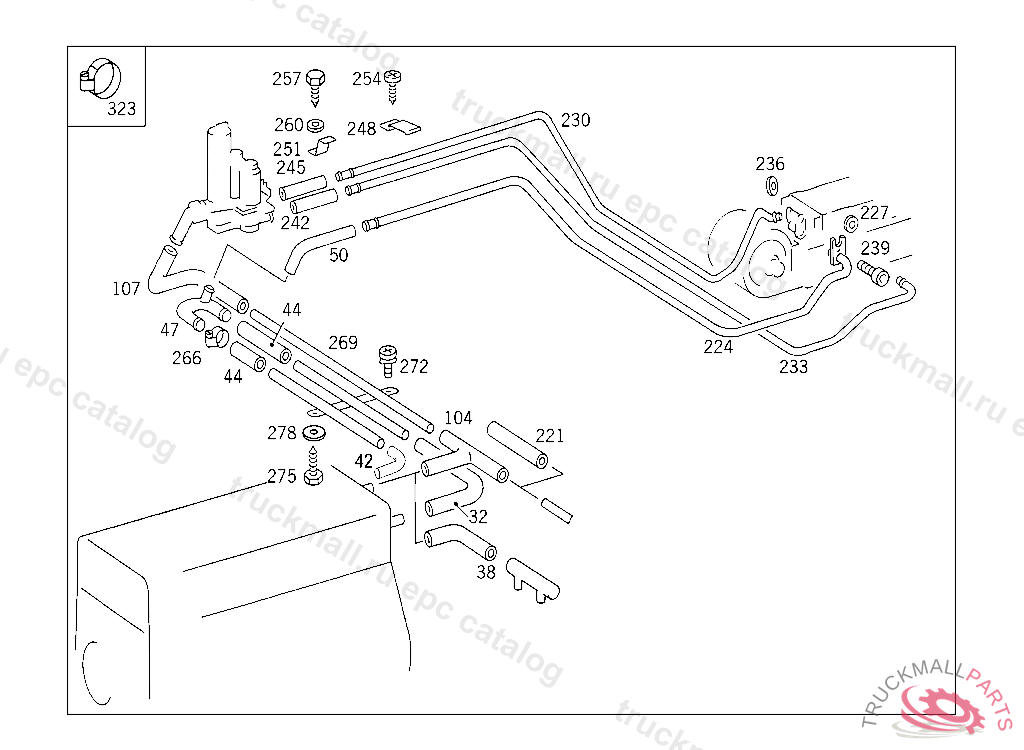

Поз.
Артикул
Описание
32
HOSE FROM ENGINE TO FEED LINE
38
HOSE FROM ENGINE TO FEED LINE
38
HOSE , Replaced By: A1408321288
44
HOSE FEED LINE
47
PIPE LINE FEED LINE
50
HOSE FEED LINE
104
HOSE FROM RETURN LINE TO ENGINE
104
HOSE
107
HOSE FROM RETURN LINE TO ENGINE
224
PIPE LINE REAR SPACE HEATING, FEED
227
RING
230
PIPE LINE REAR SPACE HEATING, RETURN
233
PIPE LINE REAR SPACE HEATING, RETURN
236
RING
239
SCREW SOLENOID VALVE TO VALVE
242
HOSE
245
HOSE
248
BRACKET AT REFRIGERANT LINE,FOR REAR SPACE HEATING
251
BRACKET AT REFRIGERANT LINE,FOR REAR SPACE HEATING
254
SHEET METAL SCREW FUEL STRAINER SCREEN TO FUEL TANK
257
SHEET METAL SCREW AT REFRIGERANT LINE,FOR REAR SPACE HEATING
260
WASHER COMPRESSED AIR LINE TO BRACKET
266
HOSE CLAMP LINE MOUNTING
269
PIPE LINE RIGHT HAND PIPING TO PARTITION PANEL
272
COMBINATION BOLT FRONT FENDER TO SIDE MEMBER
275
SHEET METAL SCREW , NOT USED
278
WASHER COMPRESSED AIR LINE TO BRACKET
323
HOSE CLAMP LINE MOUNTING
323
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
323
HOSE CLAMP8-16
323
CLAMP , Replaced By: A0059970190
323
CLAMP , Replaced By: A0059970190
323
CLAMP , Replaced By: N000000000667
323
CLAMP PRESSURE REGULATOR
