Mercedes A0165451428 - ШТИФТ ШТЕКЕРА

500 SE JAPAN, S 500 JAPAN 140.050

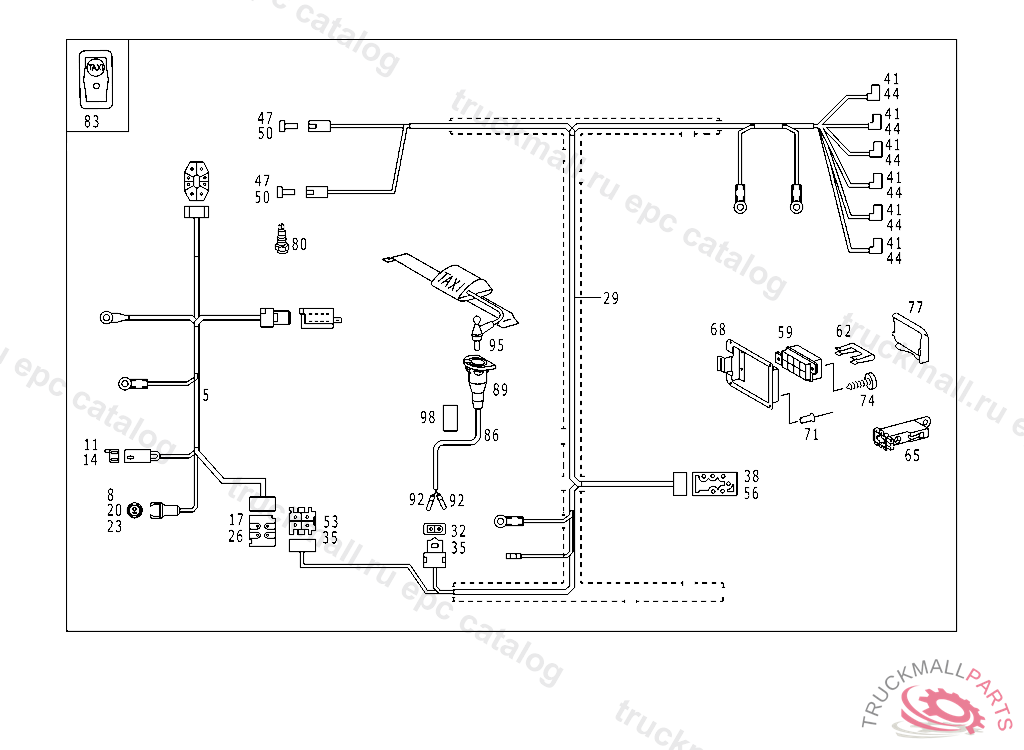

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 085 CORRESPONDING CABLE HARNESS, IN APPARATUS CASE

Поз.
Артикул
Описание
8
A0008210334
SPRING
11
A0045452226
CONTACT SPRING , Replaced By: A0115458326
14
A0115458326
CONTACT SPRING
17
A0165451428
PLUG PIN0.5-2.0 MM2
20
A0008213326
PLUG HOUSING BIPOLAR
23
A1268210497
HOSE ,2/89 (126. A 471001)
26
A0235455228
PLUG HOUSING
32
A0125458628
PIN BUSHING HOUSING TELL-TALE LAMP ASD
35
A0025455226
PLUG SOCKET , Replaced By: A0025452926
38
A0025450926
ROUND PIN BUSHING , Replaced By: A0025459926
41
A0005468340
CABLE SHOE. PIN BUSHING PRESSURE SWITCH
44
A0005461145
INSULATING SLEEVETO 000 546 83 40
47
A0025451526
PLUG SOCKETTO 001 545 87 28
50
A0015458728
PIN BUSHING HOUSING BIPOLAR
53
A0175451628
PIN BUSHING HOUSING CONTROL UNIT OF COMFORT CONTROL
56
A0215450428
PIN BUSHING HOUSING CENTRAL LOCKING MECHANISM INTERIOR CONTROL
59
A2028200049
FUSE BOX
62
A0005452202
CONTACT RAIL
65
A0215453728
PLUG FUSE BOX "O"
71
N910001003102
RIVET TYPE PLATE TO FIRE WALL, ON VEHICLES HAVING NO MERCEDES BENZ BODY FROM IDENT NO. 083917 FOR USE WITH MERCEDES-BENZ BODY FROM IDENT NO. 083304 ALSO INSTALLED ON 083942.
89
A0125458428
PLUG HOUSING
92
A0115451628
PLUG PIN
