Главная
›
Mercedes
›
CAR
›
500 SE JAPAN, S 500 JAPAN
›
140.050
›
50 RADIATOR
›

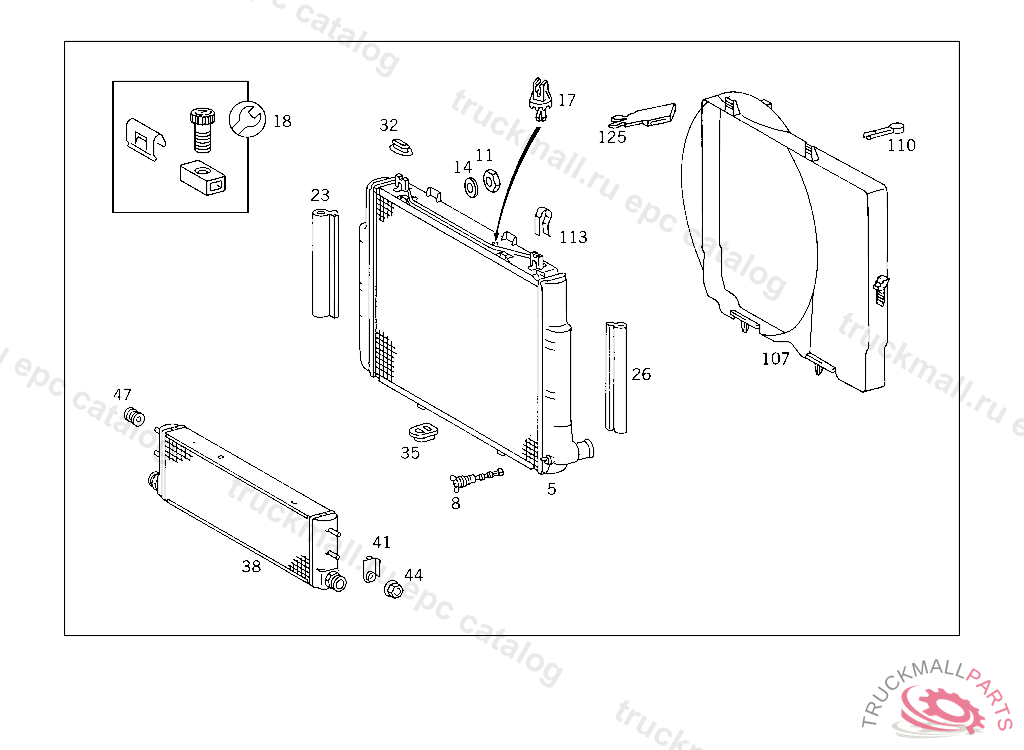

015 RADIATOR,MOUNTING,AND COVERING IL. 1
Mercedes A1405001403 - РАДИАТОР
500 SE JAPAN, S 500 JAPAN 140.050
50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 1
Поз.
Артикул
Описание
5
A1405001403
RADIATOR
8
A0005000185
SCREW WATER DRAIN
8
A2015000085
SCREW , Replaced By: A0005000185
11
A0009902450
NUT TOP
17
A1262760840
BRACKET
20
A0005000603
REPAIR KIT
23
A1405051186
BOOT FRONT CENTRAL STIFFENING 100 MM, ORDER BY THE METER
26
A2015050986
BOOT (CONNECTING LEDGE), ORDER BY THE METER
29
A2015054186
BOOT706 MM, ORDER BY THE METER
32
A1405040312
RUBBER MOUNTING RADIATOR TO CENTRAL STIFFENING
35
A1405040512
RUBBER MOUNTING RADIATOR TO SUPPORT
80
A1405000000
OIL COOLER
83
A1405040141
BRACKET ENGINE OIL COOLER
86
A0039905351
NUT MOUNTING FRAME TO SUPPORT M6
89
A1409971781
GROMMET OIL COOLER TO BRACKET
152
A1405000255
FAN SHROUD
155
A1405050073
LOCK FAN SHROUD
158
A1235040246
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
158
A1295040135
CLIP , Replaced By: A1235040246
164
A1405050015
INTERMEDIATE PIECE ONLY FOR USE WITH AIR CONDITIONER,A 006943
999
A0005010176
WASHER WATER DRAIN
