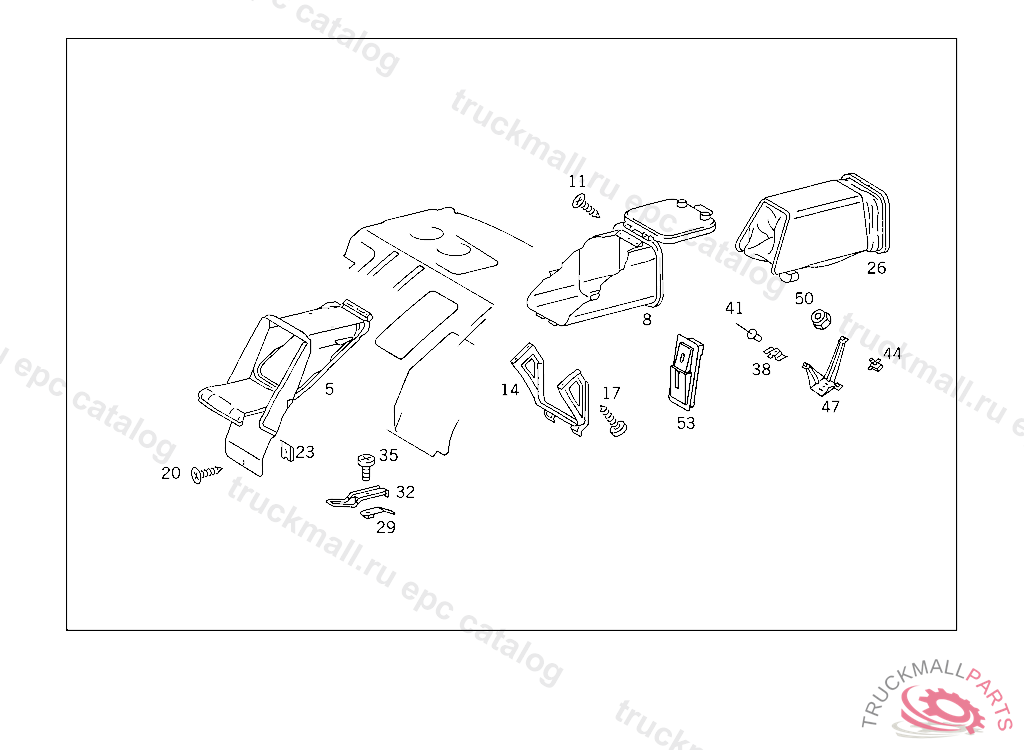

500 SE JAPAN, S 500 JAPAN - 140.050 - 92 REAR SEAT BENCH
Поз.
Артикул
Описание
5
TAKE-UP DEVICE FRONT
8
TAKE-UP DEVICE REAR
11
SHEET METAL SCREW FOOTREST
11
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
14
CONSOLE
17
SHEET METAL SCREW
17
SHEET METAL SCREW MODULE TO HOUSING
20
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
23
LOCK COVERING TO INSTRUMENT PANEL,TOP
26
CONTAINER
29
LATCH CROSS MEMBER BELOW REAR SEAT
32
BUFFER
32
BUFFER REAR SINGLE SEAT
35
SCREW
38
CLIP REAR PANEL
41
RIVET
44
SCREW BRACKET TO REAR PANEL
47
CONSOLE EXPANSION TANK
50
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
53
BRACKET REAR PANEL
