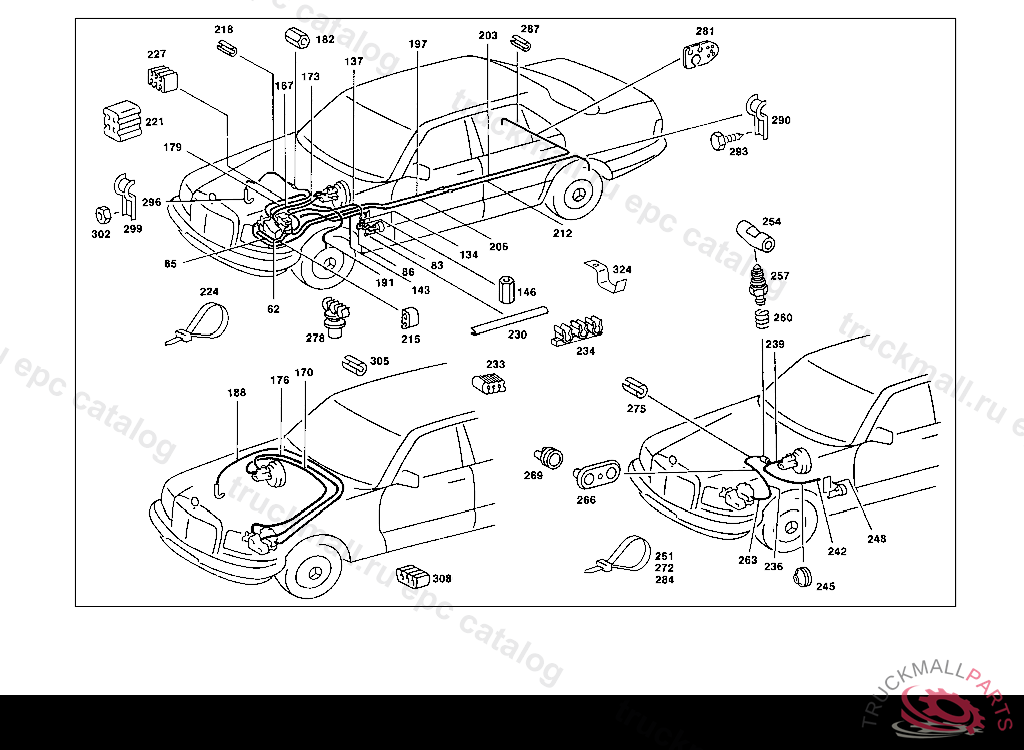

Поз.
Артикул
Описание
62
LINE FROM ABS HYDRAULIC UNIT SUCTION END TO ASR HYDRAULIC UNIT SUCTION END
65
LINE , Replaced By: A1234205628
65
LINE FROM DISTRIBUTOR TO REAR LEFT BRAKE HOSE
83
LINE FROM PUMP TO ADAPTER FITTING
86
LINE FROM PUMP TO ACCUMULATOR
134
LINE FROM ACCUMULATOR TO ADAPTER FITTING
137
LINE FROM ADAPTER FITTING TO ACCELERATION SKID CONTROL HYDRAUL. UNIT,CONNECTION: "E"
143
LINE FROM ADAPTER FITTING TO ADAPTER FITTING
146
ADAPTER FITTING BETWEEN THE LINES
167
LINE FROM REAR MASTER CYLINDER TO A B S HYDRAULIC UNIT
170
LINE FROM REAR MASTER CYLINDER TO A B S HYDRAULIC UNIT
170
LINE , Replaced By: A1244203129
173
LINE FROM FRONT MASTER CYLINDER TO ASR HYDRAULIC UNIT
176
LINE FROM FRONT MASTER CYLINDER TO ASR HYDRAULIC UNIT
179
LINE FROM ABS HYDRAULIC UNIT TO ADAPTER FITTING
182
ADAPTER FITTING BETWEEN THE LINES
188
LINE FROM HYDRAULIC UNIT TO RIGHT FRONT WHEEL
191
LINE FROM HYDRAULIC UNIT TO LEFT FRONT WHEEL
197
LINE FROM HYDRAULIC UNIT TO ADAPTER FITTING,REAR RIGHT
203
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR RIGHT
203
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR RIGHT
203
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR RIGHT
203
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR RIGHT
206
LINE FROM HYDRAULIC UNIT TO ADAPTER FITTING,REAR LEFT
212
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR LEFT
212
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR LEFT
212
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR LEFT
212
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR LEFT
212
LINE , Replaced By: A1074209528
215
RUBBER PAD , 000 130185 003 066450 007 053317 083 002303 086 001761 093 001873 102,103 113214 105 135078 183 004048 190 005028, Replaced By: A1234280085, +001A1239950222
218
BUFFER
218
RUBBER PAD , Replaced By: A1263280181
221
SHIM , Replaced By: A2023280084
221
SHIM BRAKE LINE TO LEFT FRONT WHEELHOUSE PANEL
224
LOOM TIE , Replaced By: A0019974390
224
LOOM TIE TO MOUNT PLASTIC PIPING
227
DAMPING STRIP BRAKE LINE TO LEFT FRONT WHEELHOUSE PANEL
230
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
230
EDGE GUARD SECTION , Replaced By: A0029873572
230
EDGE GUARD SECTION SEAT, Replaced By: A0019872272
233
DAMPING STRIP
234
CLAMP SPACING OF BRAKE LINES
236
BRAKE HOSE WITH T-FITTING, FROM FLUID RESERVOIR TO SUCTION AND RETURN LINES
236
BRAKE HOSE WITH T-FITTING, FROM FLUID RESERVOIR TO SUCTION AND RETURN LINES
239
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
239
HOSE , Replaced By: A0099973882
242
SUCTION LINE
245
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
248
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
248
HOSE , Replaced By: A0099973882
251
LOOM TIE
254
ADAPTER FITTING
257
BLEEDER VALVE
260
PROTECTIVE CAP ,5 962906
263
BRAKE HOSE RETURN FROM ACCELERATION SKID CONTROL HYDRAULIC UNIT TO T-FITTING
266
GROMMET TO SEAL ACCELERATION-SKID-CONTROL DELIVERY LINE
266
GROMMET , Replaced By: A1269976281
269
GROMMET
272
LOOM TIE TO MOUNT PLASTIC PIPING
275
HOSE4.5X10X900MM
275
HOSE BRAKE LINE TO FIRE WALL, B 921355 J 007220
275
HOSE , Replaced By: A2014761126
278
CLAMP
281
DAMPING STRIP SPACING OF LINES IN WHEEL ARCH
284
LOOM TIE , Replaced By: A0019974390
284
LOOM TIE TO MOUNT PLASTIC PIPING
287
RUBBER PAD , Replaced By: A1263280181
287
BUFFER
290
CLAMP FORKED SUPPORT,TOP
293
SHEET METAL SCREW VALVE TO WINDOW SILL
296
HOSE HAND BRAKE VALVE BLEEDING, ORDER BY THE METER
299
CLAMP FORKED SUPPORT,TOP
302
NUT COVERING TO CAB FIRE WALL
305
HOSE
308
SHIM BRAKE LINE TO LEFT FRONT SIDE MEMBER
324
CLAMP BRAKE LINE TO FIRE WALL, 000 130186 003 066451 007 053318 083 002304 086 001762 093 001874 102,103 113215 105 135079 183 004049 190 005029
999
DISTRIBUTOR
999
BALL SOCKET , Replaced By: A0009918922
999
ROD
999
BRACKET HYDRAULIC UNIT TO BRACKET
999
LINE , Replaced By: A1264208728
999
LINE
999
LINE
999
BRAKE SHOE
999
BRAKE SHOE
