Mercedes A1403200944 - Подшипник

500 SEL / S 500 STANDARD 140.051

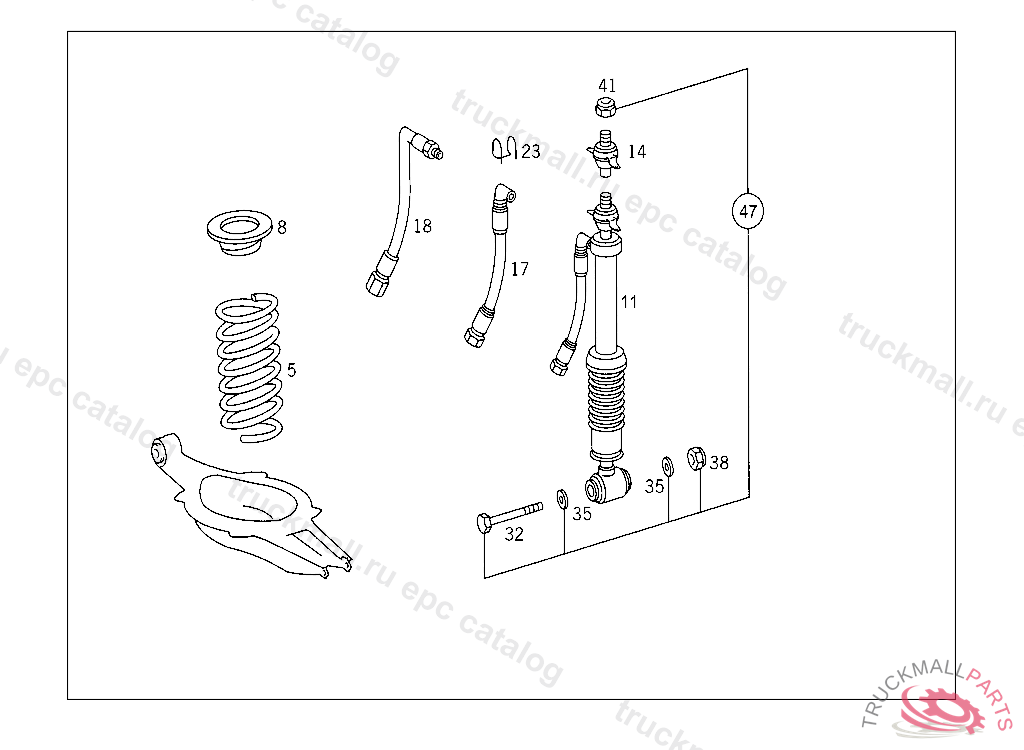

32 SPRINGS,SUSPENSION AND HYDRAULICS - 142 REAR SPRINGS & SUSPENSION USED WITH SELF-LEVELLING DEVICE & A D S

Поз.
Артикул
Описание
5
A1403241604
REAR SPRING AS REQUIRED
5
A1403241804
REAR SPRING AS REQUIRED
5
A1403240804
REAR SPRING AS REQUIRED
5
A1403241904
REAR SPRING AS REQUIRED
5
A1403240704
REAR SPRING AS REQUIRED
8
A1403250184
SHIM AS REQUIRED, NUMBER OF BURLS: 1 (8MM)
8
A1403250384
SHIM AS REQUIRED, NUMBER OF BURLS: 3 (18 MM)
8
A1403250484
SHIM AS REQUIRED, NUMBER OF BURLS: 4 (23 MM)
8
A1403210684
SHIM AS REQUIRED, NUMBER OF BURLS: 1 (8 MM)
8
A1403250284
SHIM AS REQUIRED, NUMBER OF BURLS: 2 (13 MM)
8
A1403210984
SHIM AS REQUIRED, NUMBER OF BURLS: 4 (23 MM)
8
A1403210784
SHIM AS REQUIRED, NUMBER OF BURLS: 2 (13 MM)
8
A1403210884
SHIM AS REQUIRED, NUMBER OF BURLS: 3 (18 MM)
11
A1403209913
HYDROPN. SPRING LEG RANGE OF DELIVERY, ONLY REPLACEABLE BY PAIRS, Replaced By: A1403209613, +001A1409900299
11
A1403207913
HYDROPN. SPRING LEG , Replaced By: A1403209313
11
A1403206713
HYDROPN. SPRING LEG , Replaced By: A1403209313
11
A1403209613
HYDROPN. SPRING LEG RANGE OF DELIVERY
11
A1403209313
HYDROPN. SPRING LEG RANGE OF DELIVERY
14
A1403200944
RUBBER BUFFER
17
A1409970082
HOSE ,A 038790
18
A1409976982
HOSE ,A 038791
23
A1293280626
MOUNTING BOWTO 140 997 00 82
32
N000960012317
SCREW BRACKET TO CONSOLE
35
N000125013008
WASHER
38
N913004012009
NUT , Replaced By: N910113012003
41
N913004010008
NUT , Replaced By: N910113010000
41
N910113010000
NUT STRAP TO BRACKET
47
A1409900299
TS FASTENER PARTS HYDROPNEUMATIC SPRING LEG MOUNTING
