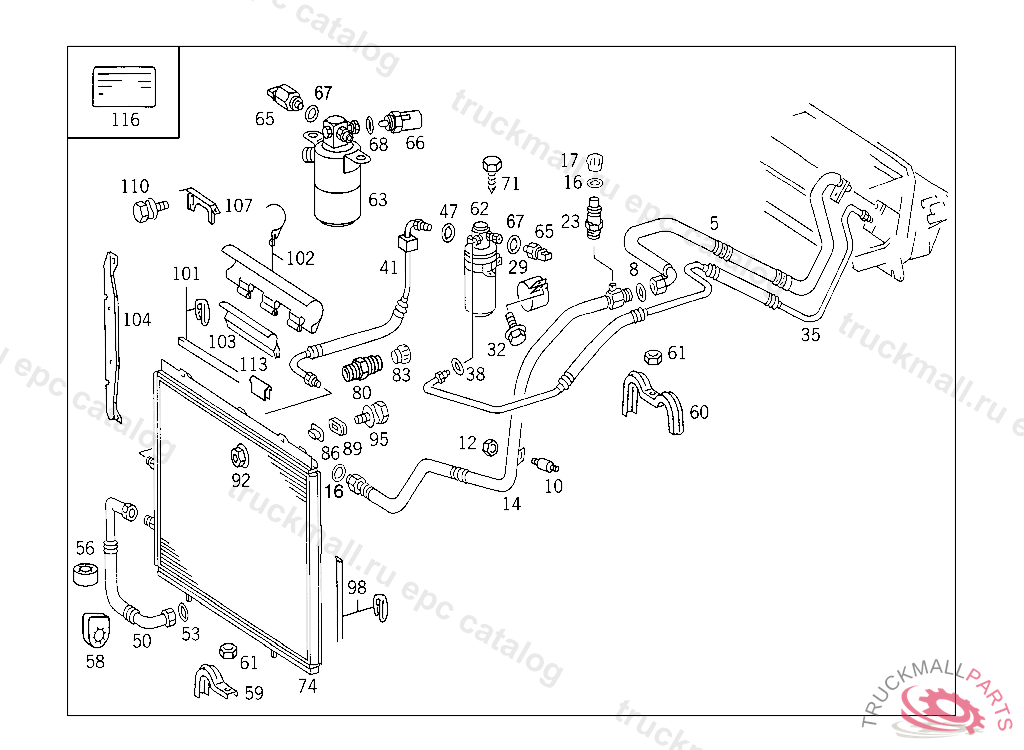

Поз.
Артикул
Описание
5
PIPE LINE (SUCTION LINE),FROM EXPANSION VALVE TO FIRE WALL
5
PIPE LINE (SUCTION LINE),FROM EXPANSION VALVE TO FIRE WALL
8
O-RING HOSE TO EXPANSION VALVE 17X2
10
RUBBER MOUNTING AT RIGHT SIDE MEMBER
12
NUT BALL PIVOT TO LEVER
16
O-RING HOSE TO EXPANSION VALVE 17X2
17
CAP , NOT USED
23
VALVE , NOT USED
29
CLAMP
32
HEXAGON HEAD BOLT
35
PIPE LINE FLUID-RESERVOIR-TO-EXPANSION-VALVE REFRIGERANT LINE
38
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
41
PIPE LINE FROM CONDENSER TO LIQUID TANK
47
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
50
PIPE LINE COMPRESSOR-TO-CONDENSER REFRIGERANT LINE
53
SEAL RING HOSE TO CONDENSER 14 MM
56
RUBBER RING
58
MOUNTING
59
CLAMP LINE TO CROSS MEMBER
60
CLAMP LINE TO CROSS MEMBER
61
NUT , Replaced By: N913023006001
61
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
62
TANK , A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
63
TANK , A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
65
SENSOR AT LIQUID TANK
66
TEMPERATURE SENSOR AT LIQUID TANK, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
67
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
68
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
71
SCREW , Replaced By: A2039900036
74
CONDENSER ,A 006955
80
VALVETO 140 830 05 70
80
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0018306384
83
CAP
86
BUSHING CONDENSER TO RADIATOR
89
GROMMET CONDENSER TO RADIATOR
92
NUT CONDENSER TO RADIATOR
95
SCREW OIL LINE TO CRANKCASE
95
COMBINATION BOLT IGNITION COIL TO BRACKET, Replaced By: N000933006123
98
SEAL , Replaced By: A1408350198
98
SEAL BETWEEN CONDENSER AND RADIATOR,TOP 112 MM, A 142206 TO BE ADAPTED DURING ASSEMBLY
101
SEAL BETWEEN CONDENSER AND RADIATOR,TOP 112 MM, A 142206 TO BE ADAPTED DURING ASSEMBLY
102
SEAL BETWEEN CONDENSER AND RADIATOR,TOP, A 142207
103
BOOT FRONT CENTRAL STIFFENING 100 MM, ORDER BY THE METER
104
BRACKET ADDITIONAL BLOWER TO CONDENSER,A 006955
107
BRACKET ADDITIONAL BLOWER TO CONDENSER
110
COMBINATION BOLT ADDITIONAL BLOWER TO ADDITIONAL BLOWER M 5X16,A 006955
110
COMBINATION BOLT BRACKET TO WHELHOUSE FLANGE
113
INTERMEDIATE LAYER ADDITIONAL BLOWER TO CONDENSER,A 496760
116
GUIDE SIGN REFRIGERANT R 134 A, A 128373
116
GUIDE SIGN REFRIGERANT R 134 A, A 128374
116
PLATE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A1408170720
