Главная
›
Mercedes
›
CAR
›
600 SE V12 JAPAN, S 600 JAPAN
›
140.056
›
50 RADIATOR
›

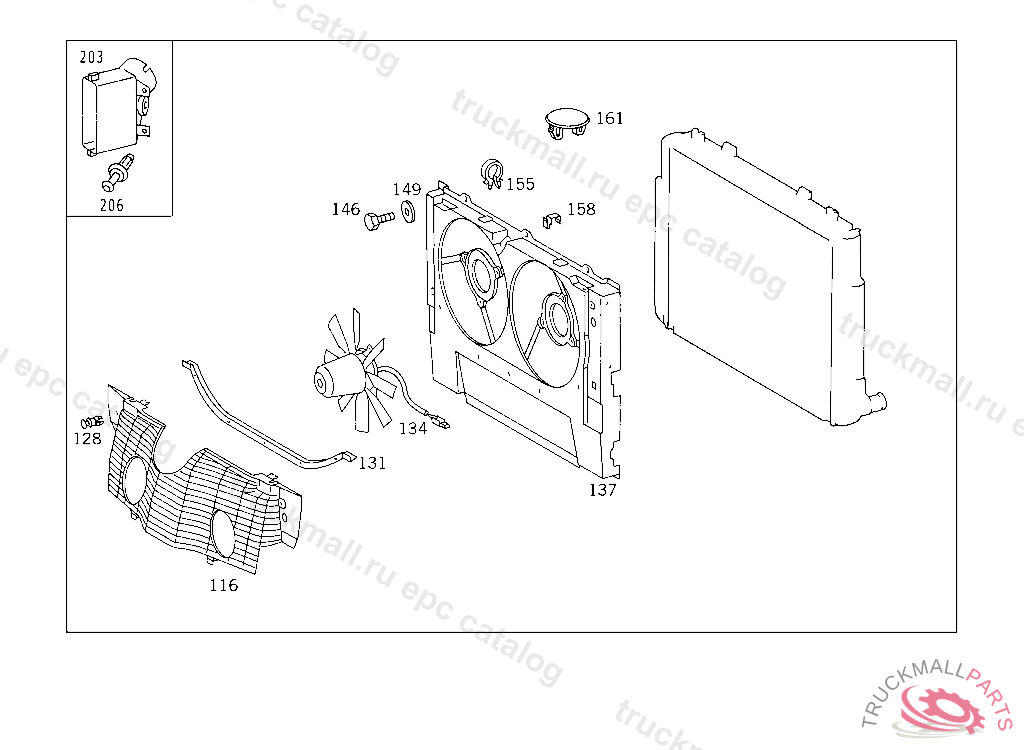

015 RADIATOR,MOUNTING,AND COVERING IL. 4
Mercedes N009021005202 - ШАЙБА
600 SE V12 JAPAN, S 600 JAPAN 140.056
50 RADIATOR - 015 RADIATOR,MOUNTING,AND COVERING IL. 4
Поз.
Артикул
Описание
116
A1405050388
COVERING ONLY FOR USE WITH AIR CONDITIONER
128
A1239900092
RIVET
131
A1405050286
BOOT ONLY FOR USE WITH AIR CONDITIONER
134
A0015000593
BLOWER ONLY FOR USE WITH AIR CONDITIONER,A 006943
137
A1405051455
FAN SHROUD ONLY FOR USE WITH AIR CONDITIONER,A 006943
146
N000000002035
SCREW. HEXALOBULAR BOLT COVER TO MOUNTING FRAME M5X12
146
N000933005059
SCREW BRACKET TO TAIL LAMP BRACKET
146
N304017005007
SCREW MOUNTING PARTS M 5X12, Replaced By: N000000002035
149
N009021005202
WASHER , Replaced By: N009021005205
149
N009021005205
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
155
A0009956044
CLAMP BOWDEN CABLE TO CAB
155
A0009955444
CLAMP , Replaced By: A0009956044
158
A1405040346
CLAMP ONLY FOR USE WITH AIR CONDITIONER,A 006942
161
A0019881535
CAP REAR SIDE MEMBER
203
A1405280604
SCOOP COLD AIR INTAKE
203
A1405280504
SCOOP COLD AIR INTAKE
999
A0005010176
WASHER WATER DRAIN
