Поз.
Артикул
Описание
11

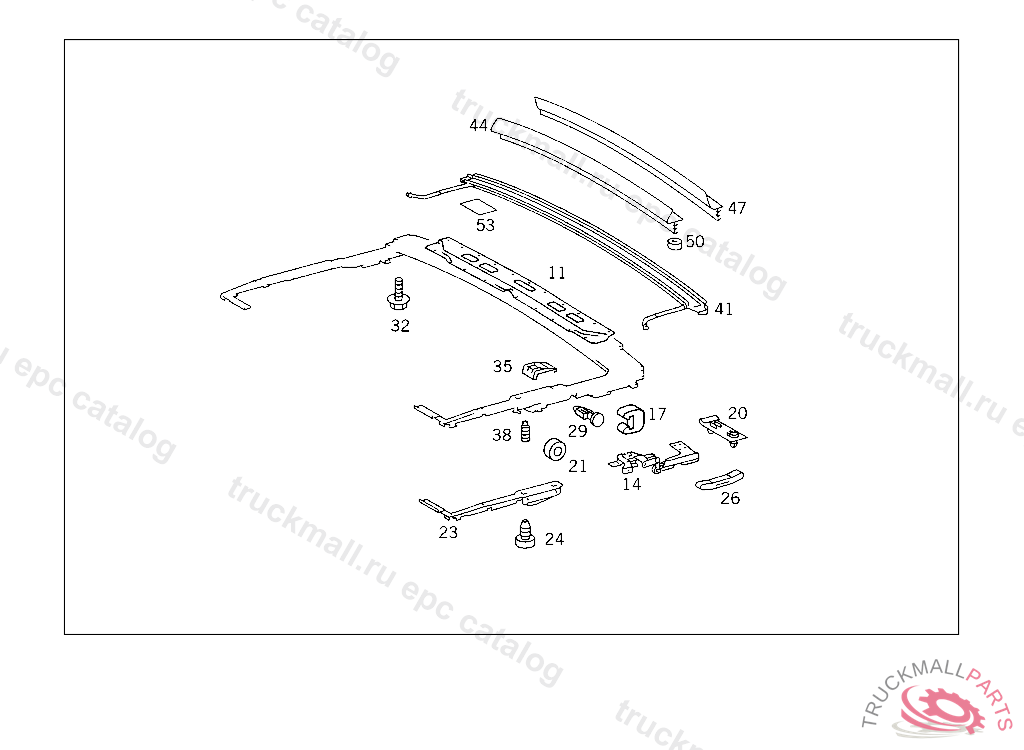

BRIDGE NON-MAGNETIC SLIDING ROOF WITH AUTO PILOT SYSTEM
11
BRIDGE (TRANSPORT BRIDGE)
14
ANGLE AT TRANSPORT BRIDGE,RIGHT
14
ANGLE AT TRANSPORT BRIDGE,RIGHT
14
ANGLE AT TRANSPORT BRIDGE,LEFT
14
ANGLE AT TRANSPORT BRIDGE,LEFT
17
STOP AT TRANSPORT BRIDGE
20
CLAMPING PIECE LIFTING ANGLE
21
ROLLER LIFTING LEVER FOR TILT ANGLE
21
ROLLER LIFTING LEVER FOR TILT ANGLE
23
BRACKET AT GUIDE, FOR COVER,LEFT
23
BRACKET AT GUIDE, FOR COVER,LEFT
23
BRACKET , Replaced By: A1407800414
23
BRACKET , Replaced By: A1407800314
23
BRACKET , Replaced By: A1407800214
23
BRACKET , Replaced By: A1407800114
23
BRACKET AT GUIDE, FOR COVER,RIGHT
23
BRACKET AT GUIDE, FOR COVER,RIGHT
24
SCREW SCREENING PLATE TO CYLINDER HEAD COVER M 5X10
26
SLIDING JAW AT LIFTING BOW
29
LOCK
32
SCREW LIFTING ANGLE TO TRANSPORT BRIDGE
35
STOP AT TRANSPORT BRIDGE
38
SCREW AT TRANSPORT BRIDGE
41
RAIL (DRIP MOULDING)
44
SEAL730 MM, TO BE ADAPTED DURING ASSEMBLY
47
SEAL REAR, TO BE ADAPTED DURING ASSEMBLY
47
SEAL , Replaced By: A1407820498
50
INSULATION
53
INSULATION DRIP MOULDING 60X15 MM
53
INSULATION , Replaced By: A2027820191
