Mercedes A0019902022 - Болт

600 SEL V12 / S 600 SONDERSCHUTZ/SPECIAL PROTECTION 140.057

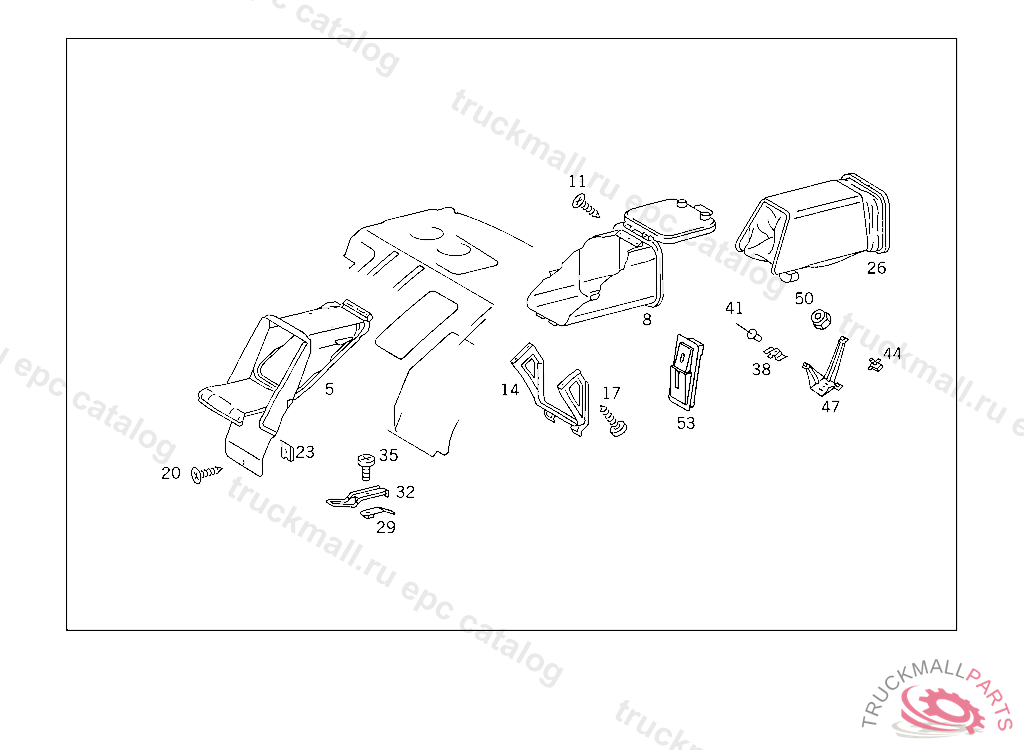

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS IL. 3

Поз.
Артикул
Описание
5
A1408400255
TAKE-UP DEVICE FRONT
8
A1408400355
TAKE-UP DEVICE REAR
11
N914127004209
SHEET METAL SCREW FOOTREST
14
A1408400031
CONSOLE
17
N914127004208
SHEET METAL SCREW
17
N000000000453
SHEET METAL SCREW MODULE TO HOUSING
20
N914127004207
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
23
A1239941845
LOCK COVERING TO INSTRUMENT PANEL,TOP
26
A1408400062
CONTAINER
29
A1408400066
LATCH CROSS MEMBER BELOW REAR SEAT
32
A1408400049
BUFFER REAR SINGLE SEAT
32
A1408400149
BUFFER
35
N914116006412
SCREW
38
A1409881678
CLIP REAR PANEL
41
N910001003100
RIVET
44
A0019902022
SCREW BRACKET TO REAR PANEL
47
A1406400731
CONSOLE EXPANSION TANK
50
N913017005000
NUT BRACKET TO ANTENNA, ONLY USED WITH REAR END MOUNTINGA 001878
53
A1296900114
BRACKET REAR PANEL
