Mercedes A0048206042 - ЭЛЕКТРОМОТОР

600 SEL V12 / S 600 SONDERSCHUTZ/SPECIAL PROTECTION 140.057

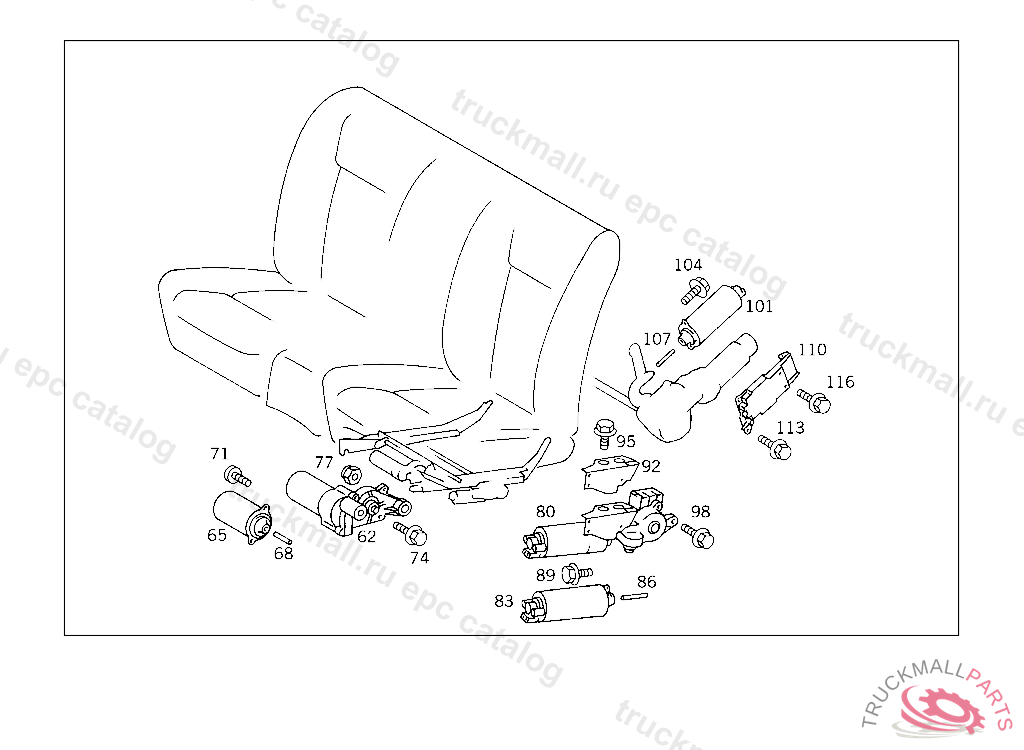

82 ELECTRICAL SYSTEM - 495 ELECTRIC REAR SEAT ADJUSTMENT IL. 2

Поз.
Артикул
Описание
62
A0048205842
ELECTRIC MOTOR HEIGHT ADJUSTMENT
65
A1408206942
ELECTRIC MOTOR HEIGHT ADJUSTMENT
68
A0008290044
SHAFT
71
A1409843329
SCREW MOTOR TO GEARING
74
A1409901122
SCREW
74
A1169900122
SCREW , Replaced By: A1409901122
77
N913012008000
NUT BATTERY NEG. POLE
80
A0048206042
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT
83
A1408206742
ELECTRIC MOTOR FORE-AND-AFT ADJUSTMENT
86
A0008290044
SHAFT
89
A1299900812
SCREW SWITCH TO BACKREST ADJUSTER
92
A1408207910
SWITCH
95
A1299900812
SCREW SWITCH TO BACKREST ADJUSTER
98
N914125008519
SCREW GEARING TO SEAT GUIDE
101
A1408207142
ELECTRIC MOTOR BACKREST ADJUSTER
104
A1299900812
SCREW SWITCH TO BACKREST ADJUSTER
107
A0008290044
SHAFT
110
A1408207810
SWITCH RIGHT
110
A1408207710
SWITCH LEFT
113
A1299900812
SCREW SWITCH TO BACKREST ADJUSTER
116
A1409841629
SCREW GLOVE COMPARTMENT LID WITH DAMPER
999
A1408209542
ELECTRIC MOTOR ELECTRICALLY ADJUSTABLE HEADREST WITH PROGRAMMING
