600 SEL V12 / S 600 SONDERSCHUTZ/SPECIAL PROTECTION
140.057
83 HEATING AND VENTILATION
001 ELIMINATION OF WINDSHIELD HEATING AND OF HEATED WINDSHIELD WASHER (FOR TYPE 140

Mercedes A1268321094 - Шланг

600 SEL V12 / S 600 SONDERSCHUTZ/SPECIAL PROTECTION 140.057

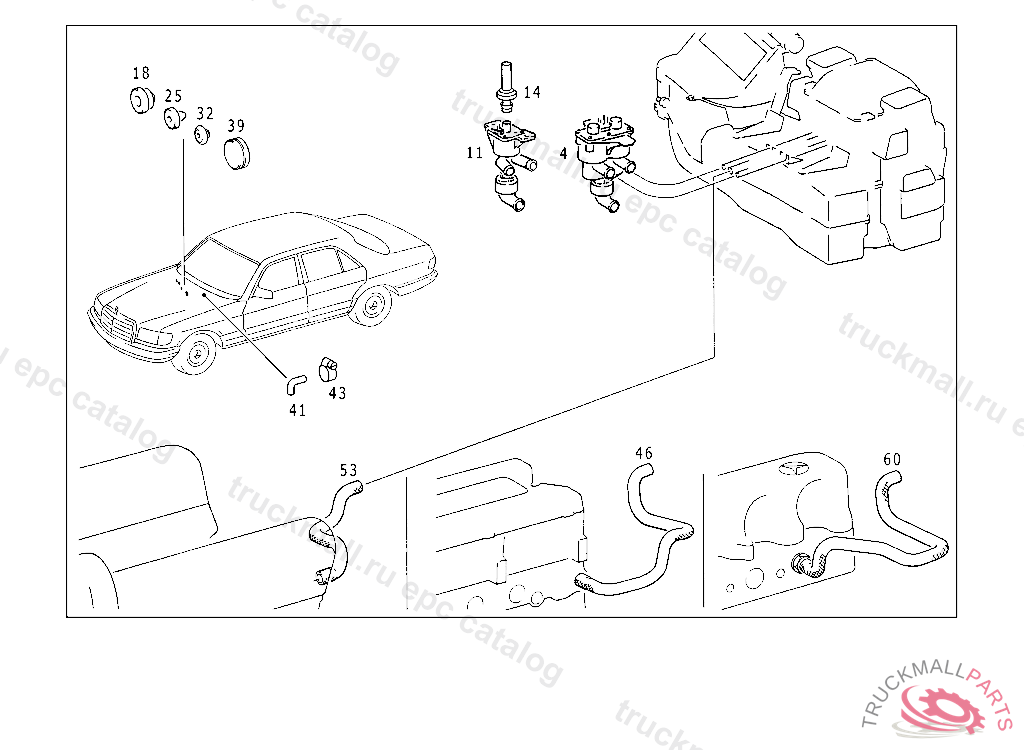

83 HEATING AND VENTILATION - 001 ELIMINATION OF WINDSHIELD HEATING AND OF HEATED WINDSHIELD WASHER (FOR TYPE 140

Поз.
Артикул
Описание
4
A1268300084
VALVE (DOUBLE WATER VALVE),INBOARD HEATING
11
A0008301884
VALVE (DOUBLE WATER VALVE),INBOARD HEATING
14
A0008350644
MAGNET
18
A1159870840
RUBBER BUFFER BRACKET AT BOX
25
A0009871840
RUBBER BUFFER TO PLUG THE MOUNTING HOLE USED FOR GROUND CONNECTION IN CASE OF R.H.D.
32
A1169970886
PLUG TO PLUG THE BORES
39
A3129970981
GROMMET
41
N900271008043
HOSE DE-AERATION LINE, LENGTH AVAILABLE: 1000 MM
43
A0059970190
HOSE CLAMP LINE MOUNTING
46
A1268320894
HOSE BETWEEN ENGINE AND HEAT EXCHANGER
53
A1268321094
HOSE BETWEEN ENGINE AND HEAT EXCHANGER
60
A1268322094
HOSE BETWEEN ENGINE AND HEAT EXCHANGER
