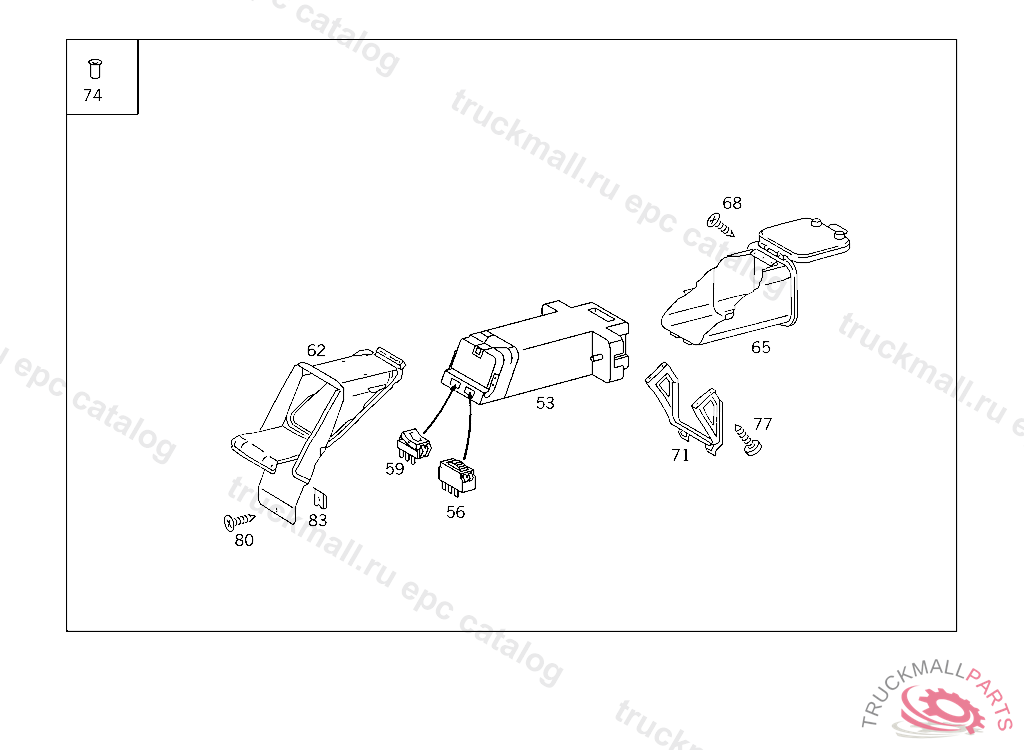

600 SEL V12 / S 600 SONDERSCHUTZ/SPECIAL PROTECTION - 140.057 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
53
COOL BOX BETWEEN THE REAR SEAT BACKRESTS VOGELAUGENAHORN, A 328811 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE TO A 328810 WITH CODE 807
53
COOL BOX BETWEEN THE REAR SEAT BACKRESTS WURZELNUSS
56
REGULATOR
59
SWITCH
62
TAKE-UP DEVICE FRONT
65
TAKE-UP DEVICE REAR
68
TAPPING SCREW MOUNTING PARTS 4.8X16
71
CONSOLE
74
RIVETED NUT. RIVET NUT BRACKET TO ORNAMENTAL GRILLE M6X14.5
77
TAPPING SCREW CONTROL UNIT TO FIRE WALL
80
SHEET METAL SCREW CONTROL UNIT TO COVERING,LATERAL LEFT
83
LOCK , Replaced By: A1239941845
