Mercedes N914130006117 - Болт

500 SEC USA, S 500 USA 140.070

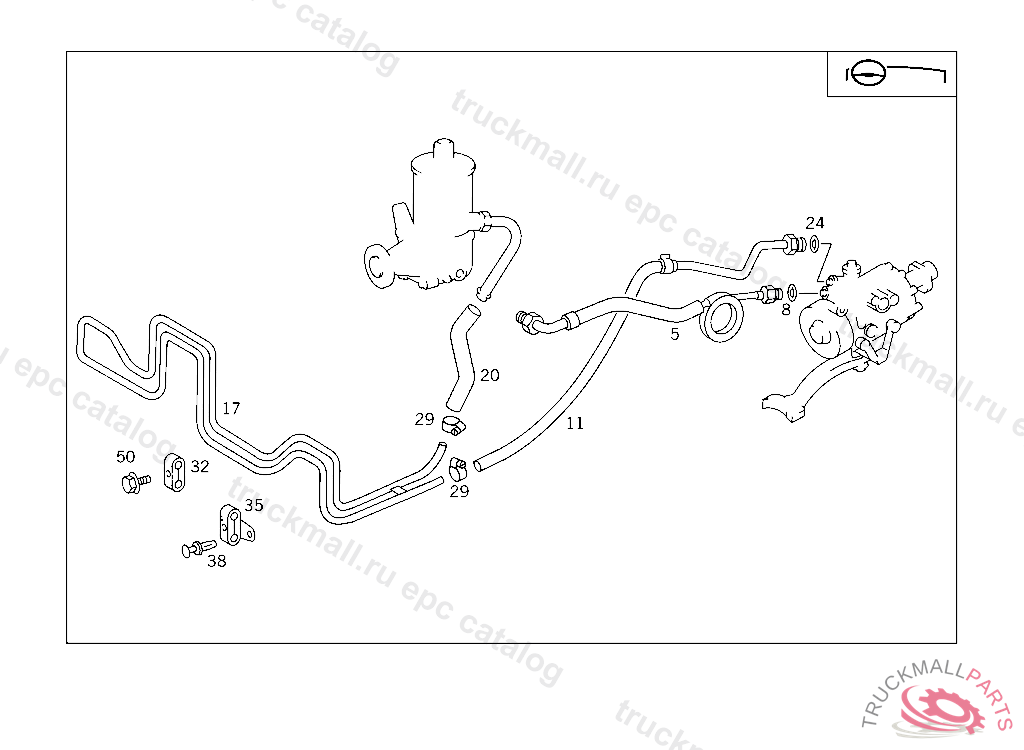

46 STEERING - 060 STEERING GEAR, RANGE OF LINES IL. 1

Поз.
Артикул
Описание
5
A1404660181
HOSE (DELIVERY LINE),FROM PUMP TO STEERING, A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
5
A1404661281
HOSE (DELIVERY LINE),FROM PUMP TO STEERING, A 290167 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO A 290166 WITH CODE 806
8
A0199977348
SEAL RING HIGH-PRESSURE HOSE ON STEERING
11
A1409974882
HOSE FROM STEERING TO COOLING PIPE
17
A1404601224
LINE COOLING PIPE
20
A1409973582
HOSE FROM COOLING PIPE TO PUMP, A 290166 EXCEPT CODE 806 ALSO INSTALLED IN VEHICLE FROM A 290167 WITH CODE 805
20
A1409978682
HOSE FROM COOLING PIPE TO PUMP, A 290167 ALSO INSTALLED ON A 218428 - A 290165 WITH CODE 806
24
A0199977448
SEAL RING RETURN LINE TO STEERING
29
A0049977490
LOOM TIE FROM COOLING PIPE TO PUMP
32
A1404660940
BRACKET COOLING PIPE TO FRONT CROSS MEMBER
35
A1404661040
BRACKET COOLING PIPE
38
A1239900092
RIVET
50
N914130006117
SCREW COOLING PIPE TO CROSS AND SIDE MEMBERS
