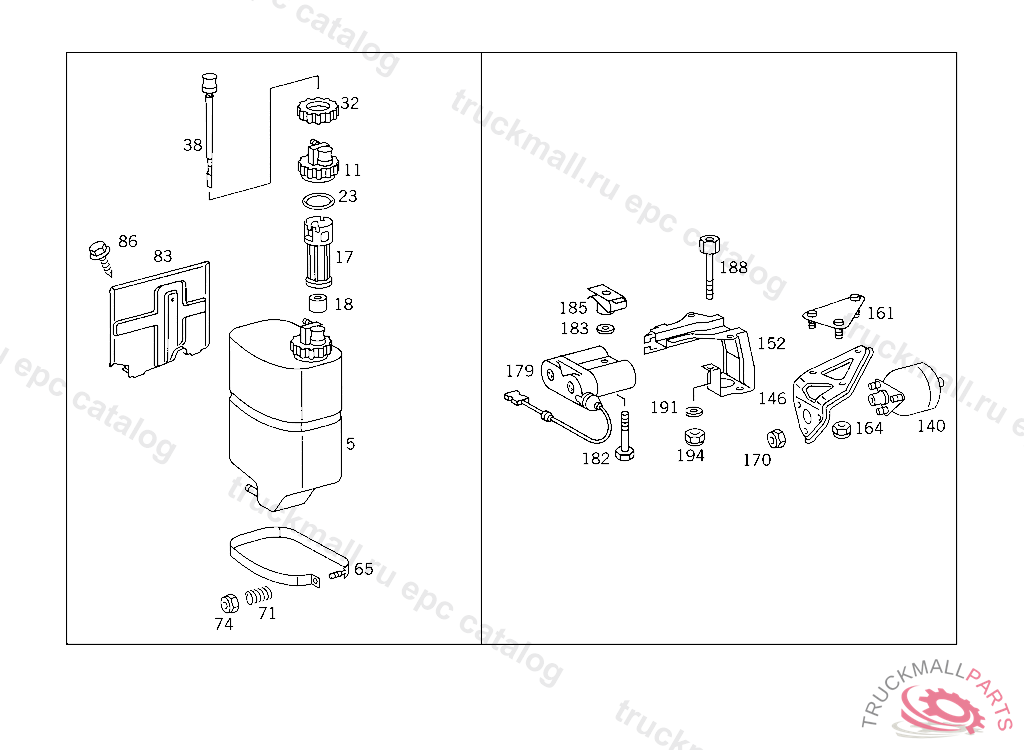

Поз.
Артикул
Описание
5
RESERVOIR OIL RESERVOIR USED FOR AUTOMATIC LOCKING DIFFERENTIAL (ASD), ORDER ADDITIONALLY: 1 X201 327 06 21
11
COVER SELF-LEVELLING DEVICE OIL RESERVOIR
17
FILTER
18
SPACER
23
SEAL RING
32
NUT
38
HOUSING OIL DIPSTICK
65
STRAP OIL RESERVOIR TO CONSOLE
71
SPRING OIL RESERVOIR TO CONSOLE
74
NUT , Replaced By: N913002006009
74
NUT OIL TANK TO BRACKET
140
AIR RESERVOIR (SPRING LOAD ACCUMULATOR)
140
AIR CELL , Replaced By: A1403280215
140
AIR RESERVOIR , Replaced By: A1403280515
146
BRACKET RIGHT REAR SPRING LOAD ACCUMULATOR
146
BRACKET LEFT REAR SPRING LOAD ACCUMULATOR
152
BRACKET DAMPING VALVE & PRESSURE ACCUMULATOR, REAR RIGHT
161
PLATE BRACKET TO FRAME
164
NUT , Replaced By: N913004008001
170
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
170
NUT , Replaced By: N913023006001
179
VALVE ,A 148128, Replaced By: A1403271625, +001A1404405934
179
VALVE ,A 148128, Replaced By: A1403271625, +001A1404405934
179
VALVE (DAMPING VALVE),REAR, UP TO IDENT NO. A 212244 EXCEPT FOR A 187334 - A 212243 WITH CODE 867
179
VALVE (DAMPING VALVE),REAR, FROM IDENT NO. A 212245 ALSO INSTALLED ON A 187334 - A 212243 WITH CODE 867
182
SCREW VALVE TO BRACKET M 8X55
182
SCREW , Replaced By: N304017008043
183
WASHER , Replaced By: N000125008443
185
NUT RETAINER MOUNTING FRAME TO SUPPORT,V 202043
188
SCREW DAMPING VALVE & PRESSURE ACCUMULATOR, REAR RIGHT
191
WASHER , Replaced By: N000125008443
194
NUT HORN TO BRACKET M8
194
NUT , Replaced By: N913023008003
