Mercedes A1404204628 -

600 SEC V12 JAPAN, S 600 JAPAN 140.076

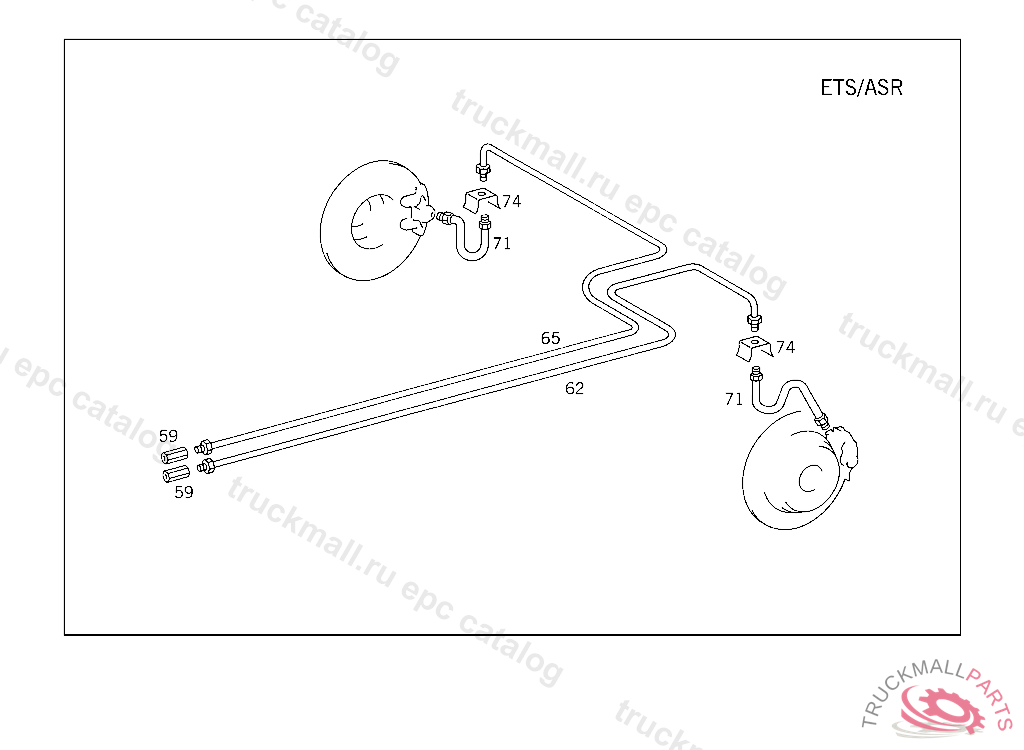

42 BRAKES - 105 BRAKE LINES USED FOR ACCELERATION SKID CONTROL (ASR) IL. 3

Поз.
Артикул
Описание
59
A1214290134
ADAPTER FITTING BETWEEN THE LINES
62
A1234208828
LINE FROM MASTER CYLINDER TO HOSE 3865 MM
62
A1404204328
LINE , Replaced By: A1234208628
62
A1404201028
LINE , Replaced By: A1234208828
62
A1234208628
LINE FROM VALVE TO LEFT REAR WHEEL 3560 MM
65
A1234208128
LINE FROM PRESSURE RETAINING VALVE TO RIGHT REAR BRAKE HOSE 3090 MM,P 136599
65
A1234209028
LINE FROM ADAPTER FITTING TO BRAKE HOSE, REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
65
A1404204628
LINE , Replaced By: A1234208128
65
A1404201328
LINE , Replaced By: A1234209028
71
A1264280335
BRAKE HOSE
74
A0004280673
RETAINING SPRING BRAKE HOSE TO BRACKET
