Mercedes A1403202372 -

300 SD TURBODIESEL USA, S 350 TURBODIESEL USA 140.134

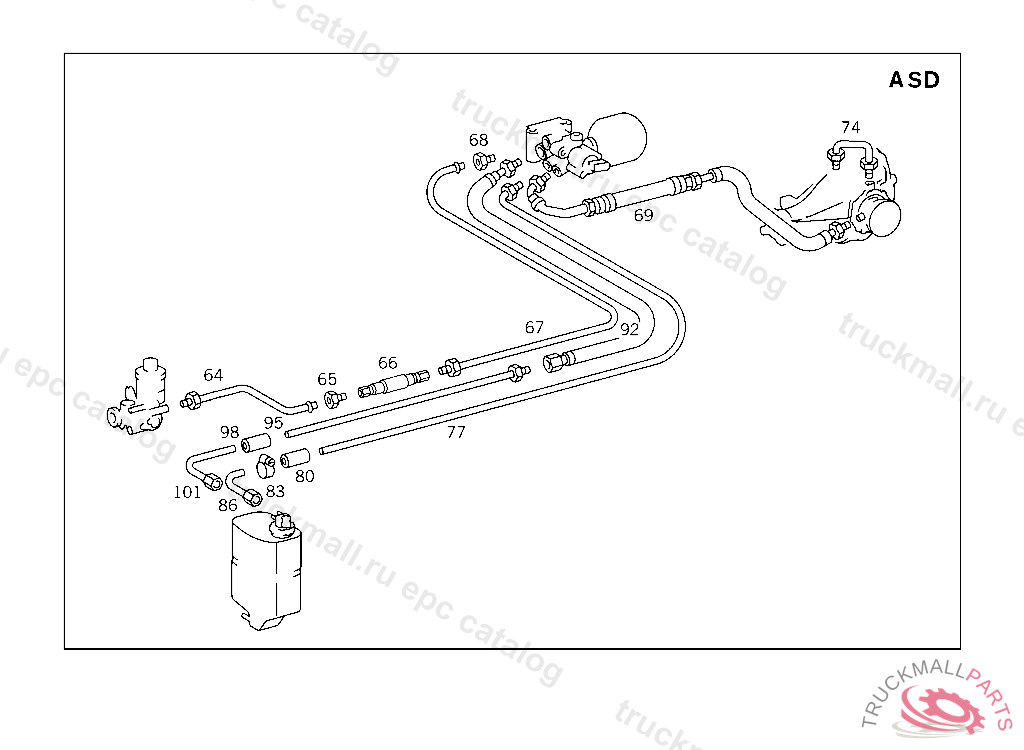

32 SPRINGS,SUSPENSION AND HYDRAULICS - 285 LINE ARRANGEMENT IN CASE OF SELF-LEVELLING DEVICE & A S D IL. 2

Поз.
Артикул
Описание
69
A1403500780
LINE FROM CONTROL VALVE TO RING CYLINDER,A 083768
69
A1403500180
LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.A 092142, Replaced By: A1403500780
74
A1293500080
LINE FROM LEFT RING CYLINDER TO RIGHT RING CYLINDER 290 MM
77
A1403200872
LINE (RETURN LINE) FROM SELF-LEVELLING UNIT TO OIL TANK, TO BE ADAPTED DURING ASSEMBLY
77
A1403202172
LINE , Replaced By: A1403200872
80
A1409972682
HOSE
83
A0019976990
HOSE CLAMP HOSE FASTENING 9/13MM
86
A1403200672
LINE (RETURN LINE) FROM COUPLING PIECE TO OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
95
A1403208972
LINE CONNECTION "T", FROM CONTROL VALVE TO OIL RESERVOIR,A 083769
98
A1409972782
HOSE
101
A1403202372
LINE (RETURN LINE) FROM COUPLING PIECE TO OIL RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
