Поз.
Артикул
Описание

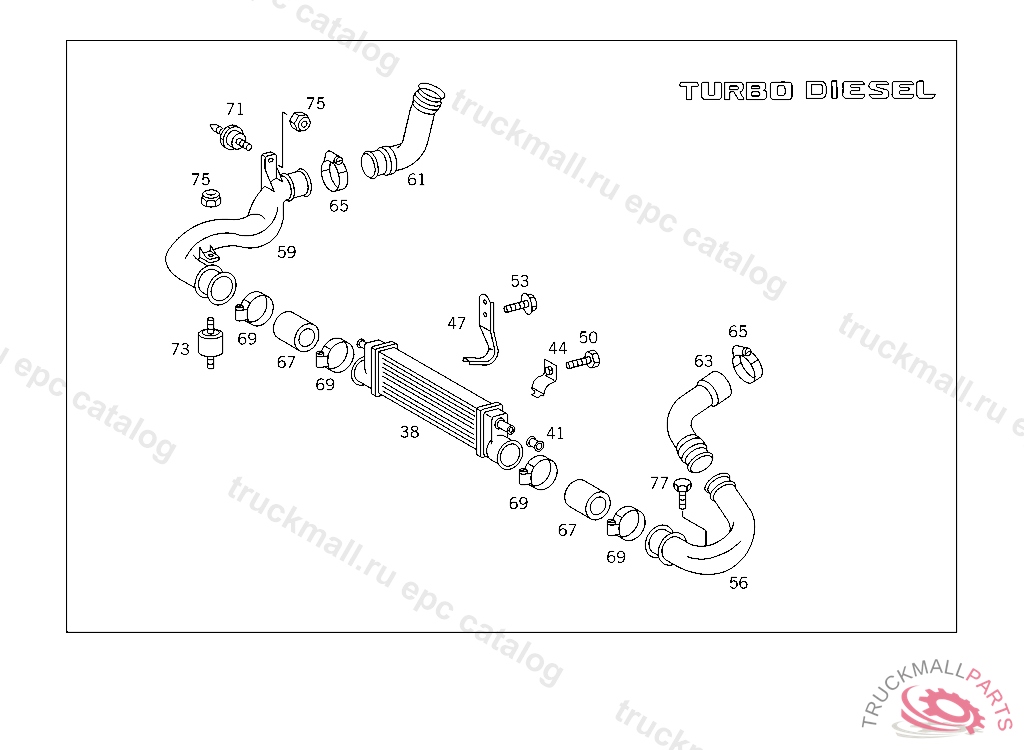

38
RADIATOR (CHARGING AIR INTERCOOLER), A327376
38
RADIATOR (CHARGING AIR INTERCOOLER), A327377
41
GROMMET CHARGE AIR INTERCOOLER
44
BRACKET CHARGE AIR INTERCOOLER
47
BRACKET CHARGE AIR INTERCOOLER
50
SCREW PUMP TO BRACKET
50
SCREW , Replaced By: N304017006016
53
HEXAGON HEAD BOLT
56
AIR INTAKE PIPE LEFT, A327376
56
AIR INTAKE PIPE LEFT, A327377
59
AIR INTAKE PIPE RIGHT, A327377
59
AIR INTAKE PIPE RIGHT, A327376
61
HOSE
61
HOSE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. A 353296, Replaced By: A1405014582
63
HOSE LEFT
65
LOOM TIE. CLAMP HOSE FASTENING
65
CLAMP , Replaced By: A0069972690
67
BOOT CHARGE AIR INTERCOOLER, A327376
67
BOOT CHARGE AIR INTERCOOLER, A327377
69
CLAMP , Replaced By: A0069972790
71
RUBBER MOUNTING AT RIGHT SIDE MEMBER
73
BUFFER PUMP TO BRACKET
75
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
77
SCREW ENGINE MOUNTING TO ENGINE SUPPORT
999
WASHER WATER DRAIN
