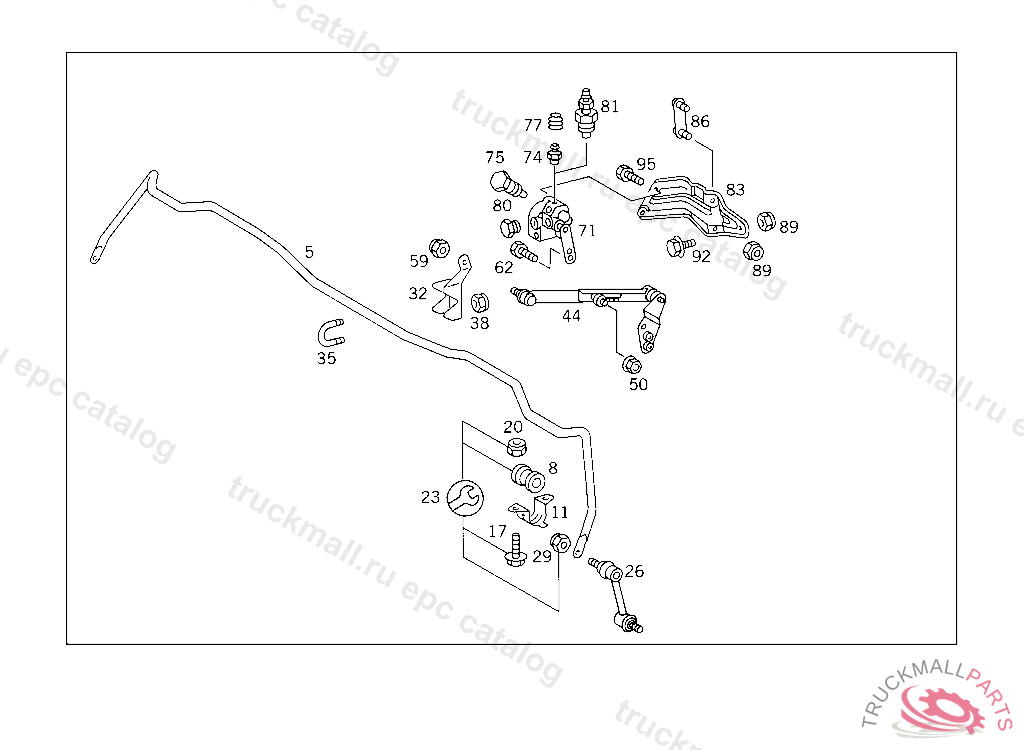

Поз.
Артикул
Описание
5
TORSION BAR REAR
8
RUBBER MOUNTING TORSION BAR TO FRAME
11
BRACKET TORSION BAR TO CONTROL ARM
17
SCREW TORSION BAR TO FRAME
17
SCREW , Replaced By: N910105008071
17
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
20
NUT HORN TO BRACKET M8
23
REPAIR KIT TORSION BAR,REAR
26
ROD FROM TORSION BAR TO WHEEL BEARING
26
ROD , Replaced By: A1403203589
29
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
29
NUT CROSS MEMBER TO SIDE MEMBERS
32
LEVER AT TORSION BAR
35
MOUNTING BOW LEVER TO TORSION BAR
38
NUT RELAY TO BRACKET M5
38
NUT , Replaced By: N913023005002
44
ROD FROM TORSION BAR TO SELF-LEVELLING UNIT
50
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
50
NUT , Replaced By: N913023006001
59
NUT PUMP TO BRACKET
59
NUT , Replaced By: N913004006001
59
NUT HEATING PIPE TO BRACKET
62
SCREW COVER PLATE TO COVER PLATE M 6 X 12
62
SCREW , Replaced By: N304017006018
71
VALVE , Replaced By: A2023200058
71
VALVE , Replaced By: A2023200258
71
VALVE HEIGHT CONTROL VALVE
74
PIPE SOCKET OIL DRAIN
75
SCREW PLUG OIL DRAIN TO 202 320 00 58
77
PROTECTIVE CAP , Replaced By: A0004217187
77
PROTECTIVE CAP ,5 962906
81
SCREW PLUGTO 202 320 00 58 / 202 320 02 58
83
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.A 092142, Replaced By: A1403283940
83
BRACKET HEIGHT CONTROL VALVE TO FRAME
86
PLATE HEIGHT CONTROL VALVE TO FRAME
89
NUT BALL PIVOT TO LEVER
92
HEXAGON HEAD BOLT
92
SCREW , Replaced By: N910105006002
95
HEXAGON HEAD BOLT , Replaced By: N000000002270
95
SCREW , Replaced By: N910106006006
95
SCREW BELL HOUSING LOWER PART TO BELL HOUSING
999
JOINT
999
JOINT
