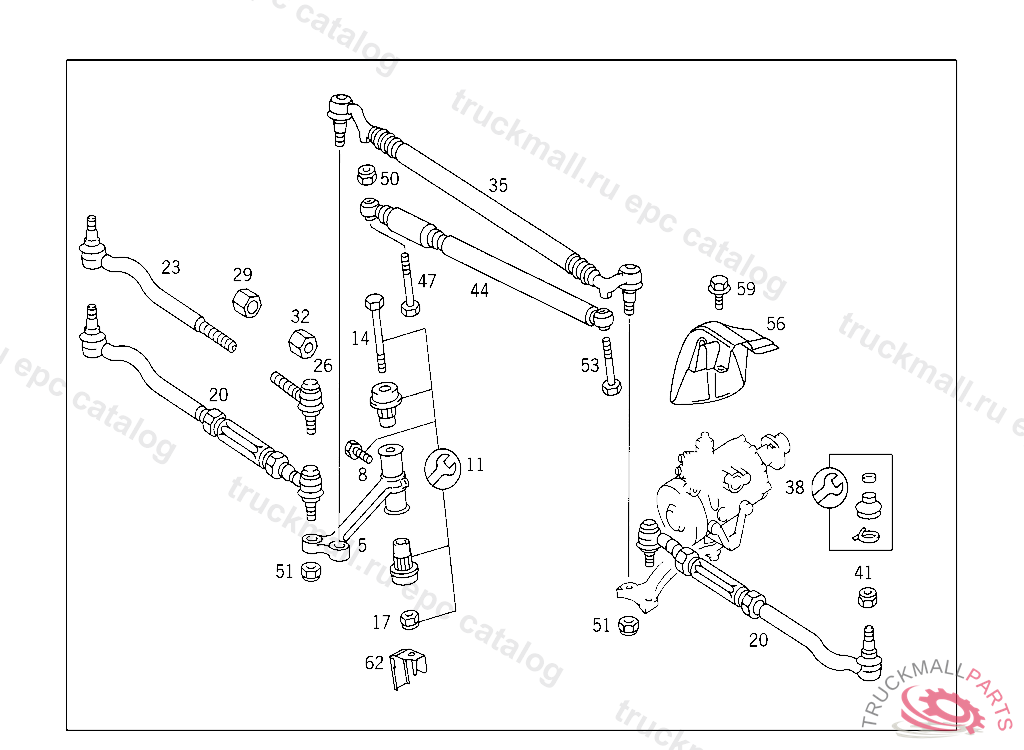

Поз.
Артикул
Описание
5
INTERMEDIATE LEVER
5
INTERMEDIATE LEVER , Replaced By: A2404600119
8
SCREW ,12/96
8
SCREW CLAMP ON BRACKET
11
REPAIR KIT INTERMEDIATE LEVER
14
SCREW INTERMEDIATE LEVER TO PIVOT BEARING M14X1.5X130
17
NUT FOR TAPPING SCREW SPRING CONTROL ARM TO WHEEL BEARING
17
NUT , Replaced By: N910113014001
20
TIE ROD
23
JOINT R.H. THREAD
26
JOINT L.H. THREAD
29
CLAMPING PIECE R.H. THREAD
32
CLAMPING PIECE L.H. THREAD
35
DRAG LINK
38
REPAIR KIT TIE ROD BOOT AND DRAG LINK BOOT,RESP.
41
NUT PLATFORM MOUNTING
41
NUT SUPPORT TO SIDE MEMBER
44
SHOCK ABSORBER (STEERING SHOCK ABSORBER)
47
SCREW BRACKET TO FRAME SIDE MEMBER
47
SCREW , Replaced By: N308676010023
50
NUT STRAP TO BRACKET
51
NUT SUPPORT TO SIDE MEMBER
51
NUT , Replaced By: N910113012002
53
SCREW STEERING SHOCK ABSORBER TO DRAG LINK
62
PROTECTIVE PLATE INTERMEDIATE LEVER
