Mercedes A2464700240 - Натяжной ремень

GLA 200 CDI 4-MATIC 156.902

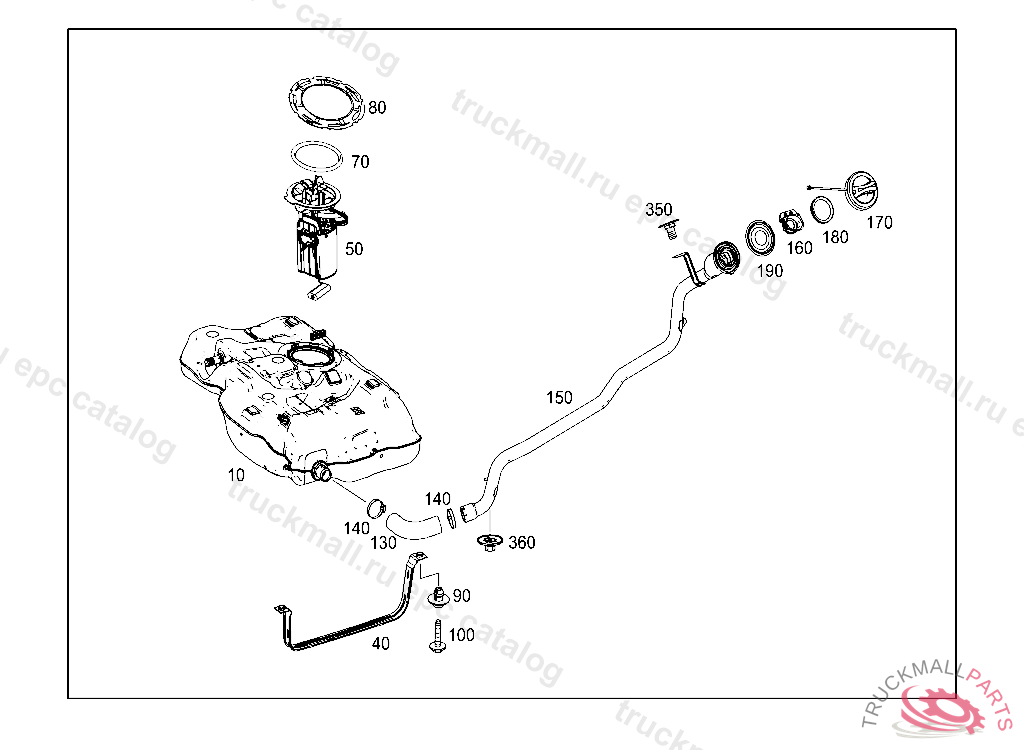

47 FUEL SYSTEM - 015 FUEL TANK WITH ATTACHMENT PARTS

Поз.
Артикул
Описание
10
A2464701300
FUEL TANK
10
A2464703301
FUEL TANK
10
A2464702301
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. J 20140207, Replaced By: A2464701300
10
A2464702201
FUEL TANK
40
A2464700240
RETAINING STRAP TANK AT BODY AT LEFT
50
A2464700494
FUEL DELIVERY MODULE
70
A0999970145
O-RING PUMP TO RESERVOIR
80
A2464710030
BAYONET TYPE CAP PUMP TO RESERVOIR
90
A2464710041
BRACKET SHIELD TO FUEL TANK
130
A2464760075
FUEL HOSE FILLER NECK TO FUEL TANK
140
N000000002775
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
150
A2464701220
FILLER NECK
160
A2464700129
GUIDE FUNNEL F NECK TO FILLER NECK
170
A2224700105
FILLER CAP
180
A1684710679
SEAL RING FILLER CAP TO FILLER NECK
180
A1684710479
SEAL RING FILLER CAP
190
A2464710181
SEALING SLEEVE FILLER NECK TO BODY
350
A2109900150
HEXAGON NUT W COLLAR BRACKET MOUNTING
360
A0009903162
NUT FILLER PIPE TO FRAME
