Поз.
Артикул
Описание

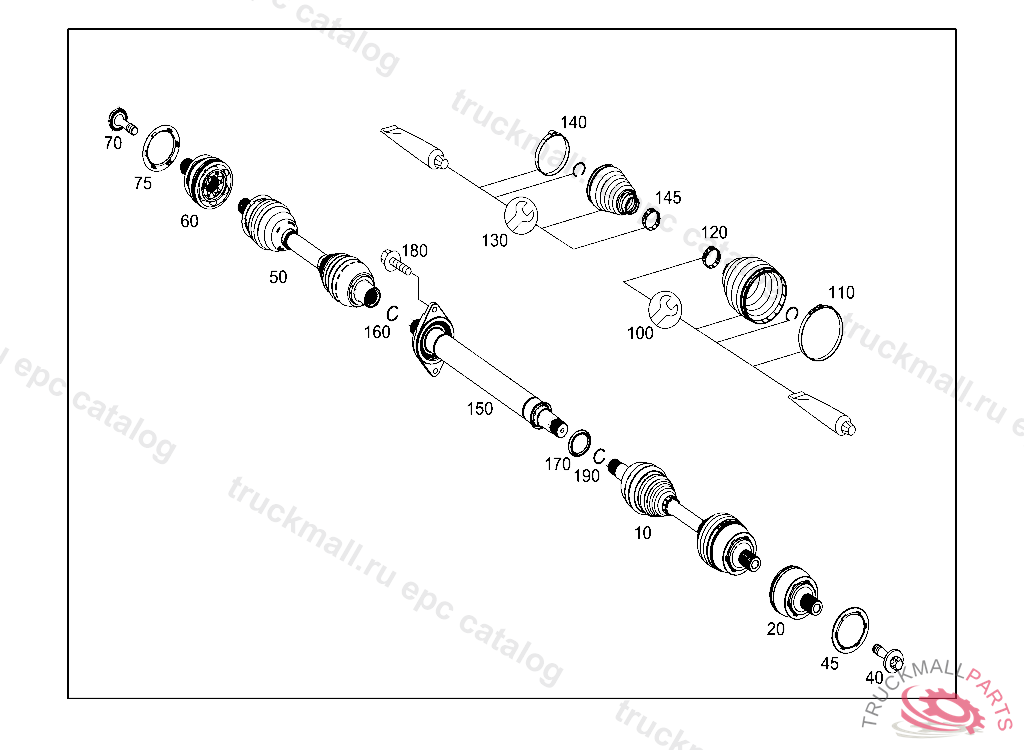

10
HALF-SHAFT LEFT
10
HALF-SHAFT LEFT
10
HALF-SHAFT LEFT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2463309600
20
FIXED JOINT OUTSIDE LEFT
40
SCREW W RND. HEXAL. HEAD SIDE SHAFT TO FLANGE, RIGHT M16X1,5X58
45
CENTRIFUGAL SEPARATOR OUTSIDE LEFT
50
HALF-SHAFT RIGHT
50
HALF-SHAFT RIGHT
50
HALF-SHAFT RIGHT, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A2463309700
60
FIXED JOINT OUTSIDE LEFT
70
SCREW W RND. HEXAL. HEAD SIDE SHAFT TO FLANGE, RIGHT M16X1,5X58
75
CENTRIFUGAL SEPARATOR OUTSIDE LEFT
100
RS BOOT RIGHT SIDE SHAFT, AT WHEEL END
100
RS BOOT LEFT SIDE SHAFT, AT WHEEL END
110
HOSE CLAMP BOOT, OUTBOARD, LEFT OUTER
120
RS BOOT LEFT SIDE SHAFT, AT TRANSMISSION END
120
CLAMP BOO AT TRANSMISSION END, RIGHT INNER
120
RS BOOT LEFT SIDE SHAFT, AT TRANSMISSION END
130
RS BOOT LEFT SIDE SHAFT, AT TRANSMISSION END
130
RS BOOT LEFT SIDE SHAFT, AT TRANSMISSION END
140
HOSE CLAMP BOOT AT TRANSMISSION END, LEFT INNER 76,5MM, NOTE WORK INSTRUCTIONS IN WISWIS-NET#AR33.30-P-0695-01AK#
145
CLAMP BOO AT TRANSMISSION END, RIGHT INNER
150
SHAFT F SIDE SHAFT RIGHT
160
SNAP RING INTERMEDIATE SHAFT
170
PROTECTIVE RING INNER JOINT
180
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
190
SNAP RING
