Поз.
Артикул
Описание

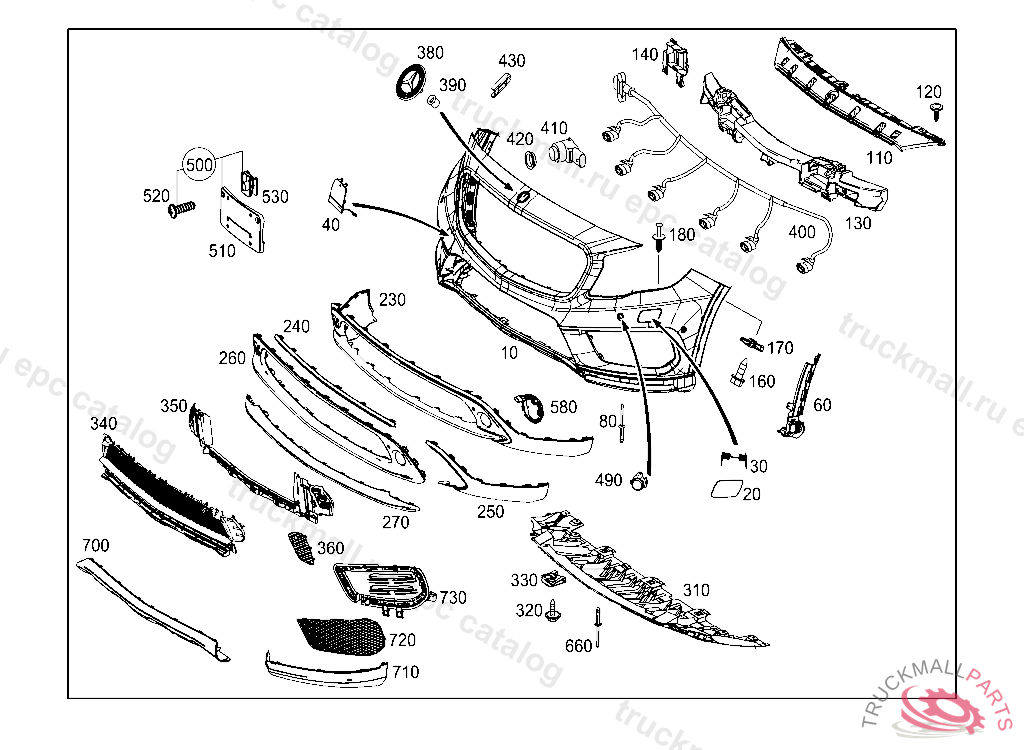

10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
10
TRIM BUMPER FRONT BUMPER, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
20
COVER BUMPER AREA LEFT, HEADLAMP CLEANING DEVICE
20
COVER BUMPER AREA RIGHT,HEADLAMP CLEANING DEVICE
30
SPRING ELEMENT
40
COVER TOWING EYE TOWING EYE, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
40
COVER TOWING EYE TOWING EYE
60
MOUNTING RAIL GUIDE RAIL, RIGHT
60
MOUNTING RAIL GUIDE RAIL, LEFT
80
BLIND RIVET AT COVERING
110
BASIC MOUNTING FOR BUMPER FRONT BUMPER
120
FILLISTER HEAD SCREW BUMPER TO SUPPORT TOP
130
IMPACT ABSORBER CENTRAL
130
IMPACT ABSORBER CENTRAL
130
IMPACT ABSORBER CENTRAL
140
FIXTURE
140
FIXTURE
160
TAPPING SCREW
170
LOCK NUT BUMPER, BOTTOM SECTION 0,5-2,5MM
180
EXPANSION RIVET ORNAMENTAL COVER TO BUMPER
180
RIVET COVERING TO SIDE MEMBER
230
TRIM BUMPER CENTRAL
230
TRIM BUMPER CENTRAL
240
TRIM BUMPER CENTRAL TOP
250
TRIM BUMPER LEFT
250
TRIM BUMPER RIGHT
260
COVER BUMPER AREA CENTRAL
260
COVER BUMPER AREA CENTRAL
260
COVER BUMPER AREA
260
COVER BUMPER AREA CENTRAL
270
COVER BUMPER AREA CENTRAL BOTTOM
310
SUPPORT BUMPER COVER AT BOTTOM
310
SUPPORT BUMPER COVER AT BOTTOM
320
SHEET METAL SCREW FRONT MODULE 4.8X19, J 47253520070424
330
CLIP-TYPE NUT BUMPER TO FRONT MODULE 4,8, J 47253620070424
340
COVER BUMPER AREA CENTRAL
340
COVER BUMPER AREA CENTRAL
340
COVER BUMPER AREA CENTRAL
350
COVER BUMPER AREA CENTRAL
360
COVER BUMPER AREA RIGHT
360
COVER BUMPER AREA LEFT
380
COMPANY SIGN AT BUMPER
390
MOUNTING CLAMP BUMPER LOWER SECTION, J 53092220070910808
390
GROMMET MERCEDES STAR TO REAR LID
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, Replaced By: A1565402000
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, Replaced By: A1565401800
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
400
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM
410
DISTANCE SENSOR OUTSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
410
DISTANCE SENSOR INSIDE LEFT AND RIGHT, TO BE PAINTED PRIOR TO INSTALLATION 9999QFT246L9000 COLORLESS
420
DECOUPLING RING PARKTRONIC SYSTEM
430
MOUNTING CLAMP BUMPER LOWER SECTION, J 53092220070910808
490
COVER MOLDING LEFT AND RIGHT SENSOR
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
500
LICENSE PLATE MOLDING
510
LICENSE PLATE MOLDING
510
LICENSE PLATE MOLDING
520
SCREW COVERING TO FRONT BUMPER
530
LOCK NUT. LOCK PANELLING TO BUMPER
530
NUT RETAINER. LOCK LEFT AND RIGHT SPOILER AT CENTER PIECE
580
BRACKET LEFT FOGLAMP
580
BRACKET RIGHT FOGLAMP
660
BLIND RIVET AT COVERING
700
TRIM BUMPER CENTRAL BOTTOM
700
TRIM BUMPER CENTRAL BOTTOM
710
TRIM BUMPER RIGHT
710
TRIM BUMPER LEFT
720
COVER BUMPER AREA LEFT
720
COVER BUMPER AREA RIGHT
730
COVER BUMPER AREA RIGHT
730
COVER BUMPER AREA LEFT
