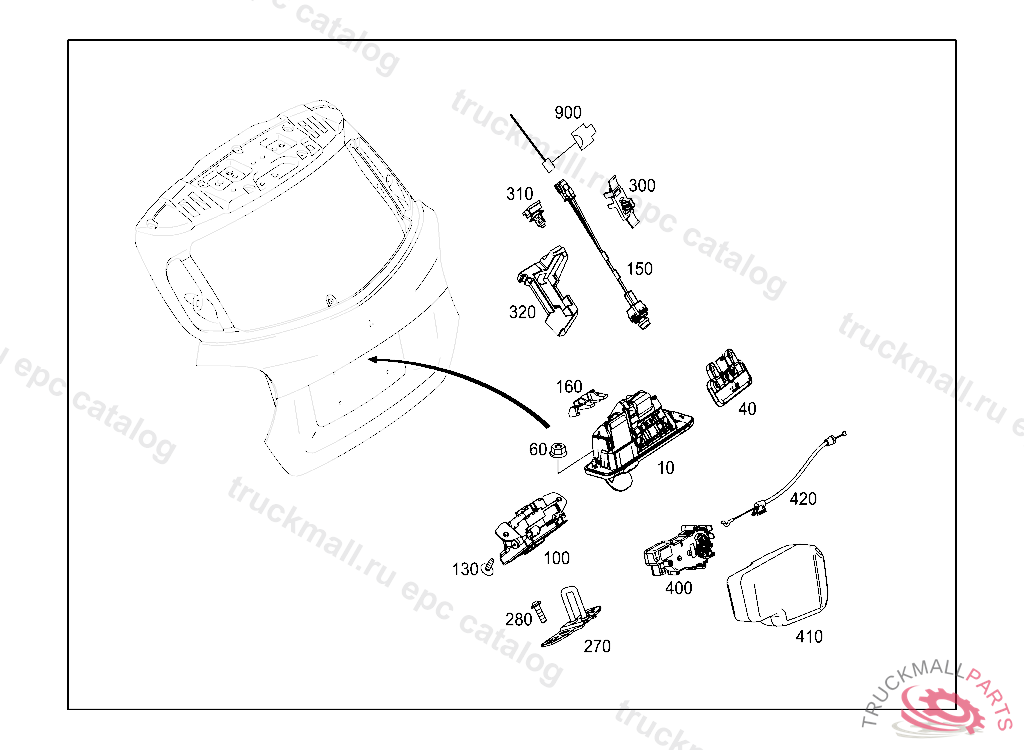

Поз.
Артикул
Описание
10
RELEASE HANDLE REAR-END DOOR RELEASE, A 20150330
10
RELEASE HANDLE AT REAR PANEL DOOR
40
PUSH-BUTTON SWITCH MOULDING TYPE HANDLE, J 53092220070910808
40
PUSH-BUTTON SWITCH TRUNK LID RELEASE
60
NUT , Replaced By: N913023006001
100
LOCK AT REAR PANEL DOOR, F 73330720110717
100
LOCK AT REAR PANEL DOOR, F 18125720080502
130
BOLT LOCK TO REAR PANEL DOOR M6X17,2
150
CAMERA REVERSING CAMERA IN HANDLE STRIP, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
160
BRACKET CONNECTOR, BACKUP CAMERA
270
U-SHAPED STRIKER TO REAR END CENTER ASSEMBLY
280
BOLT LOCK TO REAR PANEL DOOR M6X17,2
300
BRACKET
300
BRACKET LINE ATTACHMENT, J 20130917 N 07658220131018
310
BRACKET PLUG MOUNTING 6.5 - 7 MM
320
BRACKET LINE ATTACHMENT
400
DRIVE POWER CLOSING SYSTEM
410
INSULATION DRIVE
420
CONTROL CABLE REAR PANEL DOOR
900
SOCKET HOUSING TRUNK LID RELEASE SWITCH 4-PIN MQS,S15/1
