Главная
›
Mercedes
›
CAR
›
ML 400 CDI FROM 09/2000
›
163.128
›
35 REAR AXLE
›
195 AXLE HOUSING,REAR
Mercedes A1634350182 - Шланг

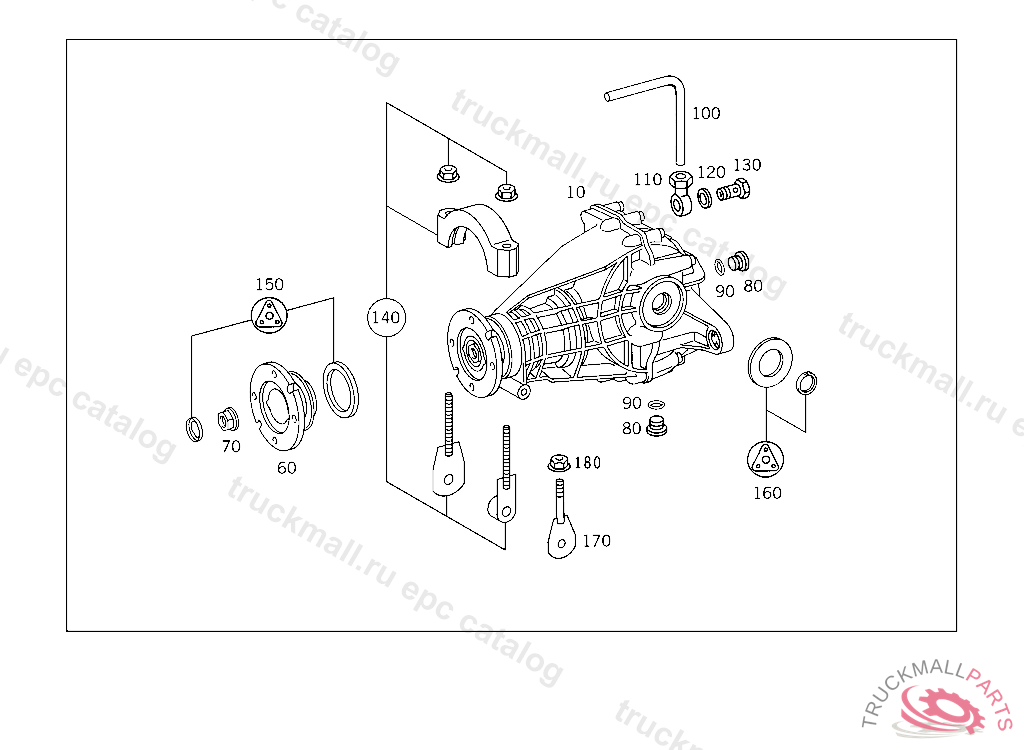

ML 400 CDI FROM 09/2000 163.128
35 REAR AXLE - 195 AXLE HOUSING,REAR
Поз.
Артикул
Описание
10
A1633500714
HOUSINGI3.09
60
A1633530045
FLANGE
70
A1633350072
NUT
80
N000908022011
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
90
A0259974248
SEAL RING
100
A1634350182
HOSE FRONT AXLE BREATHING
110
N915052004003
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
120
N007603010100
SEAL RINGTO 001 431 72 14
130
N915036006101
HOLLOW SCREW COMPRESSED AIR LINE TO OPERATING CYLINDER
140
A1633500085
REINFORCEMENT PARTS KIT
150
A1639970046
SEAL RING GASKET KIT
160
A1639970246
SEAL RING GASKET KIT
170
A1633520028
SHACKLE REINFORCEMENT
180
N913023012003
NUT BRACKET TO CROSS MEMBER
