Главная
›
Mercedes
›
CAR
›
ML 230 TO 09/2000
›
163.136
›
83 HEATING AND VENTILATION
›

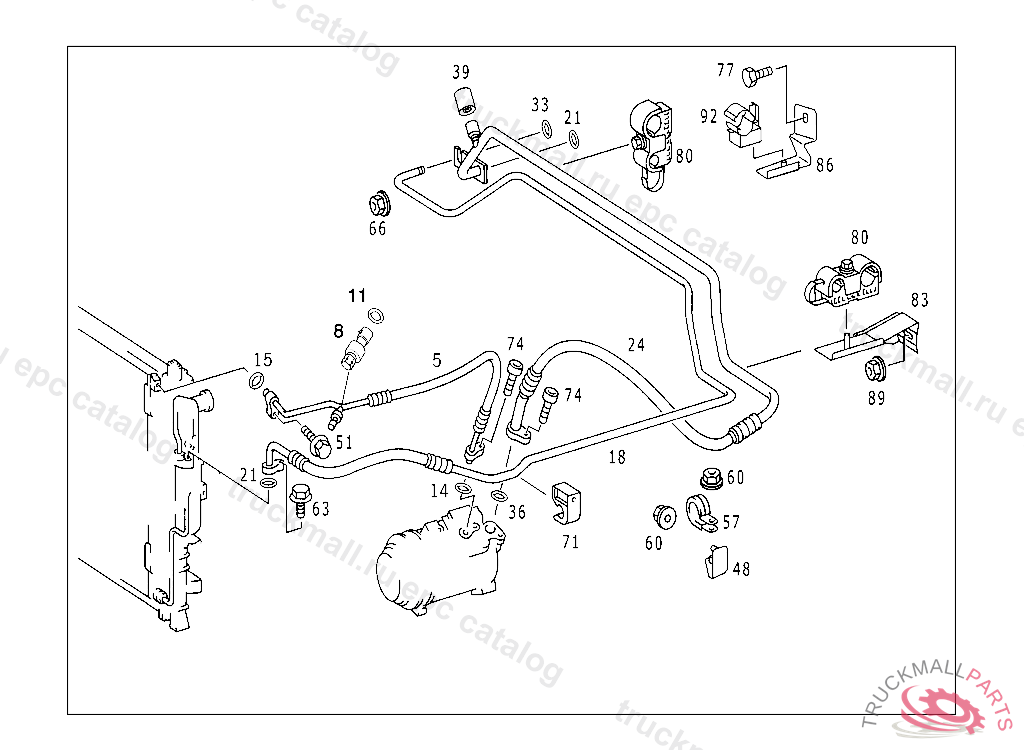

195 REFRIGERANT LINE ARRANGEMENT
Mercedes A1635000272 - Трубка кондиционера
ML 230 TO 09/2000 163.136
83 HEATING AND VENTILATION - 195 REFRIGERANT LINE ARRANGEMENT
Поз.
Артикул
Описание
5
A1635000572
LINE FROM COMPRESSOR TO CONDENSER
8
A1635420418
SENDER UNIT
11
A1639970645
SEAL RING SENSOR
14
A1639970545
SEAL RING
15
A1639970445
SEAL RING
18
A1635000072
LINE DRIER FOR EXPANSION VALVE
18
A1635000272
LINE DRIER FOR EXPANSION VALVE
21
A1639970345
SEAL RING
24
A1635000772
LINE FROM EXPANSION VALVE TO COMPRESSOR
33
A1639970145
SEAL RING
36
A1639970245
SEAL RING
39
A0019888335
CAP REFILLING CONNECTION
63
N304017006019
SCREW , WITH DIESEL ENGINE
66
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
66
N913025006001
NUT , Replaced By: N913023006001
74
N000000000190
SCREW
80
A1635000044
CLAMPING PIECE PIPE LINE TO FIRE WALL
83
A1635000231
BRACKET PIPE LINE TO FIRE WALL
86
A1635000431
BRACKET PIPE LINE TO FIRE WALL
89
N913025006001
NUT , Replaced By: N913023006001
89
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
