Mercedes A1632800238 - Водило планет.перед.

ML 350 FROM 09/2000 163.157

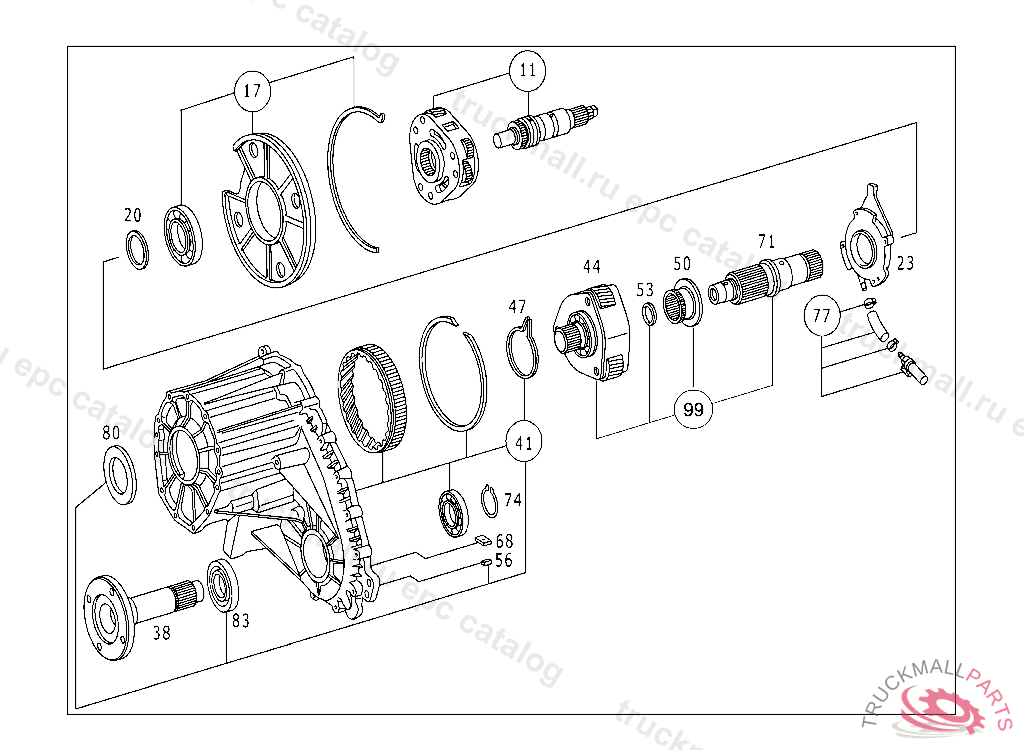

28 TRANSFER CASE - 010 TRANSFER CASE ASSEMBLY IL. 3

Поз.
Артикул
Описание
11
A1632800038
PLANETARY CARRIER , UP TO IDENT-NO. A 077354ORDER ADDITIONALLY ALSO: A 163 280 00 31
17
A1632820087
INTERMEDIATE RING
20
A1632820051
SPACER RING
23
A1632800030
HOUSING
38
A1632820045
COUPLING FLANGE
41
A1632800103
HOUSING
44
A1632800238
PLANETARY CARRIER , A 391987
44
A1632800138
PLANETARY CARRIER , A 391986 X 778320, Replaced By: A1632820002
47
A0039941835
SNAP RING
50
A1632820082
HUB , Replaced By: A1632820002
50
A1632820182
HUB , A 391987
53
A1632820151
SPACER RING , Replaced By: A1632820002
53
A1632820251
SPACER RING , A 391987
56
N001481013007
CLAMPING SLEEVE MAIN SHAFT TO A 976 262 11 05
68
A1632770098
LIFTING MAGNET
71
A1632800124
COUNTERSHAFT , A 391987
71
A1632800024
COUNTERSHAFT , Replaced By: A1632820002
74
A0039941935
SNAP RING
77
A1632800095
OIL FILTER
80
A1632840360
SEAL RING
83
A1632840060
SEAL RING
99
A1632820002
DRIVE SHAFT
