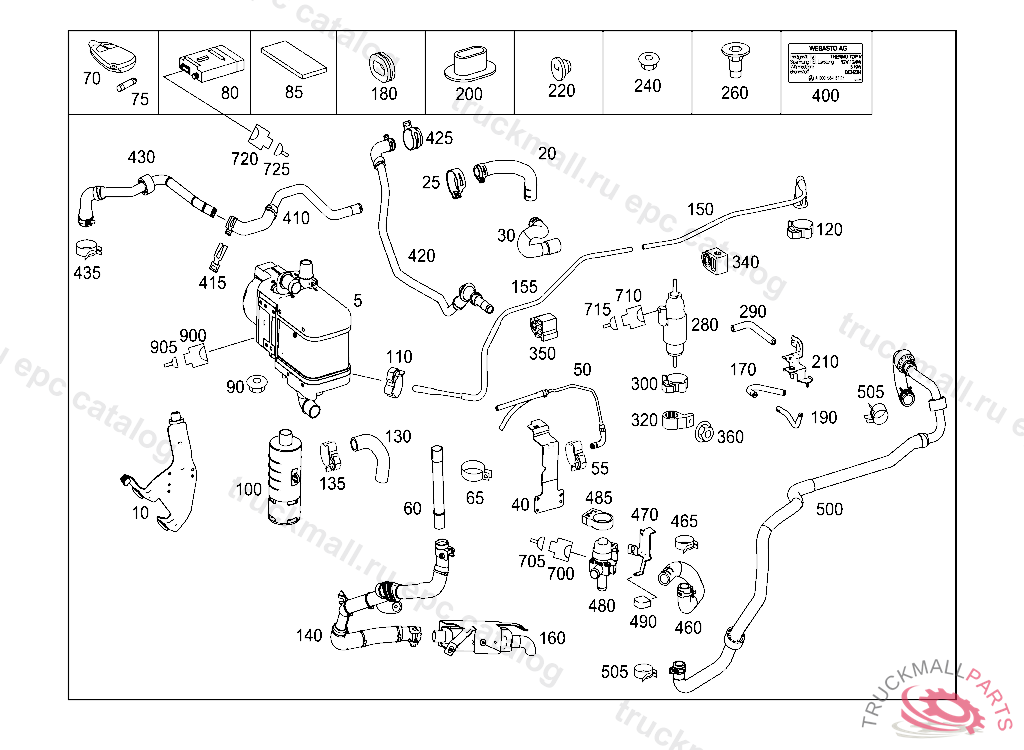

Поз.
Артикул
Описание
5
HEATING UNIT ADDITIONAL HEATER, A 53600720090709800
5
HEATER ADDITIONAL HEATER, A 53600720090709800, Replaced By: A1645001698
5
HEATER ADDITIONAL HEATER, A 53600720090709800, Replaced By: A1645002298
5
HEATER ADDITIONAL HEATER, A 53600720090709800, Replaced By: A1645000898
10
BRACKET
20
HOSE FROM HEATER UNIT TO PUMP
25
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
30
HOSE FROM HEATER UNIT TO VALVE
40
BRACKET
50
HOSE
50
FUEL HOSE , Replaced By: A1644760626
55
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
60
EXHAUST PIPE
65
CLAMP EXHAUST PIPE
70
TRANSMITTER , Replaced By: A1668201097
70
TRANSMITTER INDEPENDENT HEATING, A 74932420041029805 E 02000020070101805
75
BATTERYIEC 86-MN 21
75
BATTERY
80
RECEIVER INDEPENDENT HEATING, F 67877420050114805
80
RECEIVER , Replaced By: A1668201497
85
INTERMEDIATE LAYER ANTENNA COMBINER TO LATERAL LEFT COVERING IN LUGGAGE COMPARTMENT
90
NUT-AND-WASHER ASSEMBLY. NUT , Replaced By: N910104006000
100
MUFFLER
110
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
110
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
120
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
130
HOSE
135
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
135
CLAMP FUEL LINE LEADING TO FEED PUMP, F 155735 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO F 155734 WITH CODE 808
140
EXHAUST PIPE
150
FUEL LINE FROM FUEL TANK TO FUEL-OIL PUMP, A 48000720081001809
150
FUEL LINE FROM FUEL TANK TO FUEL-OIL PUMP, A 53600720090709800
155
FUEL LINE FROM FUEL-OIL PUMP TO HEATER, A 35518820071115 A 53600720090709800
155
FUEL LINE FROM FUEL-OIL PUMP TO HEATER, A 35518720071115
155
FUEL LINE FROM FUEL-OIL PUMP TO HEATER, A 48000720081001809
155
FUEL LINE FROM FUEL-OIL PUMP TO HEATER, A 35518720071115, Replaced By: A1644707264
160
MUFFLER EXHAUST PIPE HEATER
170
FUEL HOSE , A 53600720090709800
170
FUEL HOSE , A 48000720081001809
180
RUBBER MOUNT
190
FUEL HOSE , A 53600720090709800
200
BUSHING CONDENSER TO RADIATOR
210
BRACKET , A 32997220070918
210
BRACKET , A 48000720081001809
210
BRACKET , A 32997320070918 A 53600720090709800
220
RUBBER MOUNT
240
NUT , Replaced By: N913023006001
260
HEXAGON NUT W COLLAR BRACKET MOUNTING
280
FUEL PUMP
290
MOLDED HOSE FUEL LINE, A 04405120120217
300
CLAMP HOSE TO PUMP 9 MM - 9.5 MM
320
BRACKET FUEL PUMP TO BRACKET
340
LINE HOLDER FASTENING, RIGHT FRONT WHEEL BRAKELINEAT FIREWALL, Replaced By: A0029951577
350
CLAMP FUEL LINE TO SIDE MEMBER,B 926099
360
NUT COVERING TO CAB FIRE WALL
400
GUIDE SIGN ADDITIONAL HEATER
410
HOSE HEAT EXCHANGER TO HEATER UNIT
415
CLAMP25 MM
420
HOSE HEATER UNIT TO SEPARATION POINT
425
CLAMP25 MM
430
HOSE HEATER UNIT TO EXPANSION RESERVOIR
435
CLAMP25-40X13 MM
460
HOSE
465
CLAMP25 MM
470
BRACKET
480
VALVE
485
ELASTOMER BEARING FASTENING VALVE
490
CAP AT BRACKET
500
HOSE FROM VALVE TO HEAT EXCHANGER
505
CLAMP ADVANCE ENGINE 27-30 MM
505
CLAMP25 MM
700
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
705
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
705
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
710
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
715
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
715
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
720
PLUG HOUSING DOOR SEPARATION POINT,B-PILLAR
725
CONTACT BUSHINGR 27, 0.75 MM2
900
SOCKET-OUTLET DISTANCE RADAR CONTROL UNIT 8-PIN CODE A MQS,B93.4
900
PIN BUSHING HOUSING INDICATOR SWITCH,POWER TAKE-OFF S23.2/.3, 2 PIN
905
GASKET YELLOW 0.2-0.5MM2,126373
905
GASKET. BLIND PLUG BLUE
905
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
905
CONTACT SPRING. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 1.5-2.5 MM2, PIN 57 - 62
905
CORE BUNDLE SEALING. WIRE SEAL WITHE 1.0-2.5 MM2, PIN 57 - 62
905
STOP PLUG. PLUG
