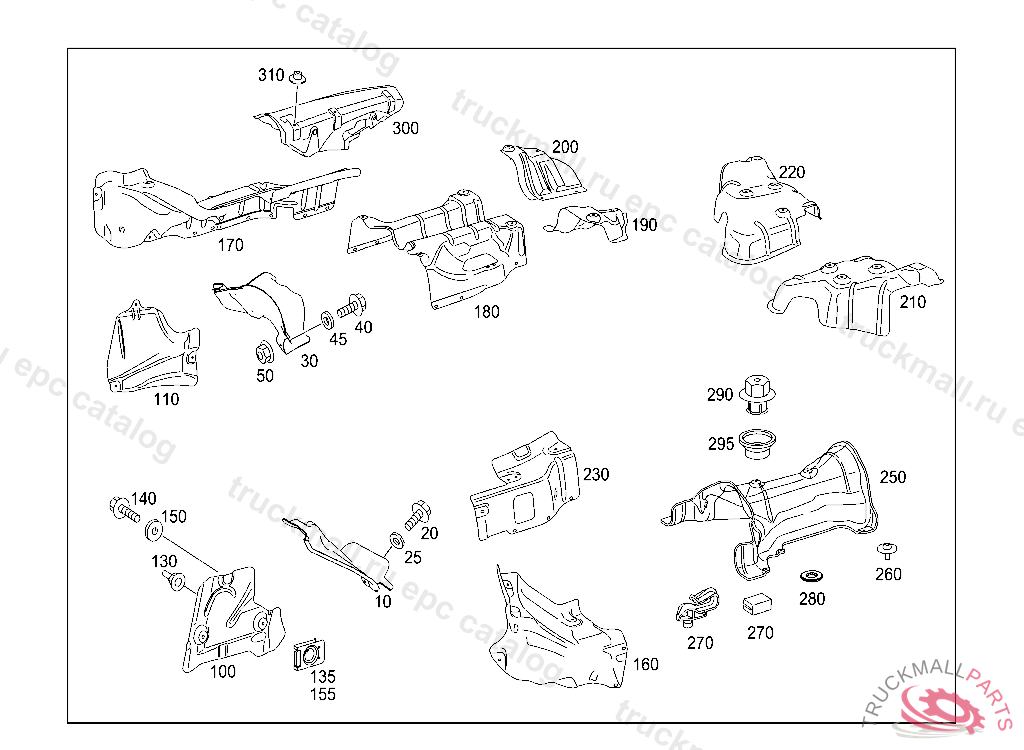

Поз.
Артикул
Описание
10
SCREENING SUBFRAME, RIGHT
20
SCREW CHARGE PLUNGER UNIT
25
WASHER COMPRESSED AIR LINE TO BRACKET
30
SCREENING PROPELLER SHAFT
40
BOLT SHIELDING
40
SCREW CHARGE PLUNGER UNIT
45
WASHER COMPRESSED AIR LINE TO BRACKET
100
SCREENING LEFT FLOOR
110
SCREENING RIGHT FLOOR
110
SCREENING RIGHT FLOOR
130
HEXAGON NUT W COLLAR BRACKET MOUNTING
135
LOCK NUT. SPRING NUT MOUNTING PARTS
140
SCREW COVER PLATE TO COVER PLATE M 6 X 12
140
SCREW PUMP TO BRACKET
150
WASHER COMPRESSED AIR LINE TO BRACKET
155
LOCK NUT. SPRING NUT MOUNTING PARTS
155
SPRING NUT , A 32101520070928808
160
SCREENING LEFT SIDE MEMBER
170
SCREENING MAIN FLOOR,ON THE RIGHT
170
SHIELDING MAIN FLOOR,ON THE RIGHT, Replaced By: A1646824471
180
SHIELDING ABOVE CENTRAL MUFFLER, A 48000720081001809
180
SCREENING ABOVE CENTRAL MUFFLER
180
SCREENING ABOVE CENTRAL MUFFLER, A 53600720090709800, Replaced By: A1646824071
180
SHIELDING ABOVE CENTRAL MUFFLER, A 53600720090709800, Replaced By: A1646824171
180
SHIELDING ABOVE CENTRAL MUFFLER, A 53600720090709800, Replaced By: A1646822571
190
SHIELDING CENTRAL LEFT FLOOR, A 48000720081001809
190
SCREENING CENTRAL LEFT FLOOR, A 53600720090709800
200
SHIELDING CENTRAL RIGHT FLOOR, Replaced By: A1646823671
200
SCREENING CENTRAL RIGHT FLOOR
210
SCREENING REAR END FLOOR,LEFT
220
SCREENING REAR FLOOR ASSEMBLY RIGHT
230
SHIELDING REAR END FLOOR,LEFT, A 20500520061115
230
SCREENING REAR END FLOOR,LEFT, A 20500620061115
250
SCREENING PLATE BELOW FUEL TANK
260
TS BOLT ATTACHMENT SHIELD 5X12
270
HOOK ATTACHMENT SHIELD
270
SUPPORT BUFFER TO SHIELD, A 39867620080307
280
WASHER SHIELD TO FUEL TANK
300
INSULATION TRANSMISSION TUNNEL,OUTSIDE
310
PLASTIC NUT. NUT
