Mercedes A2721420021 - Экран

ML 450 4MATIC HYBRID 164.195

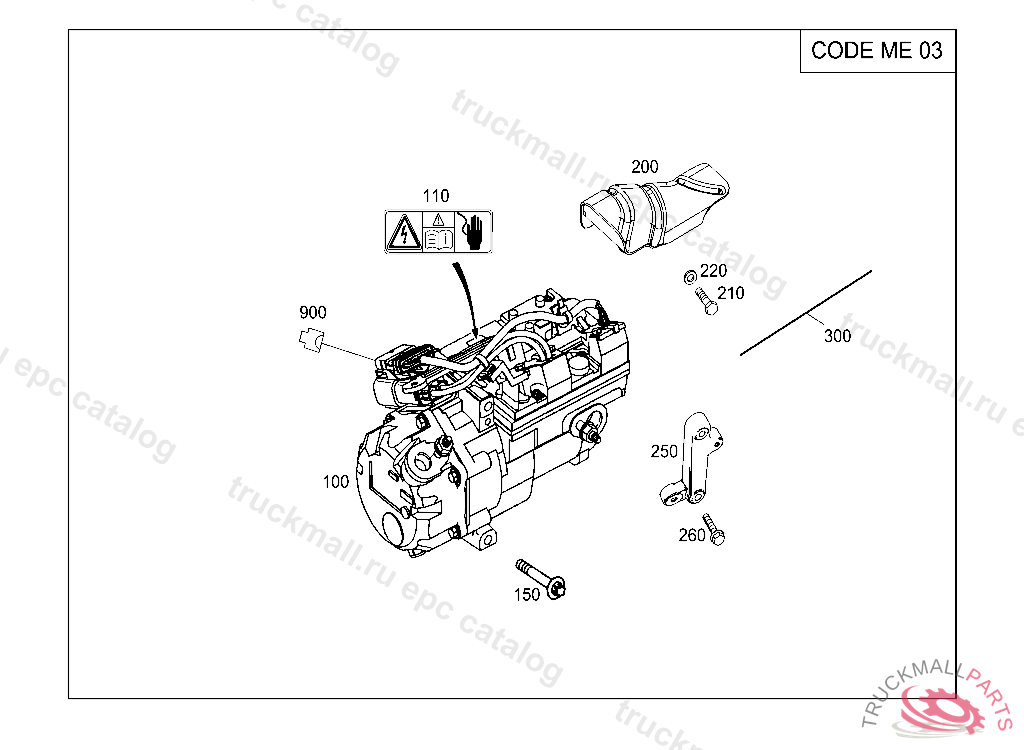

83 HEATING AND VENTILATION - 190 A/C COMPRESSOR IL. 2

Поз.
Артикул
Описание
100
A1648300160
REFRIGERANT COMPRESSOR
110
A0005844147
WARNING SIGN
150
N910105008024
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
200
A2721420021
SCREENING PLATE COMPRESSOR
210
N304017006016
SCREW PUMP TO BRACKET
220
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
250
A2722340139
BEAM TO CRANIKCASE
260
N910105008014
SCREW CLAMP ON BRACKET
260
N910105008024
HEXAGON HEAD BOLT. SCREW REAR EXHAUST PIPE TO MUFFLER M8 X 110 MM
300
A1644406641
ELECTRICAL WIRING HARNESS REFRIGERANT COMPRESSOR
