Mercedes N910002004111 - Клипса

GL 320 CDI 4MATIC / GL 350 CDI 4MATIC 164.822

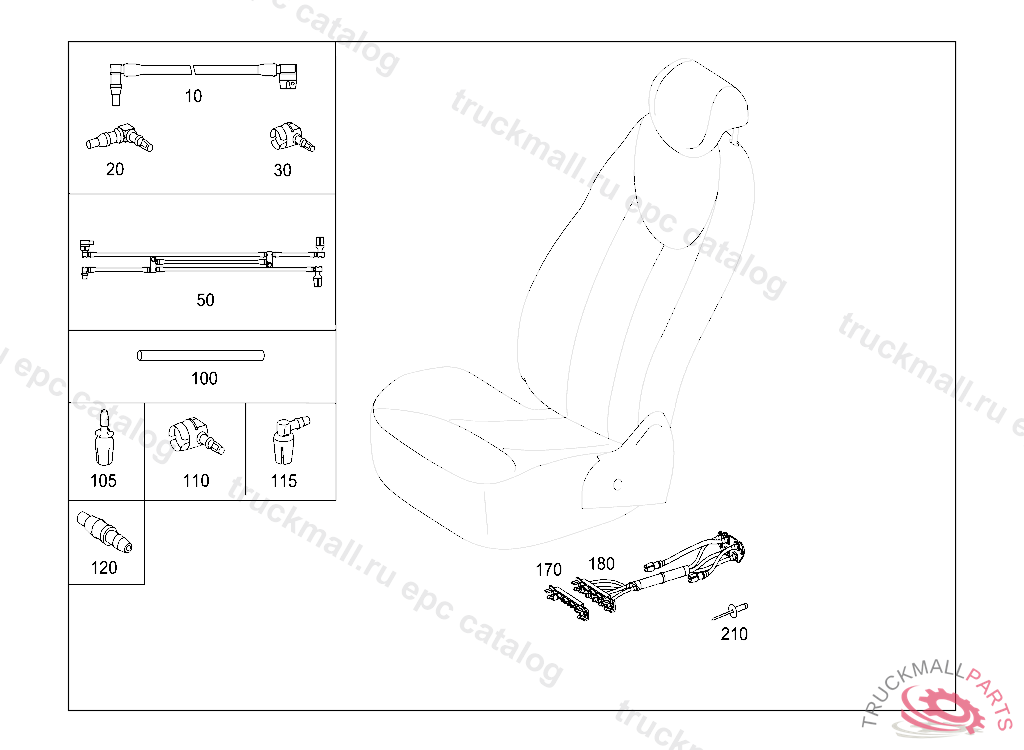

80 VACUUM SYSTEM / HYDRAULIC SYSTEM - 135 ORTHOPAEDIC FRONT BACKREST

Поз.
Артикул
Описание
10
A1648002515
HOSE ASSEMBLY LEFT SEAT, A 37349120080108
10
A1648000815
LINE RIGHT SEAT 3900MM, A 37349020080108
10
A1648002615
HOSE ASSEMBLY RIGHT SEAT, A 37349120080108
10
A1648000715
LINE LEFT SEAT 2470MM, A 37349020080108
20
A2118050044
PLUG NATURAL 6 MM
30
A2118000253
CLUTCH HEAD RESTRAINT VALVE BLOCK
50
A1648000915
LINE MULTI-CONTOUR BACKREST
100
A1179970982
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
105
A0069973689
RS PLUG CONNECTION REPAIR SOLUTION TULIP SOCKET B15
105
A0069973989
RS PLUG CONNECTION REPAIR SOLUTION LONG SOCKET B8
105
A0069974189
RS PLUG CONNECTION
105
A0069973589
RS PLUG CONNECTION LINE TO VALVE BLOCK
110
A0069973889
RS PLUG CONNECTIONB20
110
A0069974089
RS PLUG CONNECTIONB21
115
A0069973789
RS PLUG CONNECTION
120
A0069972389
PLUG CONNECTION
170
A2118050144
COUPLER STRIP HOSE LINE
180
A2118000254
PLUG RIGHT BACKREST FRAME
210
N910002004111
RIVET
