Mercedes A1643300189 - ВЕНТИЛЯТОР

GL 500 4MATIC / GL 550 4MATIC USA/JAPAN 164.886

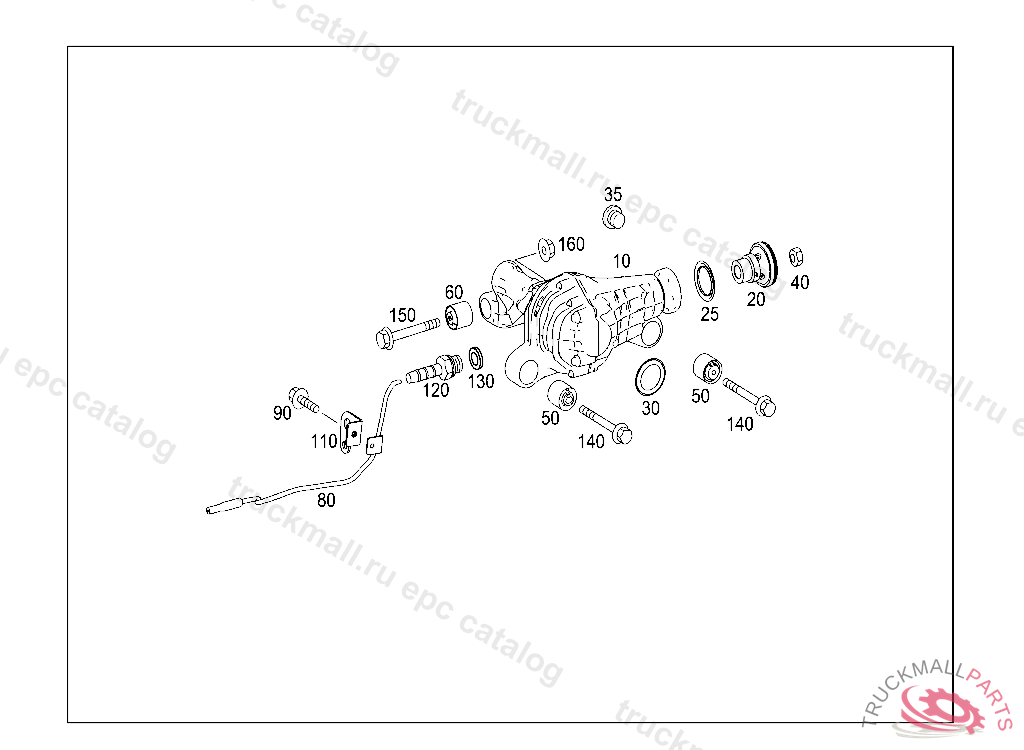

33 FRONT AXLE - 195 AXLE HOUSING,FRONT

Поз.
Артикул
Описание
10
A1643302202
AXLE HOUSINGI3,70
20
A1643380020
FLANGE FRONT AXLE GEAR
25
A1643370059
SHAFT SEAL REAR
30
A1643370159
SHAFT SEAL LEFT
35
A1643310056
SCREW PLUG WITH SEAL RING
40
A0029903954
LOCKNUT FLANGE MOUNTING
50
A1643331314
BEARING REAR LEFT AND RIGHT
60
A1643330014
BEARING RIGHT, Replaced By: A1663330600
80
A1643300189
BREATHER FRONT AXLE GEAR
90
N910143006000
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
110
A1643300074
BRACKET BREATHER LINE
120
A0079978872
FITTING BREATHER LINE
130
N007603010100
SEAL RINGTO 001 431 72 14
140
N000000004026
HEXAGON HEAD BOLT REAR FASTENING 12X80
150
N000000004027
HEXAGON HEAD BOLT BEARING BRACKET TO FRONT AXLE, THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: N910105010010
160
N913023010002
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
