Mercedes A6510902001 - ФИЛЬТР ВОЗДУШНЫЙ В СБОРЕ

ML 250 CDI 4MATIC BlueEFFICIENCY 166.003

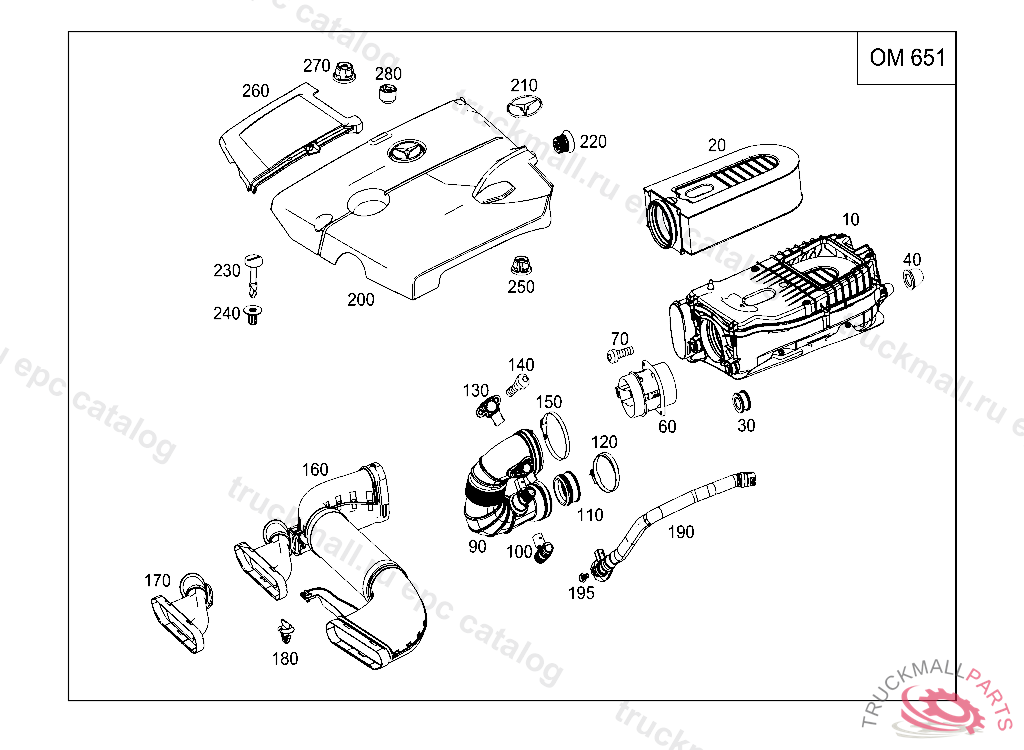

52 CHASSIS SHEET METAL / AIR INTAKE - 135 AIR INTAKE,DIESEL VEHICLES IL. 1

Поз.
Артикул
Описание
10
A6510901801
DAMPER FILTER
10
A6510901401
DAMPER FILTER
10
A6510902001
DAMPER FILTER
20
A6510940104
AIR FILTER INSERT
30
A6510940222
BEARING RACE TO FRONT AIR FILTER HOUSING
40
A6510940122
RUBBER BUMPER TO REAR AIR FILTER HOUSING, Replaced By: A6510940322
60
A6450900048
MASS AIR FLOW SENSOR
60
A6510900248
MASS AIR FLOW SENSOR
70
N000000002179
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
90
A6510904537
CLEAN AIR LINE
90
A6510901042
CLEAN AIR LINE
90
A6510900337
AIR LINE
100
A0000160030
VENTILATION PIPE
110
A6510940051
COMPENSATING RING AIR LINE AT CHARGER
120
A0069972690
LOOM TIE. CLAMP HOSE FASTENING
130
A0061539728
PRESSURE SENSOR
130
A0051535028
SENDER UNIT
140
A0059902512
BOLT TO PRESSURE SENSOR
150
A0069976090
CLAMP W DRIVE A WASHER. CLAMP COVERING TO CAB
160
A6510901142
RAW AIR LINE AIR INTAKE
170
A6510941197
RAW AIR LINE AIR INTAKE
180
A0029880542
CATCH COVERING TO COVERING
190
A6510101582
BLEED HOSE TO AIR LINE
195
A0059902512
BOLT TO PRESSURE SENSOR
200
A6510101667
COVER LEFT
200
A6510108412
ENGINE COVER LEFT
210
A2037580058
MERCEDES STAR
220
A6511410087
ELASTOMER BEARING FASTENING, REAR COVER
230
A0009981995
ROTARY CATCH FASTENING, FRONT COVER
240
A0019921350
COLLAR SLEEVE FASTENING, FRONT COVER
250
A6420940785
RUBBER BUMPER
260
A6510101767
COVER RIGHT, L 00076820121130 M 00076820121130 A 13822120120928803
270
A6420940785
RUBBER BUMPER
280
A2781410087
ELASTOMER BEARING FASTENING, REAR RIGHT COVER
