Поз.
Артикул
Описание

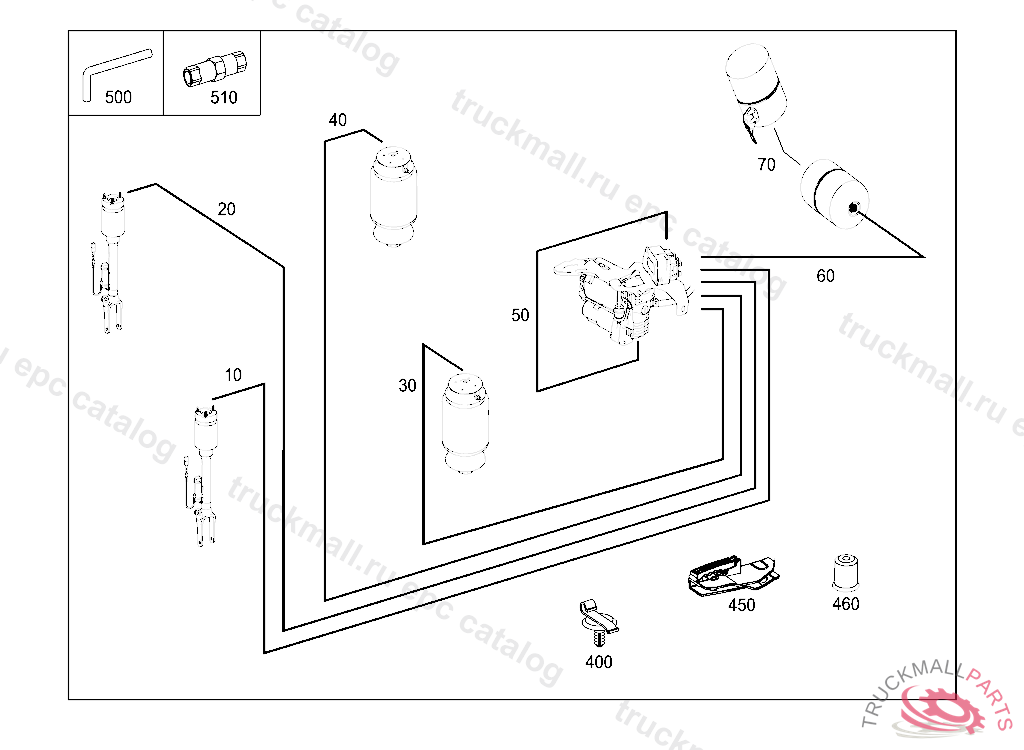

10
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
10
COMPRESSED AIR LINE VALVE UNIT TO LEFT FRONT SUSP. STRUT, Replaced By: A2203271045
20
COMPRESSED AIR LINE VALVE UNIT TO RIGHT FRONT SUSP. STRUT, Replaced By: A2203271045
20
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
30
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
30
COMPRESSED AIR LINE VALVE UNIT TO SUSPENSION STRUT, LEFT REAR, Replaced By: A2203271045
30
COMPRESSED AIR LINE VALVE UNIT TO SUSPENSION STRUT, LEFT REAR, Replaced By: A2203271045
40
COMPRESSED AIR LINE VALVE UNIT TO SUSPENSION STRUT, RIGHT REAR, Replaced By: A2203271045
40
COMPRESSED AIR LINE VALVE UNIT TO SUSPENSION STRUT, RIGHT REAR, Replaced By: A2203271045
40
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
50
COMPRESSED AIR LINE COMPRESSOR TO VALVE UNIT, L 00034220120831 M 00034220120831 A 12082120120823
50
COMPRESSED AIR LINE COMPRESSOR TO VALVE UNIT, L 00034320120831 M 00034320120831 A 12082220120823
60
COMPRESSED AIR LINE VALVE BLOCK CONNECTION "SP" TO PRESSURE RESERVOIR, Replaced By: A2203271045
60
COMPRESSED AIR LINE VALVE BLOCK CONNECTION "SP" TO PRESSURE RESERVOIR, Replaced By: A2203271045
60
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
70
COMPRESSED AIR LINE BETWEEN PRESSURE RESERVOIR
400
LINE HOLDER ENGINE HOOD HINGE,LEFT
450
LINE FASTENER COMPRESSED AIR LINE MOUNTING
460
PROTECTIVE CAP GROUND CONNECTION
500
PRESSURE LINE REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY ALSO ORDER CONNECTOR
510
CONNECTOR REPAIR SIZE
