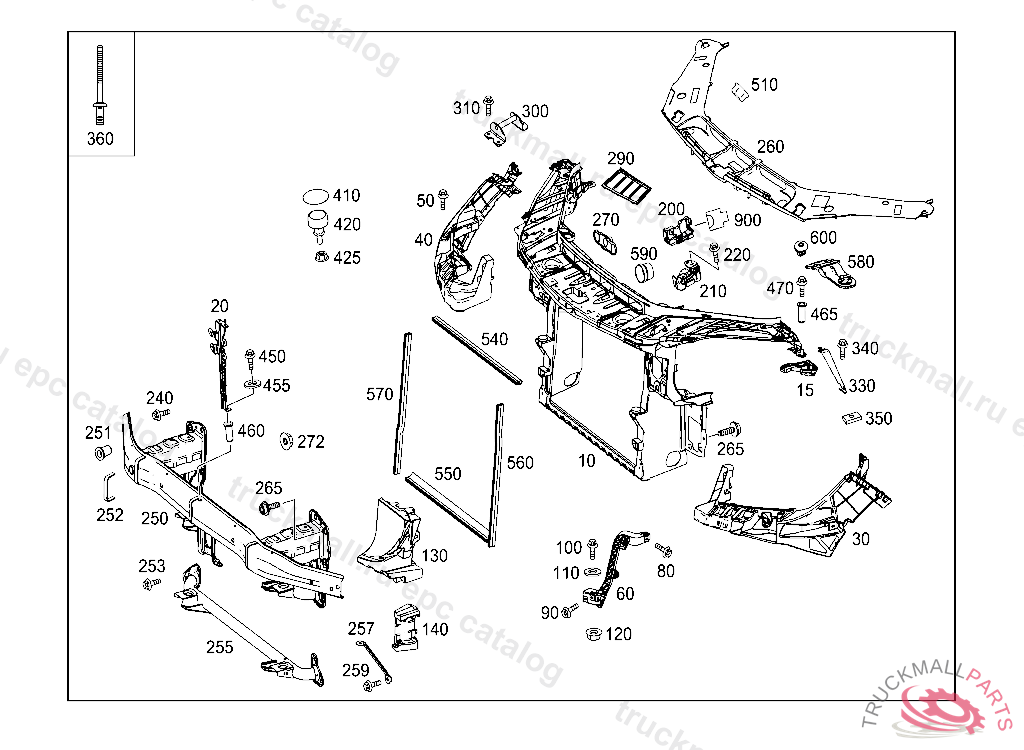

Поз.
Артикул
Описание
10
CROSS MEMBER RADIATOR MOUNT, L 00034320120831 M 00034320120831 A 12082220120823
10
CROSS MEMBER RADIATOR MOUNT, A 12082120120823
10
CROSS MEMBER RADIATOR MOUNT, L 00000120120601 M 00000120120601 A 12082220120823, Replaced By: A1666201101
15
FIXTURE MOUNTING HEADLAMP LEFT
15
FIXTURE MOUNTING HEADLAMP RIGHT
20
CONSOLE DISTANCE SENSOR FASTENING
30
FRAME FOR LIGHT LEFT
40
FRAME FOR LIGHT RIGHT
50
BOLT LOWER SUPPORT M6X19
60
CONSOLE LEFT SUPPORT
60
CONSOLE RIGHT SUPPORT
80
BOLT LOWER SUPPORT M6X19
90
BOLT LOWER SUPPORT M6X19
100
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
110
WASHER LINE MOUNTING
120
NUT-AND-WASHER ASSEMBLY BRACKET TO FLOOR M6
130
AIR DUCT TO RIGHT RADIATOR
130
AIR DUCT TO LEFT RADIATOR
140
AIR DUCT TO LEFT RADIATOR
140
AIR DUCT TO RIGHT RADIATOR
200
SWITCH FOR ANTI-THEFT ALARM, A 21281620080731 L 01422120080731 V 00079320080731 F 23142420080731 L 10000020081016
200
SWITCH HOOD CATCH RIGHT
210
ENGINE HOOD CATCH LEFT AND RIGHT
220
HEXALOBULAR BOLT. SCREW
240
SCREW SPEED SENSOR TO REAR AXLE
250
CROSS MEMBER
250
CROSS MEMBER
250
CROSS MEMBER
251
RIVET NUT. RIVETED NUT FEED LINE TO TRANSMISSION
252
ADHESIVE STRIP
253
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
255
CROSS MEMBER LOWER PART
255
CROSS MEMBER LOWER PART
257
STRUT LEFT
257
STRUT RIGHT
259
SCREW. HEXALOBULAR BOLT MOUNTING FRAME TO SUPPORT M 8X30
260
COVER AIR DUCTING
265
PAN HEAD SCREW A WASHER CROSS MEMBER TO SIDE MEMBERS
270
COVER CENTRAL
272
NUT-AND-WASHER ASSEMBLY EVAPORATOR HOUSING TO CROSSMEMBER M6
290
COVER MOLDING CROSS MEMBER,LEFT
290
COVER MOLDING CROSS MEMBER,RIGHT
300
RETAINING HOOK FOR SAFETY HOOK TO ENGINE HOOD
310
HEXALOBULAR BOLT. SCREW
330
STRUT RIGHT
330
STRUT LEFT
340
BOLT LOWER SUPPORT M6X19
350
LOCK NUT. SPRING NUT HEADLINER TO BODY
360
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
410
INTERMEDIATE LAYER PROTECTION AGAINST SCORING, RIGHT
420
STOP BUFFER ENGINE HOOD REST TO STIFFENING
425
NUT , Replaced By: N913023006001
450
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
450
SCREW, SPECIAL SHAPE FRONT MODULE M6X40
455
WASHER LINE MOUNTING
460
CLINCH NUT FENDER TO LEFT A-PILLAR
465
CLINCH NUT FENDER TO LEFT A-PILLAR
470
SCREW, SPECIAL SHAPE FRONT MODULE M6X40
510
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
540
SEAL
550
SEAL
560
SEAL
570
SEAL
580
CONSOLE , DISCONTINUED, PART NO LONGER REQUIRED
600
RETAINING CAP
900
PLUG HOUSING ENGINE HOOD CONTACT FOR ANTI-THEFT ALARM SYSTEM 2-PIN MQS,S62
900
ELECTRICAL WIRING HARNESS ENGINE HOOD CONTACT SWITCH, LEFT S62/43
