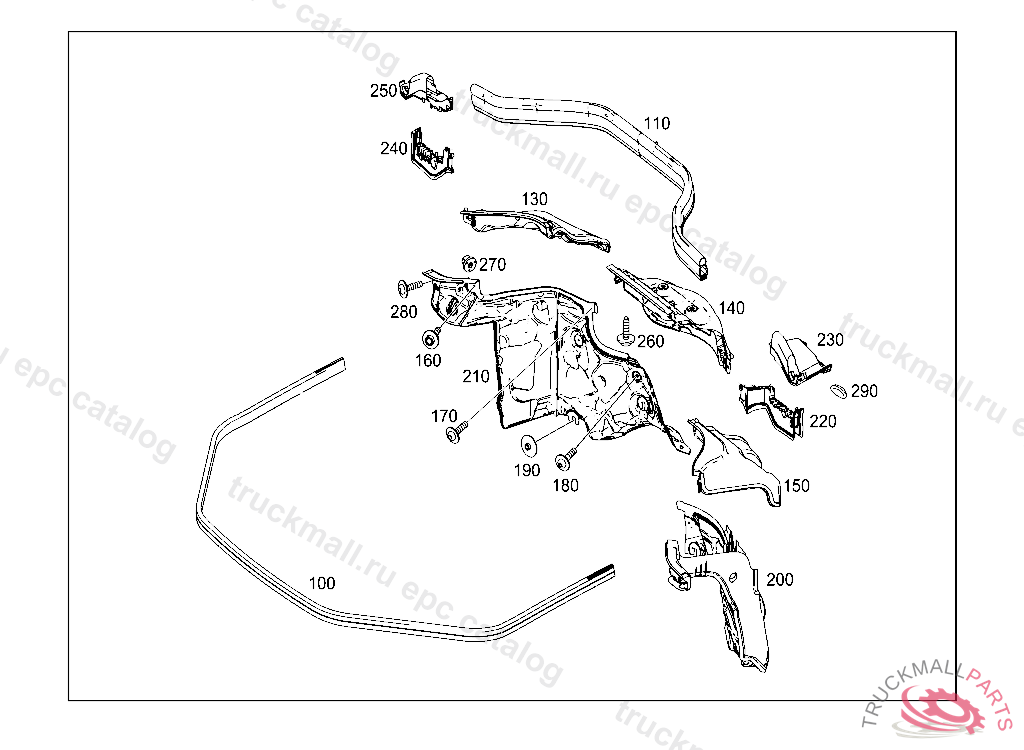

Поз.
Артикул
Описание
100
ENGINE HOOD SEAL ENGINE HOOD,FRONT,BEHIND RADIATOR GRILLE SHELL
110
ENGINE HOOD SEAL ENGINE HOOD TO FIRE WALL
130
PARTITION RIGHT COVER PLATE
130
PARTITION RIGHT COVER PLATE
140
PARTITION INSULATION,CENTRAL
140
PARTITION INSULATION,CENTRAL
150
PARTITION LEFT SOUNDPROOFING
150
PARTITION LEFT SOUNDPROOFING
150
PARTITION LEFT SOUNDPROOFING
160
BOLT BUMPER MOUNTING BELOW REAR PANEL DOOR 5X21
170
PAN HEAD SCREW. SCREW GROUND CONNECTION
180
PAN HEAD SCREW. SCREW GROUND CONNECTION
190
NUT INSULATION AND BRACKET TO BODY
200
PARTITION BOTTOM LEFT
200
PARTITION BOTTOM LEFT
200
PARTITION BOTTOM LEFT
210
PARTITION BOTTOM RIGHT
210
PARTITION BOTTOM RIGHT
210
PARTITION BOTTOM RIGHT
210
PARTITION BOTTOM RIGHT
210
PARTITION BOTTOM RIGHT, Replaced By: A1666209000
220
FRONT END INSULATION FRONT BOTTOM LEFT
230
FRONT END INSULATION FRONT TOP LEFT
240
FRONT END INSULATION FRONT BOTTOM RIGHT
250
FRONT END INSULATION FRONT TOP RIGHT
260
SCREW-AND-WASHER ASSEMBLY SERVICE FLAP M6X20
270
NUT VALVE TO BRACKET
280
PAN HEAD SCREW. SCREW GROUND CONNECTION
290
EXPANSION PLUG
