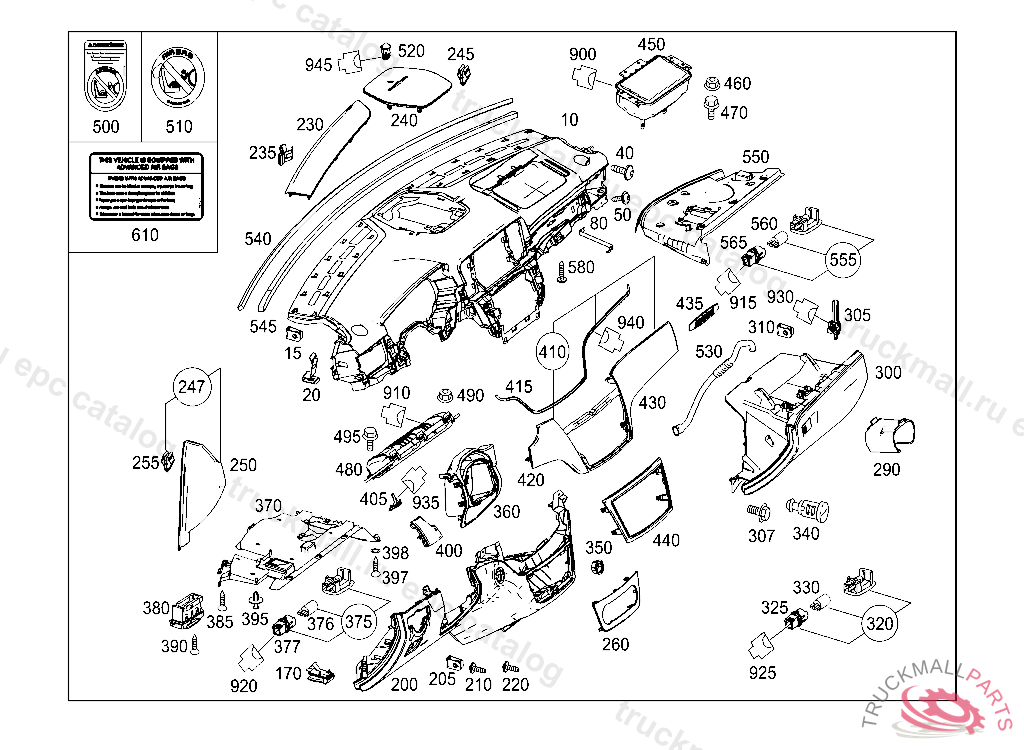

Поз.
Артикул
Описание
10
INSTRUMENT PANEL
10
INSTRUMENT PANEL
10
INSTRUMENT PANEL
10
INSTRUMENT PANEL
10
INSTRUMENT PANEL
15
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
20
CLIP BRACKET MOUNTING
40
HEXALOBULAR BOLT FASTENING BRACKET LEFT M6X20
50
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
80
BRACKET MOUNTING OF INSTRUMENT PANEL
170
RELEASE HANDLE ENGINE HOOD RELEASE CABLE
170
RELEASE HANDLE FOR ENGINE HOOD CABLE, CLIPPED, Replaced By: A2048800120
200
INSTRUMENT PANEL BOTTOM
200
INSTRUMENT PANEL BOTTOM
200
INSTRUMENT PANEL BOTTOM, 9E38 X06/X11/X27QFT166A3025 BLACK
205
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
210
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
210
TAPPING SCREW LIGHTING UNIT TO LATERAL STIFFENING 4.8X25
210
HEXALOBULAR BOLT FASTENING BRACKET LEFT M6X20
220
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
230
COVER GRILLE RIGHT
230
COVER GRILLE RIGHT
230
COVER GRILLE LEFT
230
COVER GRILLE LEFT
235
CLIP AT COVERING
240
COVER GRILLE INSTRUMENT PANEL,CENTER
240
COVER GRILLE INSTRUMENT PANEL,CENTER
240
COVER GRILLE INSTRUMENT PANEL,CENTER
240
COVER GRILLE INSTRUMENT PANEL,CENTER
245
CLIP PANELLING
247
COVER MOLDING LATERAL RIGHT
247
COVER MOLDING LATERAL RIGHT
250
COVER LEFT
250
COVER RIGHT
255
CLIP PANELLING
260
COVER OPERATING UNIT, HEATER AND AIR COND.
290
BRACKET REMOTE CONTROL, A 02295520080930809
300
GLOVE BOX , 9E38 X06/X11/X27QFT166A3240 BLACK
300
GLOVE BOX
300
GLOVE BOX
300
GLOVE BOX , 9E38 X06/X11/X27QFT166A3240 BLACK
300
GLOVE BOX
300
GLOVE BOX
300
GLOVE BOX
300
GLOVE BOX
305
ROTATIONAL DAMPER GLOVE COMPARTMENT LID
305
ROTATIONAL DAMPER GLOVE COMPARTMENT
307
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
310
CLIP FASTENER MOUNTING, FOOTWELL COVER DRIVER SIDE 4,2
320
INTERIOR LAMP UNDER SUN VISOR, J 42086420061222
325
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
330
BULBTO A 6955407048/7148,3825400311/0411
340
TUMBLER GLOVE COMPARTMENT, THEFT-RELEVANT PART
350
TRIM RING STEERING LOCK, 2A17QFT166A3260 SILVER SHADOW
360
COVER
360
COVER MOLDING
370
COVER, FOOTWELL BOTTOM LEFT
375
INTERIOR LAMP UNDER SUN VISOR, J 42086420061222
376
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
377
BULBTO A 6955407048/7148,3825400311/0411
380
BRACKET DIAGNOSIS PLUG SOCKET,V 202043
390
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
397
SCREW W COLLAR A DRIVEM5X35
398
WASHER FRAME-TYPE INTEGRAL SUPPORT,LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
400
ORNAMENTAL TRIM LEFT
405
OPTICAL FIBER IN INSTRUMENT PANEL AT LEFT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
410
ORNAMENTAL TRIM RIGHT
415
OPTICAL FIBER INSTRUMENT PANEL,CENTER
420
ORNAMENTAL TRIM CENTRAL
420
ORNAMENTAL TRIM CENTRAL
420
ORNAMENTAL TRIM CENTRAL
420
ORNAMENTAL TRIM CENTRAL
420
ORNAMENTAL TRIM CENTRAL
420
ORNAMENTAL TRIM CENTRAL
430
ORNAMENTAL TRIM RIGHT
430
ORNAMENTAL TRIM RIGHT
430
ORNAMENTAL TRIM RIGHT
430
ORNAMENTAL TRIM RIGHT
430
ORNAMENTAL TRIM RIGHT
430
ORNAMENTAL TRIM RIGHT
430
ORNAMENTAL TRIM RIGHT
435
SYMBOL STRIP
440
COVER AUDIO/COMAND CONTROL PANEL
440
COVER AUDIO/COMAND CONTROL PANEL
450
PASSENGER AIRBAG , M 20140331 L 20140331 A 20140326
450
PASSENGER AIRBAG , M 20140331 L 20140331 A 20140326
460
NUT BRACKET TO BODY SHELL M6
470
HEXALOBULAR BOLT FASTENING BRACKET LEFT M6X20
470
BOLT HINGE TO TRUNK LID M6X16
480
KNEE AIRBAG
490
NUT EXPANSION TANK TO WHEELHOUSE
495
HEXALOBULAR BOLT SPLASH GUARD TO FENDER M6X20
500
GUIDE SIGN ARABIC/ENGLISH/FRENCH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
STICKER NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN ITALIAN, ENGLISH
500
GUIDE SIGN IN SWEDISH, ENGLISH
500
GUIDE SIGN IN SPANISH, ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN CHINESE, ENGLISH
500
GUIDE SIGN IN MALAYSIAN, ENGLISH
500
GUIDE SIGN IN SLOVAKIAN, ENGLISH
500
GUIDE SIGN ENGLISH
500
GUIDE SIGN IN RUSSIAN, ENGLISH
500
GUIDE SIGN IN FRENCH, ENGLISH
500
GUIDE SIGN IN GREEK, ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN POLISH, ENGLISH
500
GUIDE SIGN IN INDONESIAN, ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN PORTUGUESE, ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN DUTCH, ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN TURKEY/ENGLISH
500
GUIDE SIGN IN HUNGARIAN / ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
500
GUIDE SIGN IN KOREAN, ENGLISH
500
GUIDE SIGN IN DANISH, ENGLISH
500
GUIDE SIGN IN FINNISH, ENGLISH
500
GUIDE SIGN IN CZECH, ENGLISH
500
GUIDE SIGN IN JAPANESE, ENGLISH
500
GUIDE SIGN IN GERMAN, ENGLISH
500
GUIDE SIGN IN PORTUGUESE/BRAZILIAN, ENGLISH
500
INFORMATION LABEL NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
510
GUMMED LABEL CO-DRIVER'S SIDE
520
SUN SENSOR AT INSTRUMENT PANEL
530
AIR DUCT GLOVE COMPARTMENT
540
INS. PANEL INSULATION WINDSHIELD
545
INS. PANEL INSULATION FIRE WALL
550
COVER, FOOTWELL BOTTOM RIGHT
550
COVER, FOOTWELL BOTTOM RIGHT
555
INTERIOR LAMP UNDER SUN VISOR, J 42086420061222
560
BULBTO A 6955407048/7148,3825400311/0411
565
LAMP HOLDER INTERIOR LAMP 12V-5W, J 42086420061222
580
SHEET METAL SCREW COVERING TO CAB 4.2X19
580
TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X19
610
GUIDE SIGN NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
900
ELECTRICAL WIRING HARNESS PASSENGER AIRBAG, IGNITION SQUIB 1 R12/4, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
900
ELECTRICAL WIRING HARNESS PASSENGER AIRBAG, IGNITION SQUIB 2 R12/5, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
910
ELECTRICAL WIRING HARNESS REAR LEFT BELT TENSIONER R12/6, ALSO ORDER: TERMINAL BLOCK 2 X A 001 546 99 41, CABLE TIE5 X A 002 997 24 90
915
CLUTCH ILLUMINATION AIR NOZZLE, RIGHT 2-PIN MQS,E10/3
920
CLUTCH ILLUMINATION AIR NOZZLE, RIGHT 2-PIN MQS,E10/3
925
CLUTCH ILLUMINATION AIR NOZZLE, RIGHT 2-PIN MQS,E10/3
930
CLUTCH HUMIDITY AND TEMPERATURE SENSOR 3-PIN MQS,B82
935
CLUTCH RIGHT REAR SEAT BACKREST LOCK SWITCH 3-PIN MQS,S54/8
940
CLUTCH RIGHT REAR SEAT BACKREST LOCK SWITCH 3-PIN MQS,S54/8
945
CLUTCH SEPARATION POINT, TEMPERATURE SENSOR 4-PIN MQS,X15/12
