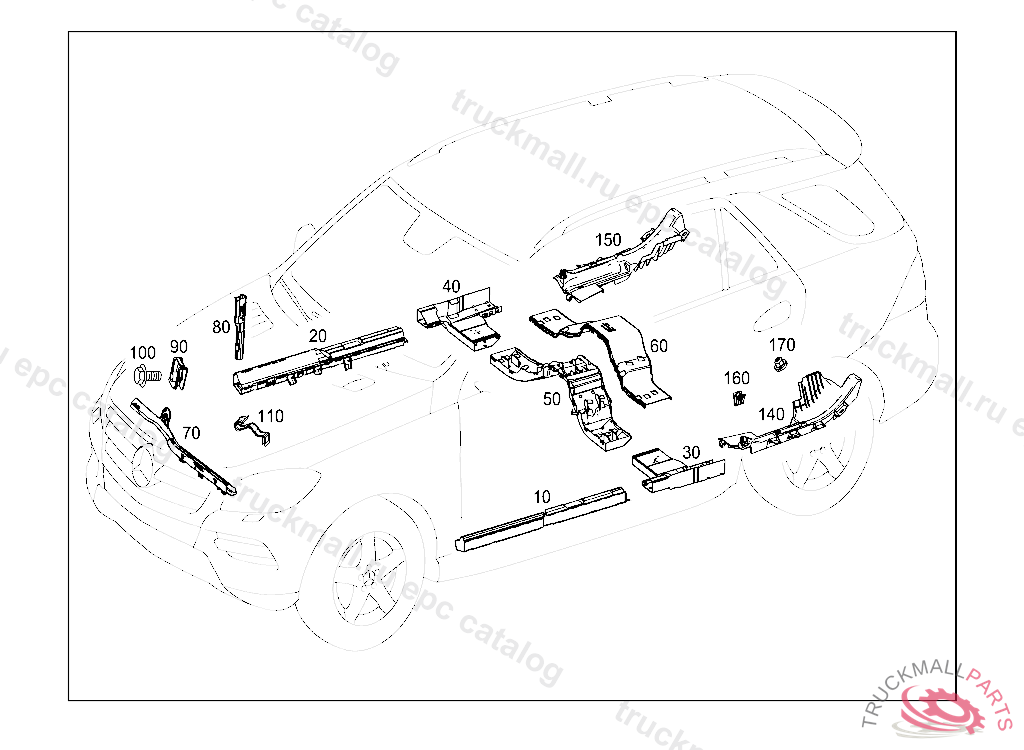

ML 300 4MATIC - 166.055 - 82 ELECTRICAL SYSTEM
Поз.
Артикул
Описание
10
CABLE DUCT FRONT LEFT
20
CABLE DUCT FRONT RIGHT
30
CABLE DUCT CENTRAL LEFT
40
CABLE DUCT CENTRAL RIGHT
50
CABLE DUCT TRANSVERSE DUCT,BOTTOM
60
CABLE DUCT COVER TRANSVERSE DUCT,TOP
70
CABLE DUCT FRONT
80
CABLE DUCT FRONT
90
LOCK NUT. SPRING NUT STEP TO ENTRANCE
100
HEXALOBULAR BOLT. SCREW
110
BRACKET AT CABLE DUCT
140
CABLE DUCT REAR LEFT
150
CABLE DUCT REAR RIGHT
160
RETAINING CLAMP PANELING TO RIGHT B-PILLAR
170
NUT CONTROL UNIT FIXTURE
