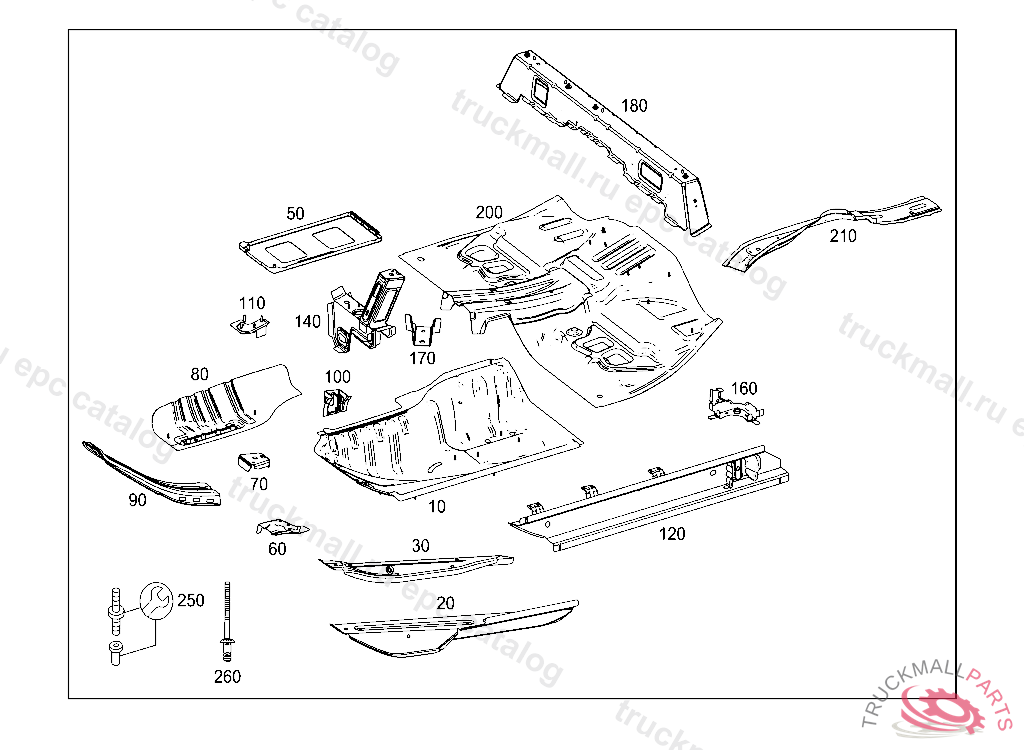

Поз.
Артикул
Описание
10
BOTTOM RIGHT FRONT
10
BOTTOM LEFT FRONT
20
SUPPORT RIGHT
20
SUPPORT LEFT
30
REINFORCEMENT FRONT BOTTOM RIGHT
30
REINFORCEMENT FRONT BOTTOM LEFT
50
FRAME BATTERY FRAME
60
REINFORCEMENT INSIDE RIGHT
70
REINFORCEMENT FRONT INSIDE, RIGHT
80
TAKE-UP DEVICE LEFT
80
TAKE-UP DEVICE RIGHT
100
CONSOLE FRONT INSIDE RIGHT
100
CONSOLE FRONT INSIDE LEFT
110
BRACKET RIGHT
120
SUPPORT LEFT
120
SUPPORT RIGHT
140
CONSOLE RIGHT
140
CONSOLE LEFT
160
BRACKET RIGHT
160
BRACKET LEFT
170
STANCHION BOTTOM RIGHT
180
CROSSMEMBER REAR SEAT REAR SEAT BENCH
200
FLOOR UNDER REAR SEAT REAR SEAT BENCH
210
STRIKING PLATE RIGHT REAR SIDE MEMBER
210
STRIKING PLATE LEFT REAR SIDE MEMBER
250
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
260
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
